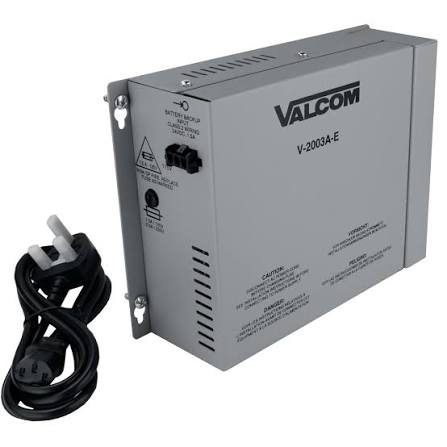

VALCOM V-2003 3-ZONE CONTROLLER

VALCOM V-2003 3-ZONE CONTROLLER

£515.11 GBP
Sale price: £515.11 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.

Flexible Multi‑Zone Paging Control

In stock, 1 unit
EAN: 799111001227
SKU: V-2003A-E
Vendor: Valcom
Order within xx hours for delivery on
Quantity
  • Product Type: 3‑Zone Paging / Page Control Unit
  • Model: Valcom V‑2003 (also designated V‑2003A / V‑2003A‑E)
  • Zones Supported: Up to 3 separate paging zones
  • Page Type: One‑Way Paging & All‑Call
  • Access Methods: Loop start, ground start, or page port
  • Dialing: Pulse & DTMF zone dialing
  • Built‑In Tones: Steady tone, warble tone, alert tones
  • Background Music Input: Yes (muted only in active zone)
  • Emergency Page Override: Yes
  • Integrated Power Supply: Yes (for one‑way amplified speakers)
  • Battery Backup Input: Supported (e.g., VPB‑260)**
  • Compliance: UL, CSA, CE
  • Dimensions: Approx. 7.10″ × 10.00″ × 3.00″
  • Weight: Approx. 4.1 lbs (1.86 kg)
  • Valcom V‑2003 3‑Zone Paging Controller
  • Power Cable / Integrated Power Supply

Overview

The Valcom V‑2003 3‑Zone Controller is an analog page control unit designed to interface with telephone systems, key systems, or dedicated paging systems to deliver audio announcements across up to three distinct speaker zones. Featuring integrated power, it supports one‑way paging and all‑call functionality, allowing announcements to all zones simultaneously or to individual zones individually. Built‑in warble and steady tones provide alert or page signaling, while the emergency override allows priority messages to interrupt normal paging. The controller accepts background music input that mutes in the active zone only and can be expanded to support more zones if needed. With compatibility for loop start, ground start, or contact closure start, and support for pulse and DTMF dialing, it provides flexible access options for diverse environments.

Technical Features
  • Supports three independent paging zones
  • One‑way paging with all‑call capability
  • Emergency page override for priority messages
  • Integrated single/warble/alert tone generators
  • Background music input with zone mute
  • Loop start, ground start, or contact closure access
  • Pulse & DTMF dialing for zone selection
  • Expandable with additional controllers
  • Battery backup support for power failure resilience
  • Built‑in power for speaker amplifiers
