Fanvil i56A

Fanvil i56A

£255.06 GBP
Sale price: £255.06 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Operating System: Android 9.0 OS
  • Display: 10.1 Inch Colour Touch Screen
  • Connectivity: Built in 2.4G/5G Wi-Fi and Bluetooth 5.0
  • Features: PoE, HD Voice, 6 SIP Lines
In stock, 16 units
EAN: 6937295602432
SKU: fanvil-i56A
Vendor: Fanvil
Order within xx hours for delivery on
Quantity
  • Android 9.0 OS
  • 10.1 Inch Colour Touch Screen
  • HD Voice with Built in 1W Double Speakers with AEC
  • Supports Visual Intercom and Remote Access Control
  • Real-Time Monitor of the Door Phone and Cameras
  • Built-in 2.4G/5G Wi-Fi and Bluetooth 5.0
  • 1 Pair of RS-485 Interfaces
  • 8 Alarm Input Interfaces and 2 Short Circuit Output Interfaces
  • Wall Mounted and Desktop Installation Methods (with the Desktop Stand)
  • Compatible with Major Platforms - 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc
  • Stylish and Simple

1 x Fanvil i56A

Datasheet

Overview

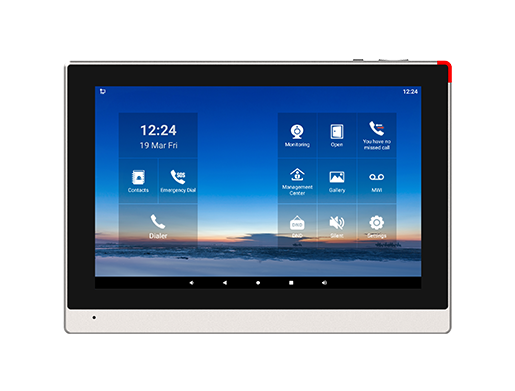

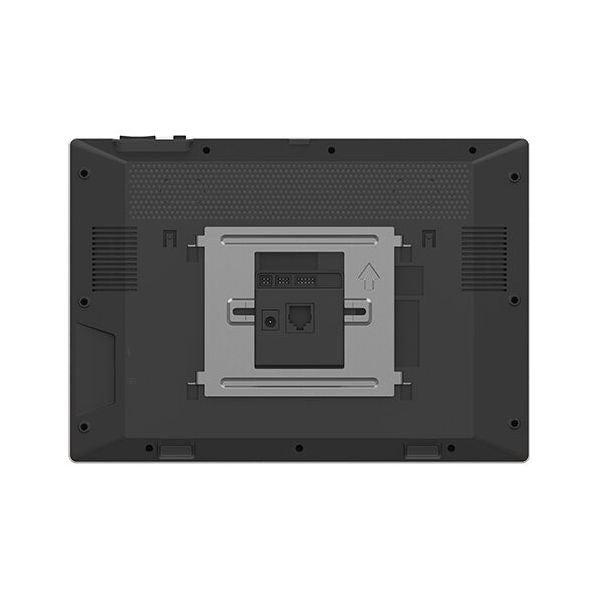

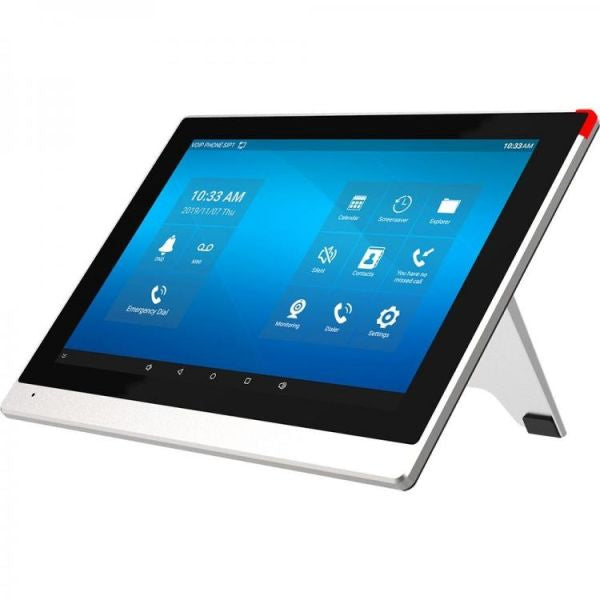

The Fanvil i56A is a 10.1 inch Colour Touch Screen Indoor Station with built-in Bluetooth 5.0 and 2.4G/5G Wi-Fi, integrated with Micro USB and TF interface. Based on Android 9.0 Operating System, the interface operation is smooth and intelligent. It is mainly used in residential areas, office buildings and other places for receiving calls and communicating through the door phone and needing to open the door remotely. It can provide reliable security assurance and easy access control service for users, creating a safe and comfortable environment. It can be connected to alarms and other intelligent security devices via rich interfaces.

Technical Features
  • Keys: 2 (Power, Volume +/-)
  • 10 Pin Cable: x1
  • 6 Pin Cable: x1
  • 4 Pin Cable: x1
  • Wall-Mount Bracket: x1
  • Screws Kit: x1
  • RJ45 Interface: x1
  • RS485 Interface: x1
  • Micro USB Interface: x1
  • TF Slot: x1
  • Embedded Short Circuit Output Interface: 2
  • Relays: 2 - MAX DC30V / 2A, AC125V / 0.5A
  • Alarm Input Interface: x8
  • Power: DC12V/1A or PoE
  • Housing Material: ABS
  • Installation: Wall Mountable, Desktop
