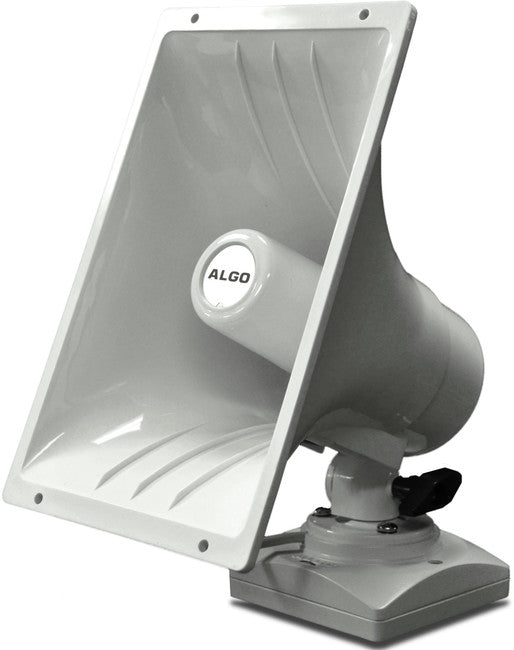

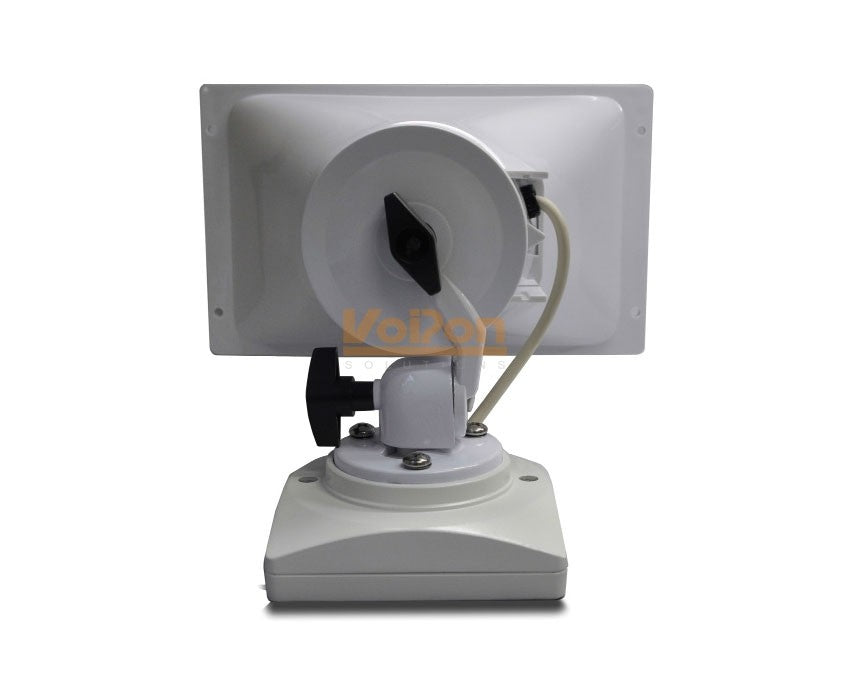

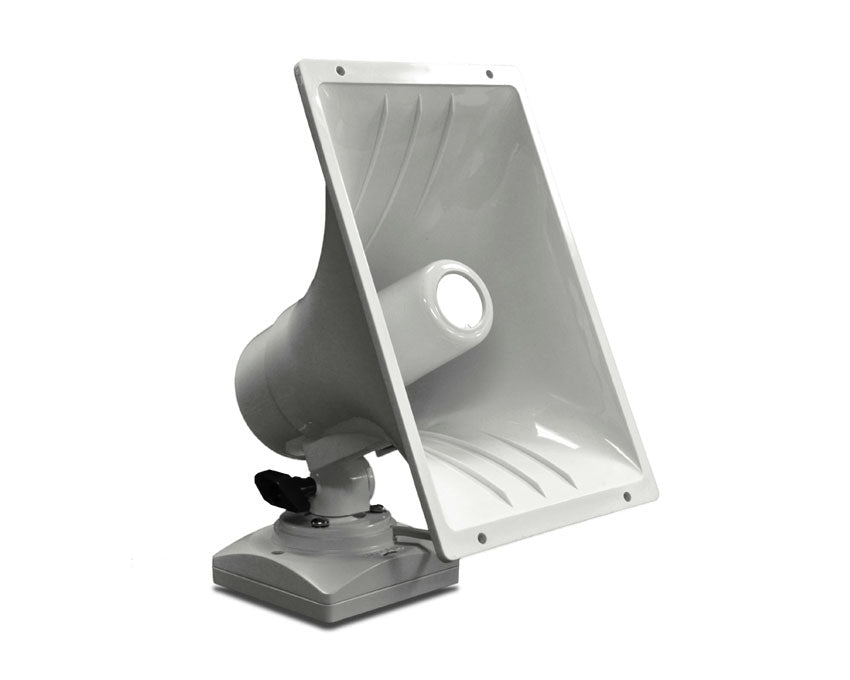

Algo 8186 SIP Horn Speaker

Algo 8186 SIP Horn Speaker

£468.74 GBP
Sale price: £468.74 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
Features
  • Wideband G.722 codec support for HD Voice
In stock, 12 units
EAN: 8186
SKU: Algo-8186
Vendor: Algo
Order within xx hours for delivery on
Quantity

Features

  • Wideband G.722 codec support for HD Voice
  • Multicast for cost effective scalability
  • Internal memory for uploaded WAV files or recorded messages
  • Dual SIP extensions for page or notifications
  • PoE (Power over Ethernet) / IP66 rated
  • Mix with any number and model of Algo speakers, strobes and/or paging adapters using multicast (e.g. 8128, 8180, 8186, 8188, 8301, 8373) for a complete voice paging system
  • Syn-Apps SA-Announce
  • SIP compatibility with all leading UC vendors including: Avaya, Broadsoft, Cisco, Digium/Asterisk, Mitel, Metaswitch, NEC, and Polycom to name a few
  • Algo 8186 SIP Horn Speaker unit
  • Mounting plate
  • Gasket set (for weatherproof installation)
  • Two stainless steel mounting plate screws
  • I/O screwdriver (flat head screwdriver)
  • Quick start manual/Getting Started Sheet

datasheet

Overview
The PoE 8186 SIP horn is an outdoor-rated IP speaker for voice paging, emergency alerting, and loud ringing applications. This IP speaker is also a fully compliant 3rd party SIP endpoint.

Technical Features
  • Power Input 48 V PoE IEEE 802.3af Class 0 (Max 12.95 W - Idle nominal 2.0 W)
  • Speaker Double re-entrant horn speaker, 11" x 6 5/8" (30cm x 16.8cm) rectangular.
  • Audio Codecs G.711 A-law, G.711 u-law, G.722, Polycom Group Page
  • SIP Registrations Page (50) or Ring/Alerting (10) extensions
  • Multicast Receive or transmit
  • Server Redundancy Primary, secondary, tertiary
  • Processor Linux OS ARM Cortex-A8 32-Bit RISC Processor
  • Frequency Response 350 – 9,000 Hz (-10 dB)
  • Sensitivity 110 dBA 1m/1W (1 kHz)
  • Dispersion Angle: 76H x 51V (2 kHz -6dB); Oriented Vertically 11” tall x 6 5/8” Wide
  • Microphone Electret omnidirectional wideband
  • Audio Delay 1 to 1000 ms selectable for synchronization
  • Audio Processing Filtering, normalization, compression
  • Audio Memory 1 GByte
  • Relay Output Normally open or normally closed. Max rating 30 V 50 mA
  • Relay Input Normally open or normally closed dry contact supervision. Algo 1202 Call Button, Algo 1203 Call Switch, EOL resistor termination.
  • Relay Input Current Draw Detection Thresholds
    • Normally Open (>4mA Active), (<4mA Idle), (N/A Tamper)
    • Normally Open with Supervision (>20mA Active), (4-20mA Idle), (<4mA Tamper)
    • Normally Closed (<4mA Active), (>4mA Idle), (N/A Tamper)
    • Normally Open with Supervision (4-20mA Active), (>20mA Active Idle), (<4mA Tamper)
  • Nominal 12V Source Current limited to 40mA. Typical supervision resistor value = 1k ohm.
  • Configuration Web interface or auto-provisioning server
  • Provisioning TFTP, FTP, or HTTP
  • Supervision SNMP
  • NAT STUN, CRLF Keep Alive
  • Environmental -40 to +122°F (-40 to +50°C); Suitable for outdoor and wet environments when properly installed.
  • Dimensions 11.8" x 6.6" x 10.2" (30cm x 16.8cm x 25.8cm)
  • Mounting Wall, ceiling, or double gang electrical box
  • Aim Adjustment Three axis
  • Weight 6 lb (2.7 Kg)
  • Compliance EN60950:2001, IEEE 802.3-2008, RFC3261, RoHS, CE, FCC Class B, CISPR 22 Class B, CISPR 24, CSA/UL (USA & Canada)
