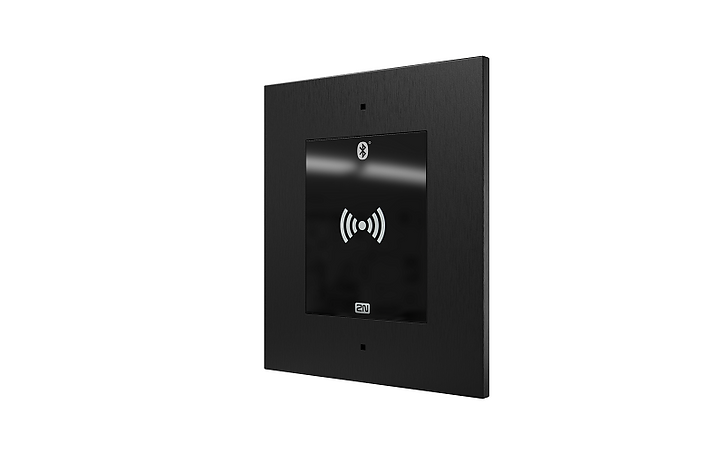

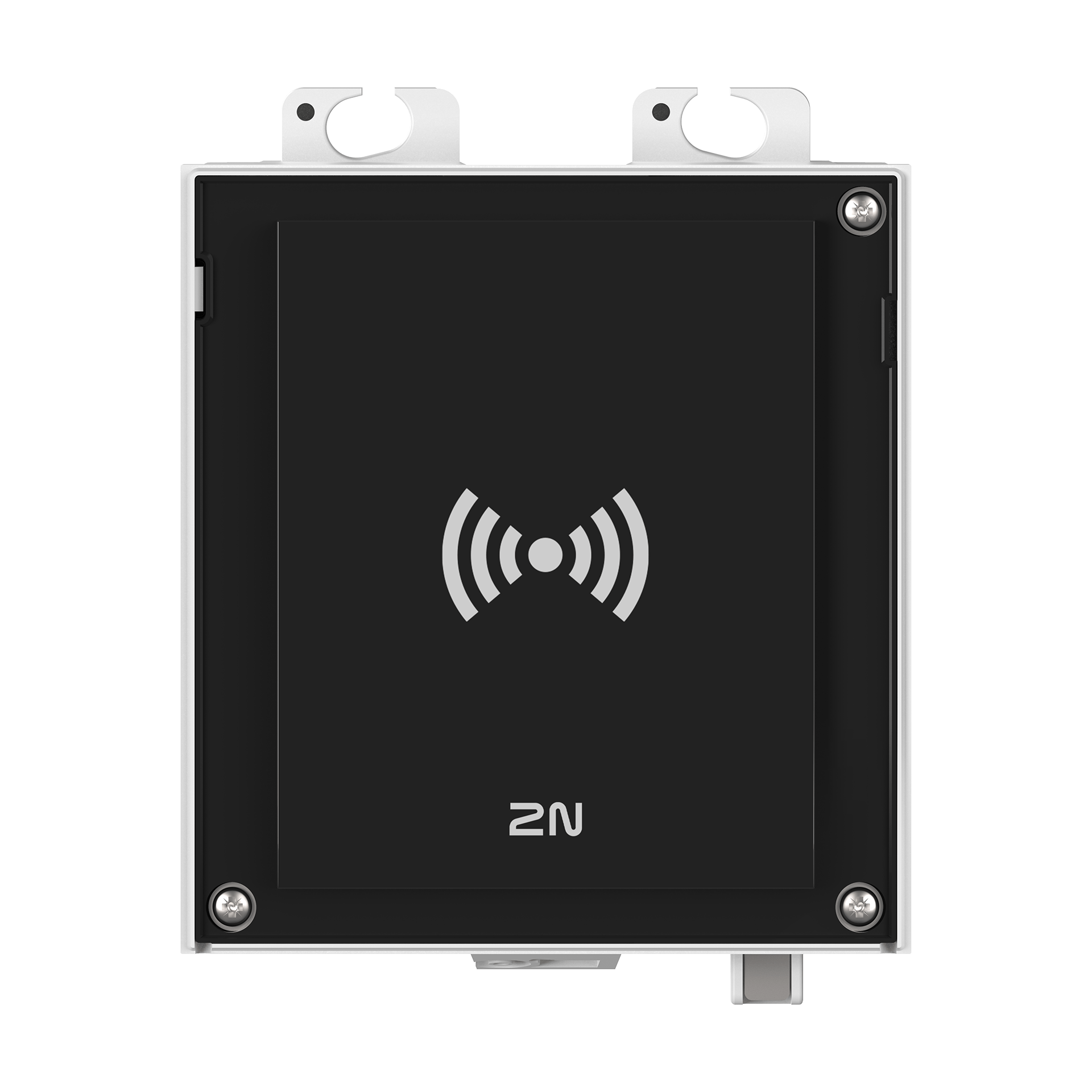

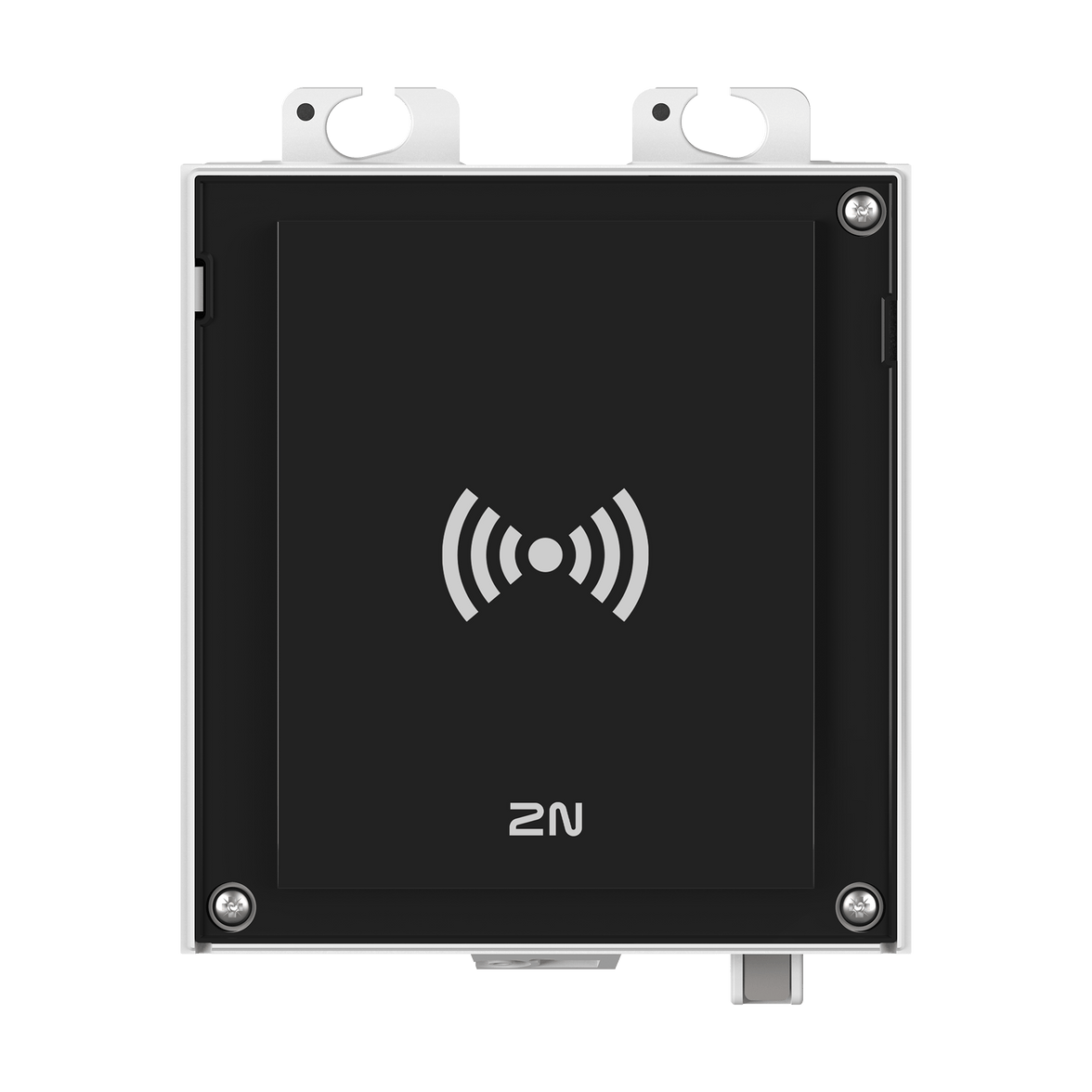

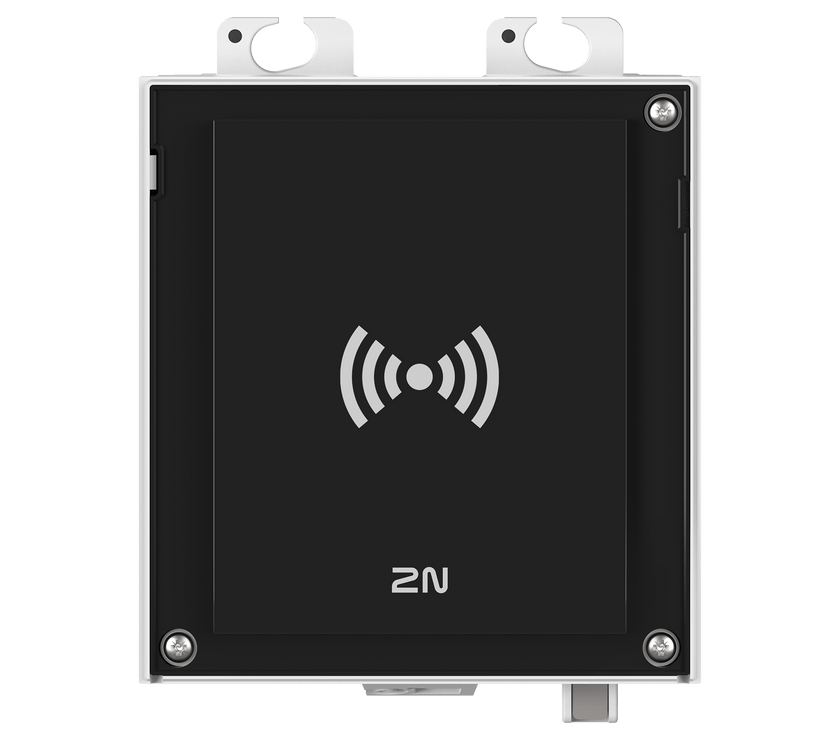

2N 9160344-S Access Unit 2.0

2N 9160344-S Access Unit 2.0

£615.72 GBP
Sale price: £615.72 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Fully IP-based card reader and controller
  • Easy configuration via web browser or Access Commander software
In stock, 3 units
EAN: 8595159515038
SKU: 9160344-S
Vendor: 2N
Order within xx hours for delivery on
Quantity
  • Model Number: 9160344-S
  • Brand: 2N
  • Category: Other Products – Access Control
  • Weight: 300 grams
  • Access Control Type: Access Control Accessories
  • Function: Other Access Control Functions (Overig Toegangscontrole)
  • 2N® Access Unit
  • Brief manual
  • quick installation
  • power supply

Datasheet

Overview

2N, Access Unit 2.0, All-in-One card reader 125 kHz (EM), Secured 13.56MHz, NFC and controller based on TCP/IP, can be used in networks with Helios IP (video) intercoms or as stand-alone , PoE/12VDC.


Technical Features
  • Type: Fully IP-based all-in-one card reader and controller
  • Configuration: Easy setup via web browser or Access Commander software
  • Card Compatibility:
    • 125 kHz cards (EM4100, EM4102)
    • 13.56 MHz cards (Mifare and DESFire CSN)
  • Functionality: Door opening, supports door sensor and security relay
  • Environment: Indoor and outdoor use (IP54 rating)
  • Operating Temperature: -40°C to +60°C
  • Power Supply: PoE (802.3af) or 12VDC / 2A
  • Relay Output: NO/NC contact, max. 30V / 1A
  • Active Switch Output: 8–12VDC / 400mA
  • Inputs: 3 programmable inputs
  • Compatibility: Works with a wide range of access cards and systems
  • Mounting Options: Supports various mounting boxes (flush or surface; accessories sold separately)
