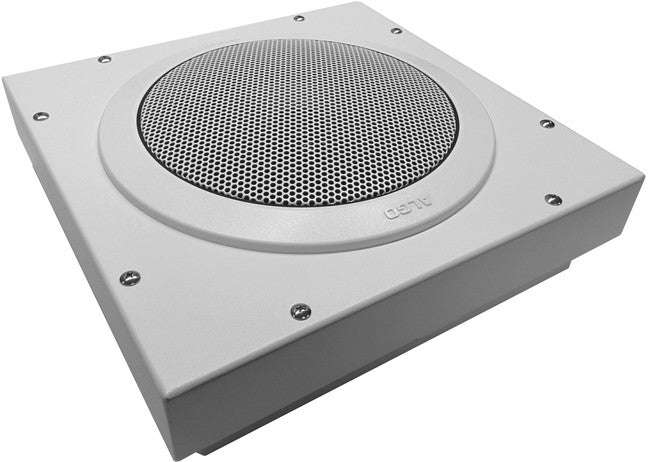

Algo 8189 SIP Surface Mount Ceiling Speaker

Algo 8189 SIP Surface Mount Ceiling Speaker

£486.17 GBP
Sale price: £486.17 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Public address (PA) IP speaker.
In stock, 2 units
EAN: 8189
SKU: Algo-8189
Vendor: Algo
Order within xx hours for delivery on
Quantity
  • Public address (PA) IP speaker.
  • Secure SIP using TLS and SRTP.
  • Multicast scalable.
  • Wideband HD voice for high intelligibility speech.
  • Dynamic volume control responsive to ambient noise levels.
  • Excellent capability for playing background music, supporting Super-Wideband frequency response.
  • Talkback capable speaker.
  • Customise WAV files for emergency notification / alerting and telephone loud ringing.
  • Configuration via user friendly web interface or auto-provisioning.
  • PoE (IEEE 802.3af).
  • Ideal for hallways and common areas in education, retail, hospitality, health care and commercial office spaces.
  • Algo 8189 Speake
  • White trim ring and speaker grill
  • Tool for grill removal and reset
  • Protective wiring cover and screws
  • Pluggable terminal block for relay input and output
  • Getting Started Sheet

datasheet

Overview

The 8189 is identical to the 8188 SIP Ceiling Speaker, however, it is a slimmer design better suited for indoor surface mount ceiling applications required for voice paging and emergency notification / alerting. The 8189 speaker is a PoE SIP compliant endpoint, and does not require an additional amplifier. Common application environments include a school, hospital, retail store and office spaces.

Technical Features
  • Power
    • Power Input: PoE (IEEE 802.3af Class 0) 48V, 12.95W
    • Max Power: 12.95W
    • Idle Power: 2W
  • SIP Extensions
    • 50 Page (Capable of hands-free talkback)
    • 10 Emergency Alert
    • 10 Ring
    • SIP Signalling/Transport Protocols: UDP, TCP, TLS, RTP, SRTP
  • Multicast & Third-Party Compatibility
    • RTP Multicast (Send and Receive 50 Zones)
    • Polycom Group Page
    • Singlewire InformaCast (additional license required)
    • Syn-Apps Revolution
  • Configuration & Provisioning
    • Configuration: Web interface or provisioning server
    • Web Interface: HTTP, HTTPS
    • Provisioning: TFTP, FTP, HTTP, HTTPS
    • DHCP Options 66, 150, 160
    • Reboot via SIP ‘check-sync’
    • Supervision: Compatible with any third-party SNMP monitoring software or the Algo 8300 Controller.
  • Networking
    • Networking: IPv4, DHCP, VLAN
    • Link Layer: LLDP, CDP
    • QoS: DSCP (SIP, RTP, RTCP)
    • NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound
    • Address Resolution: DNS, SRV Record
    • Redundancy: Secondary and tertiary SIP server
    • Time: NTP Server (up to four)
  • Audio
    • Speaker: 6.5″ (16.5 cm) Coaxial with PEI Dome Tweeter. Mica filled polypropylene cone.
    • SPL: 97 dBA at 1m (1 kHz tone)
    • Frequency Response: 55 – 18,000 Hz (-10 dB)
    • Dispersion Angle: 140° (2 kHz -6 dB)
    • Microphone: Omnidirectional – talkback and ambient noise monitoring
    • Audio Codecs: G.711 u-law, G.711 A-law, G.722 Wideband
    • Audio Memory: 1 GByte audio storage
  • Input/Output
    • Relay Input: Normally open or normally closed dry contact supervision using Algo 1202 Call Button, 1203 Call Switch, 1204 Volume Control or EOL resistor termination
    • Relay Output: Max 30 V 50 mA (normally open)
    • Nominal 12V source, current limited to 40mA
    • Typical supervision resistor value = 1k ohm
  • Environmental & Mechanical
    • Environmental: 0 to + 40 °C (32 to 104 °F); 10-95% RH, non-condensing. Dry indoor locations only.
    • Dimensions (Product): 12″x12″x3.38″ (30.5cm x 30.5cm x 8.6cm)
    • Weight (Product): 7 lbs (3.2 kg)
    • Weight (Shipping): 8 lbs (3.6 kg)
