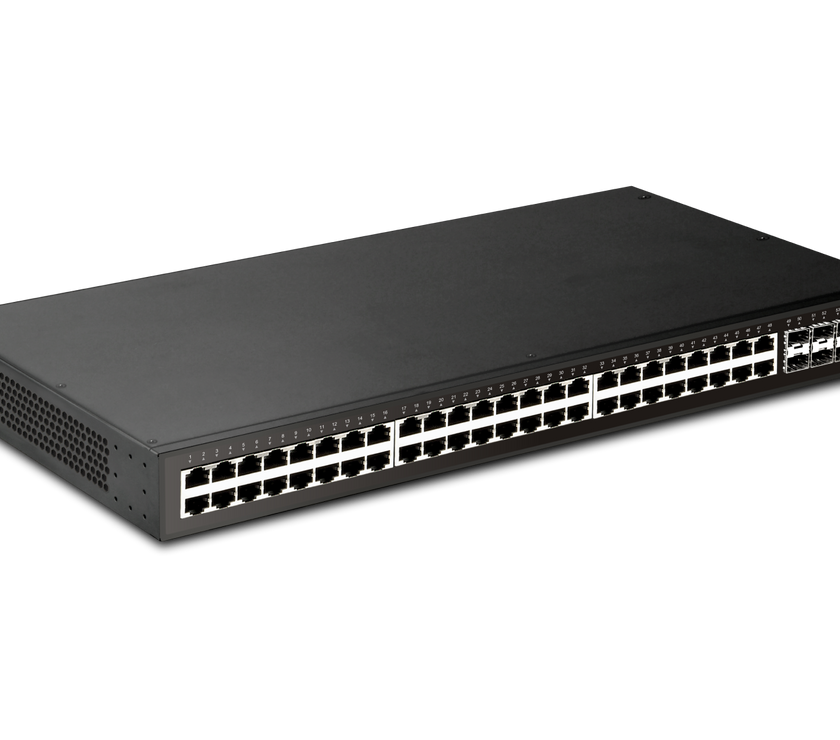

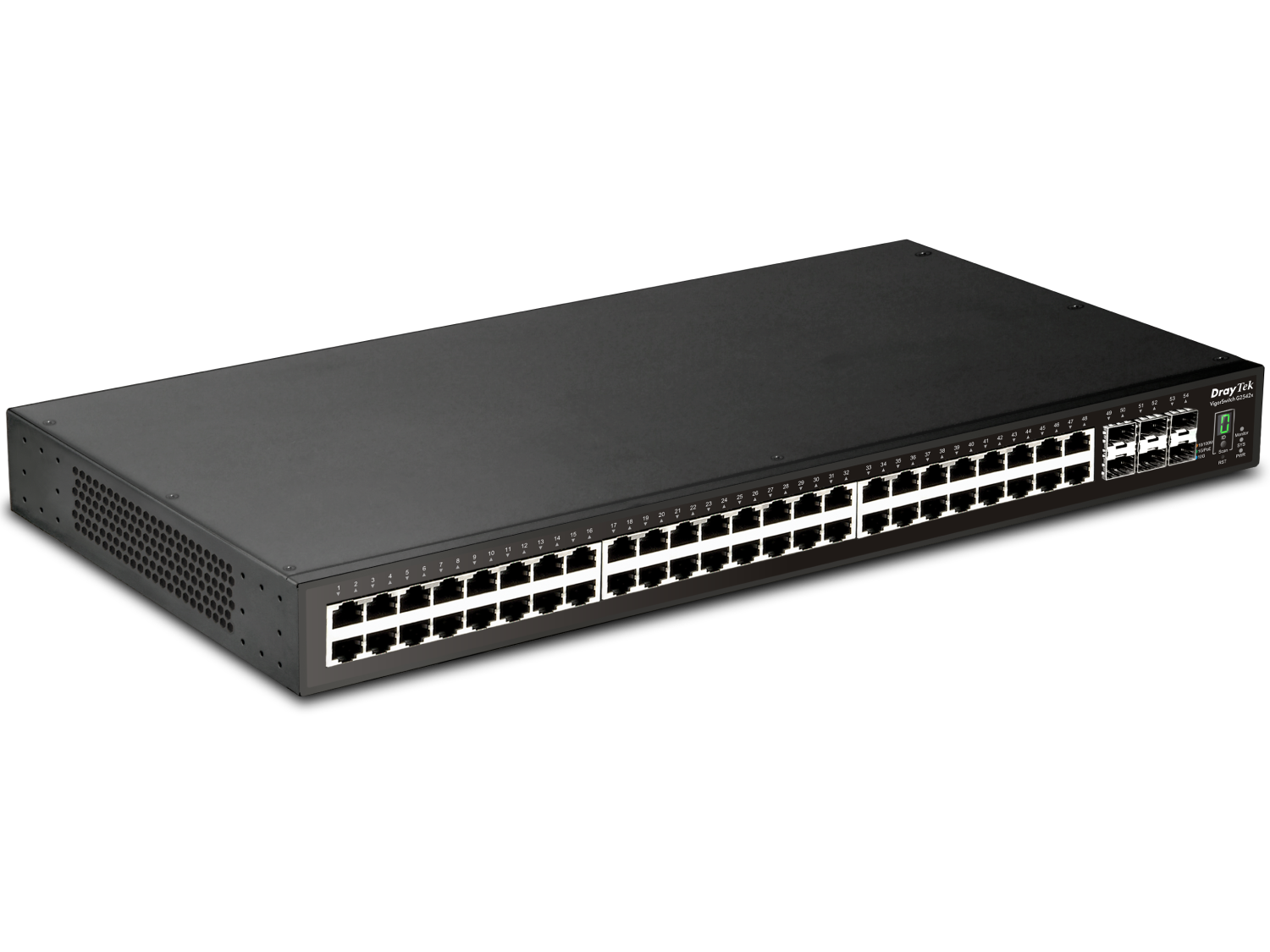

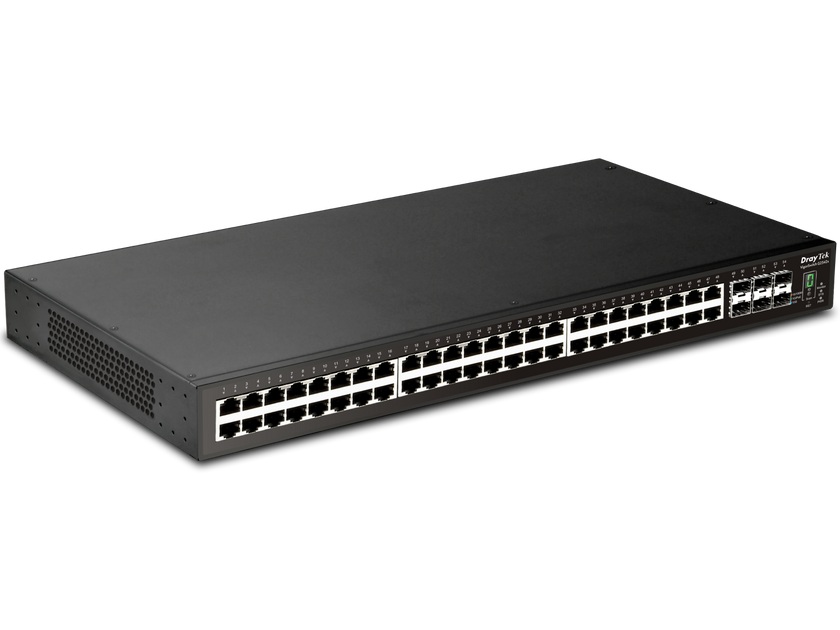

DrayTek VigorSwitch VSG-2542X-K

DrayTek VigorSwitch VSG-2542X-K

£452.57 GBP
Sale price: £452.57 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Provides 10G-capable fiber SFP+ ports
  • Automatically detects VoIP devices
In stock, 30 units
EAN: 4710484747488
SKU: 418599
Vendor: Dray Tek
Order within xx hours for delivery on
Quantity
  • Buffer Size: 16 Mbit
  • Switching Capacity: 216 Gbps
  • Forwarding Rate (64 bytes): 160.7 Mpps
  • MAC Address Table: 32K entries
  • Max. Jumbo Frame: 12 KB
  • L3 Routing Table: Supported

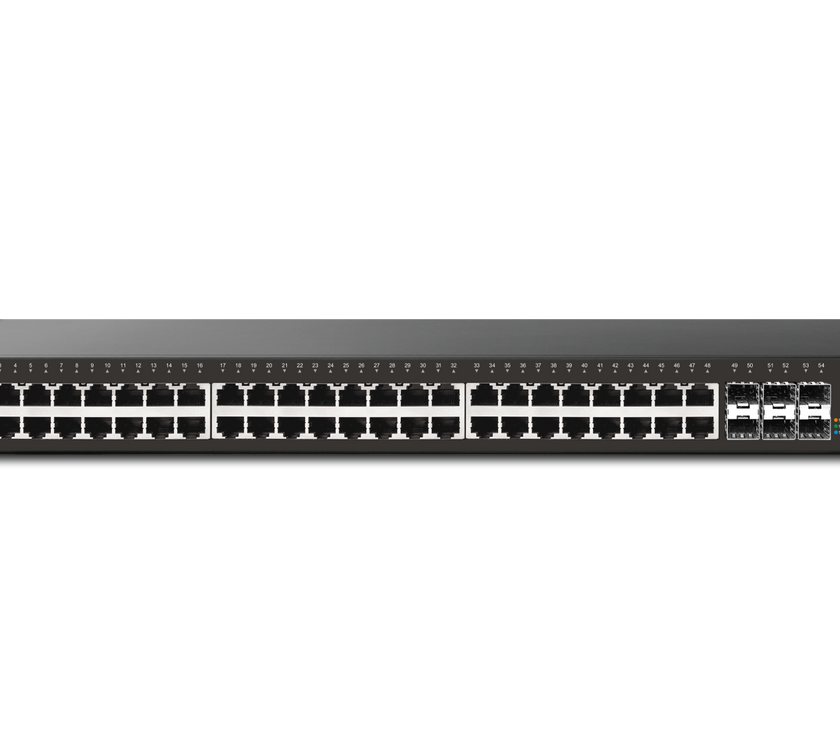

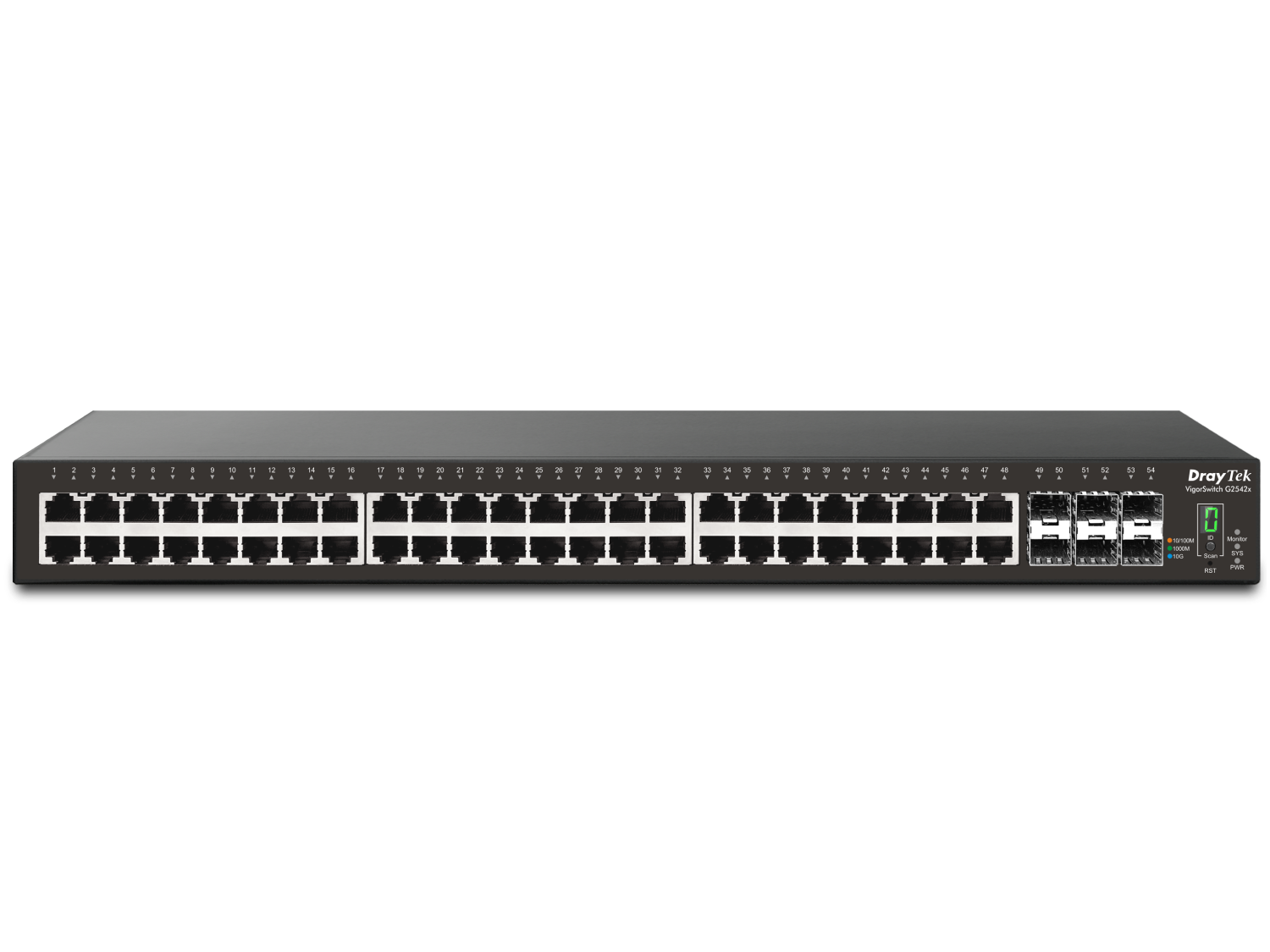

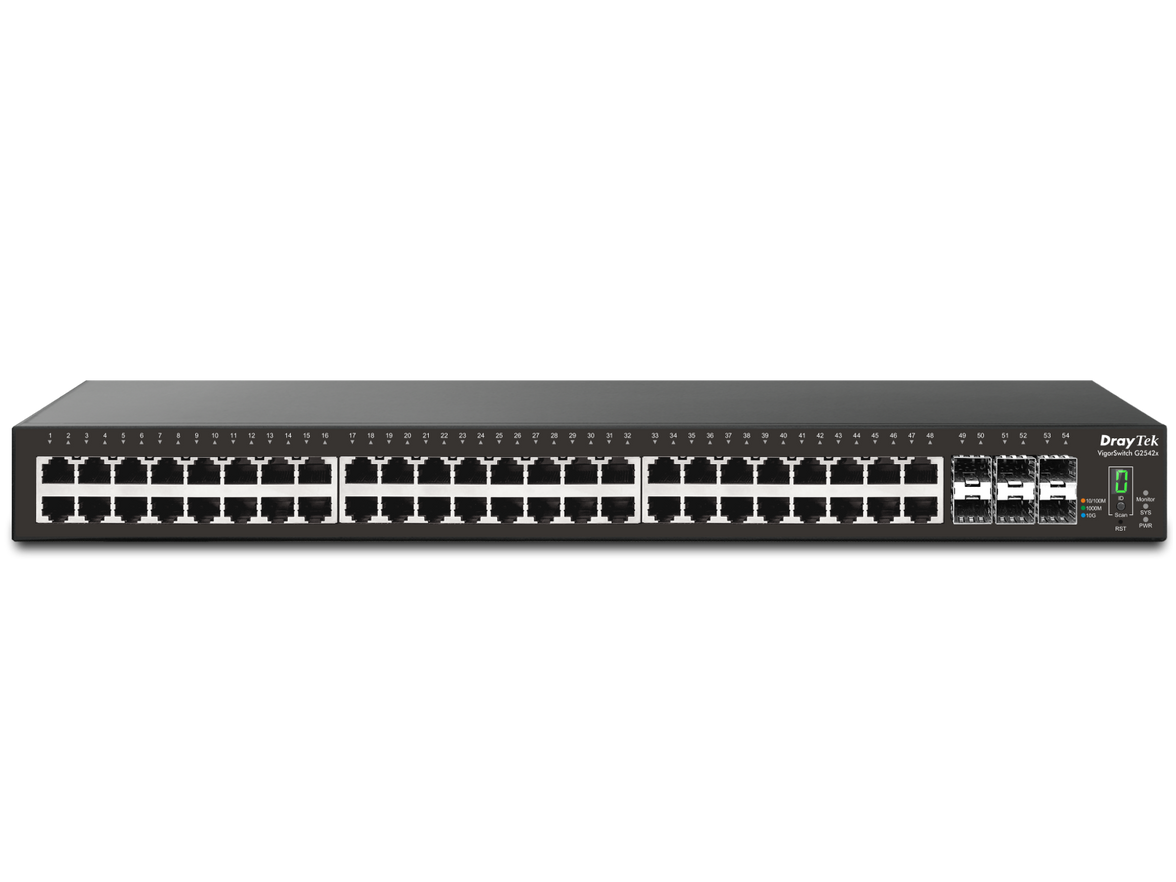

  • 1 GbE Ports: 48
  • SFP+ (10G) Ports: 6

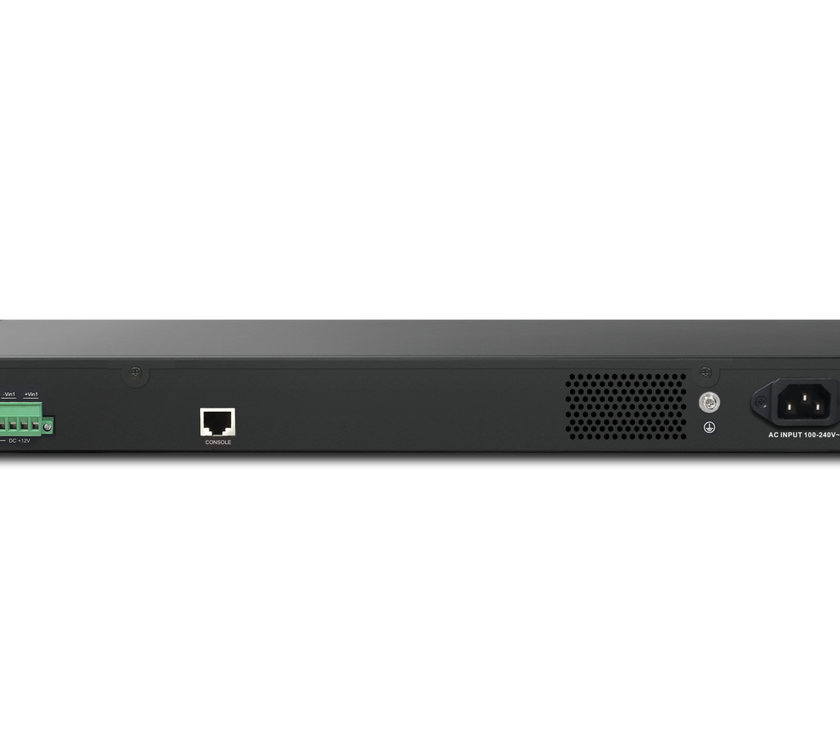

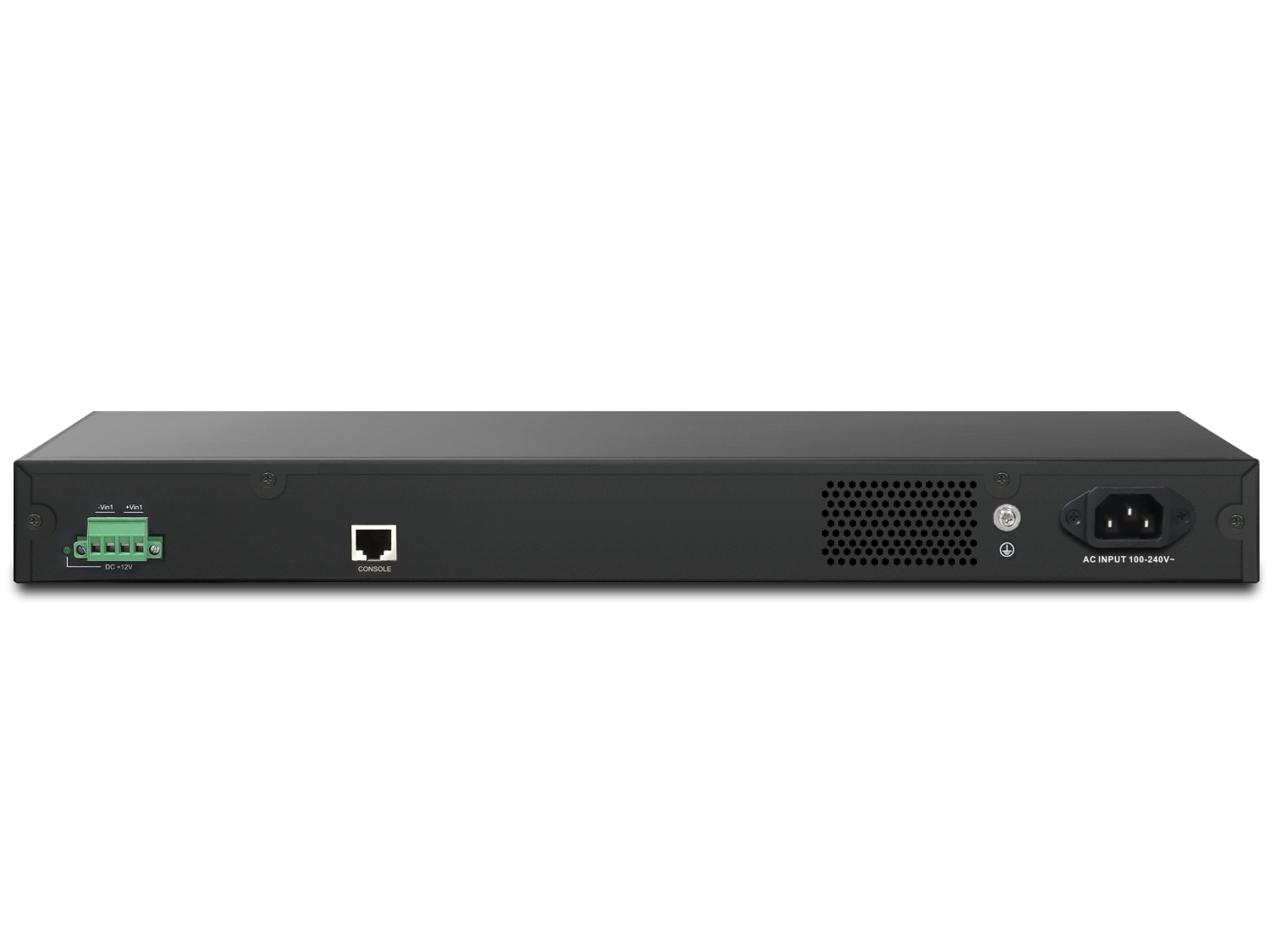

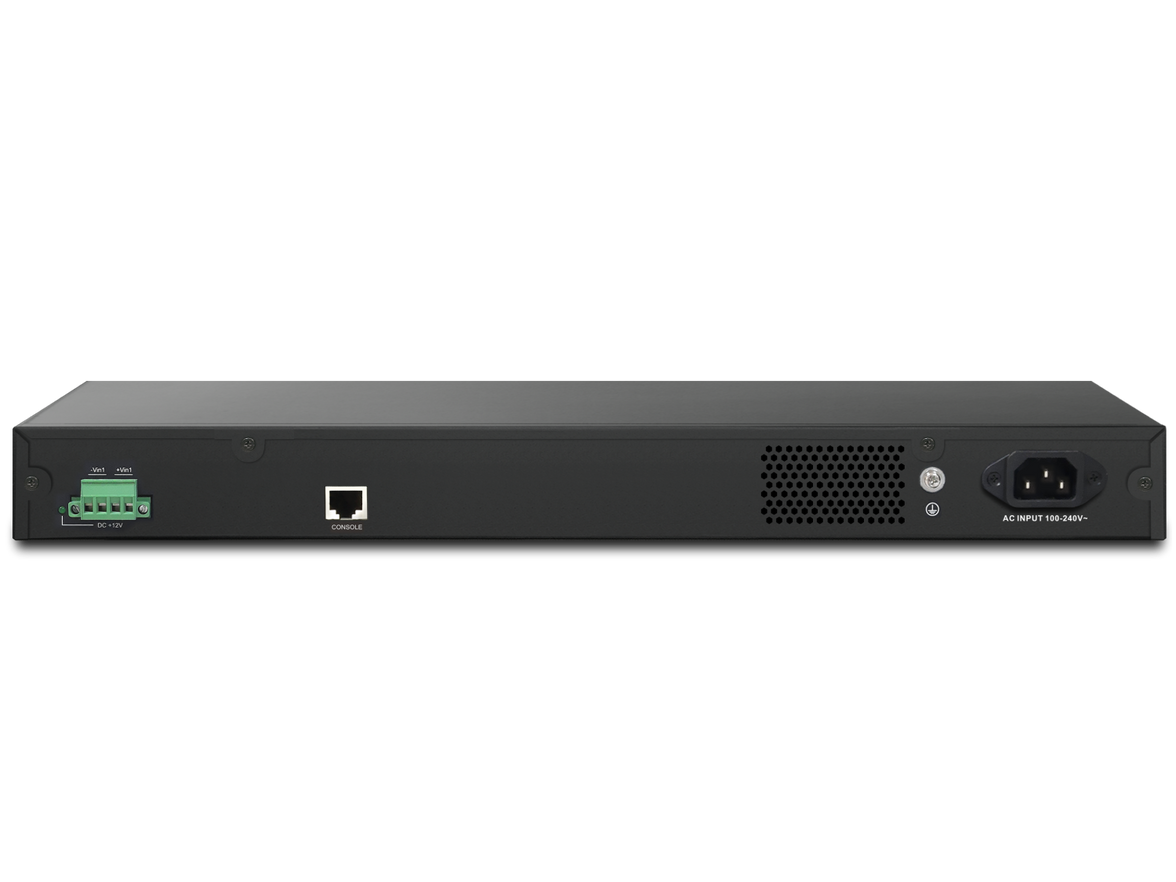

  • Console (RJ-45): 1 port
  • VigorSwitch G2542x
  • Rack Mount Kit
  • Console Cable
  • Power Cord
  • Quick Start Guide

Datasheet

Overview

The DrayTek VigorSwitch G2542x features 48 Gigabit Ethernet ports for LAN and 6 SFP+ 10Gbps fiber links. With advanced Layer 3 capabilities, including DHCP Server and VLAN Routing, the VigorSwitch G2542x optimizes network performance and keep your LAN operating even if the gateway goes offline, making it an excellent core switch for SMEs/SMBs.

Technical Features
  • 10G SFP+: Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to core switches.
  • ONVIF CCTV: Recognizes ONVIF devices, displays surveillance topology, and provides a UI for video streaming and maintenance.
  • Wire-Speed VLAN Routing: Enhances network performance by routing inter-VLAN traffic directly and reducing router load.
  • IPv6 Ready: Supports MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver for modern IPv6 networks.
  • Auto Surveillance & Voice VLAN: Automatically detects IP cameras and phones, tagging traffic for QoS prioritization.
  • Web-Based GUI: Manage and monitor the network easily via a graphical web console showing port and hardware status.
  • IP Conflict Prevention: Prevents IP conflicts from misconfigured or malicious hosts, improving network stability.
  • Multiple Admin Accounts: Supports multiple administrator accounts with two privilege levels for secure management.
  • Access Control: Provides ACL by IP/MAC and 802.1x port access control with RADIUS for host authentication.
  • Central Switch Management: Enables VLAN setup from the router and offers a centralized switch hierarchy view.
  • Quality of Service (QoS): Prioritizes critical traffic using CoS, DSCP, and IP Precedence tagging for better performance.
  • Energy-Efficient Ethernet: IEEE 802.3az compliant to reduce power consumption.
  • LLDP-MED: Automatically detects VoIP devices, simplifies VLAN assignment, and prioritizes voice traffic.
  • Stacking: Allows multiple switches to function as a single unit, improving scalability and management.
