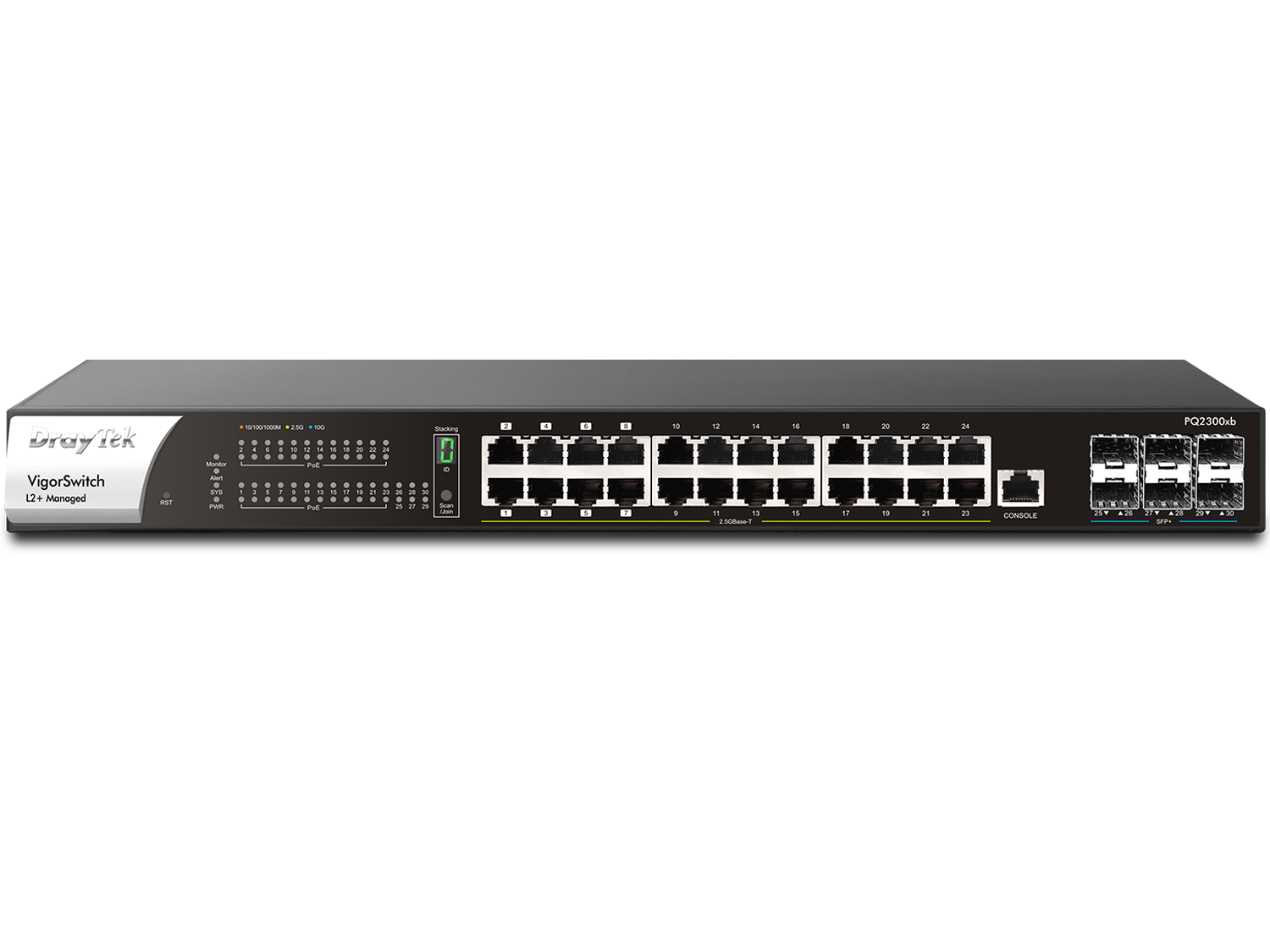

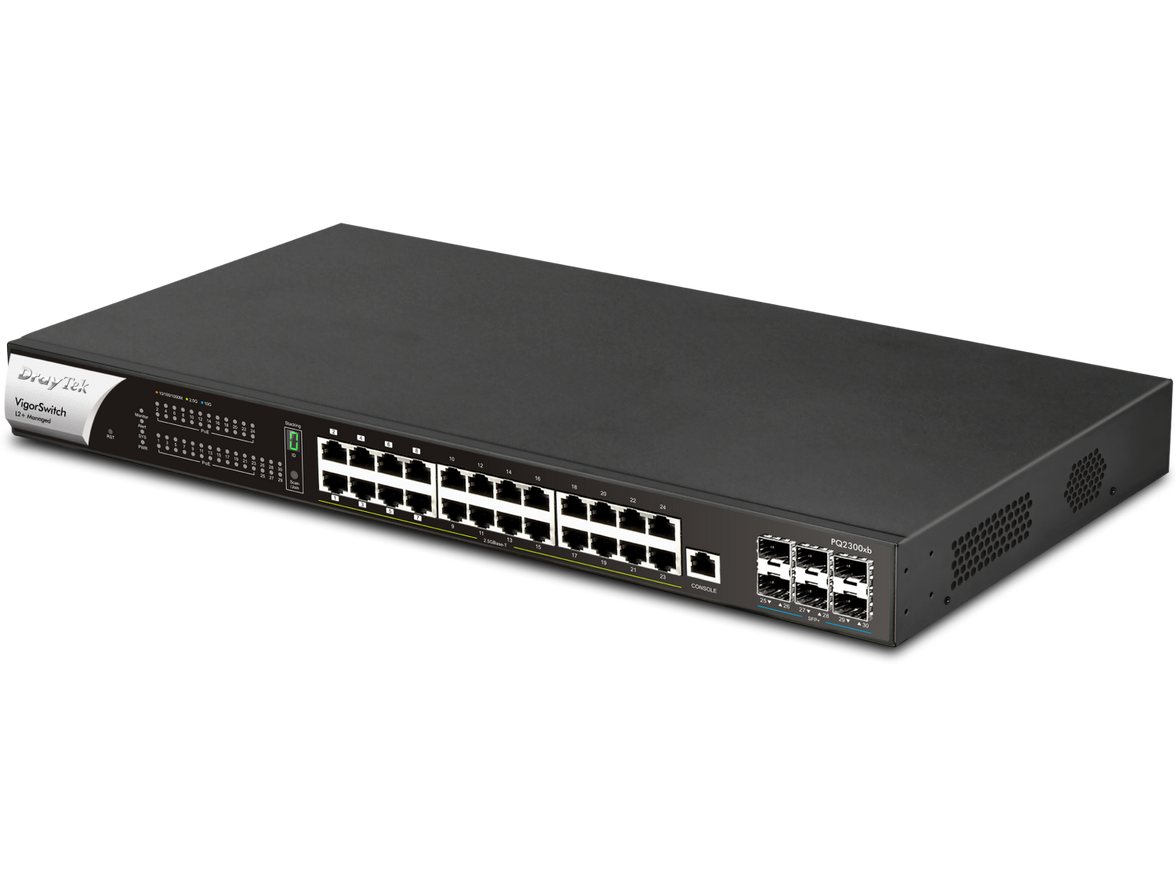

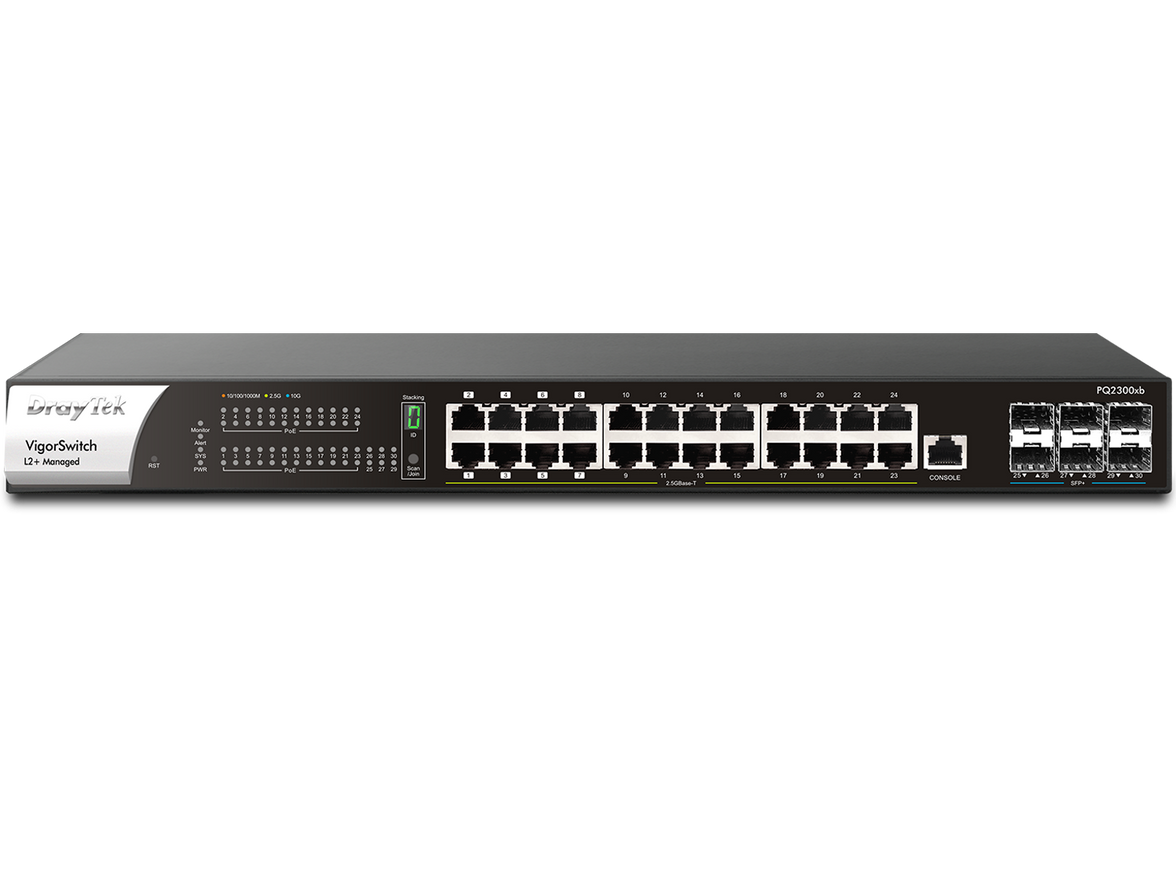

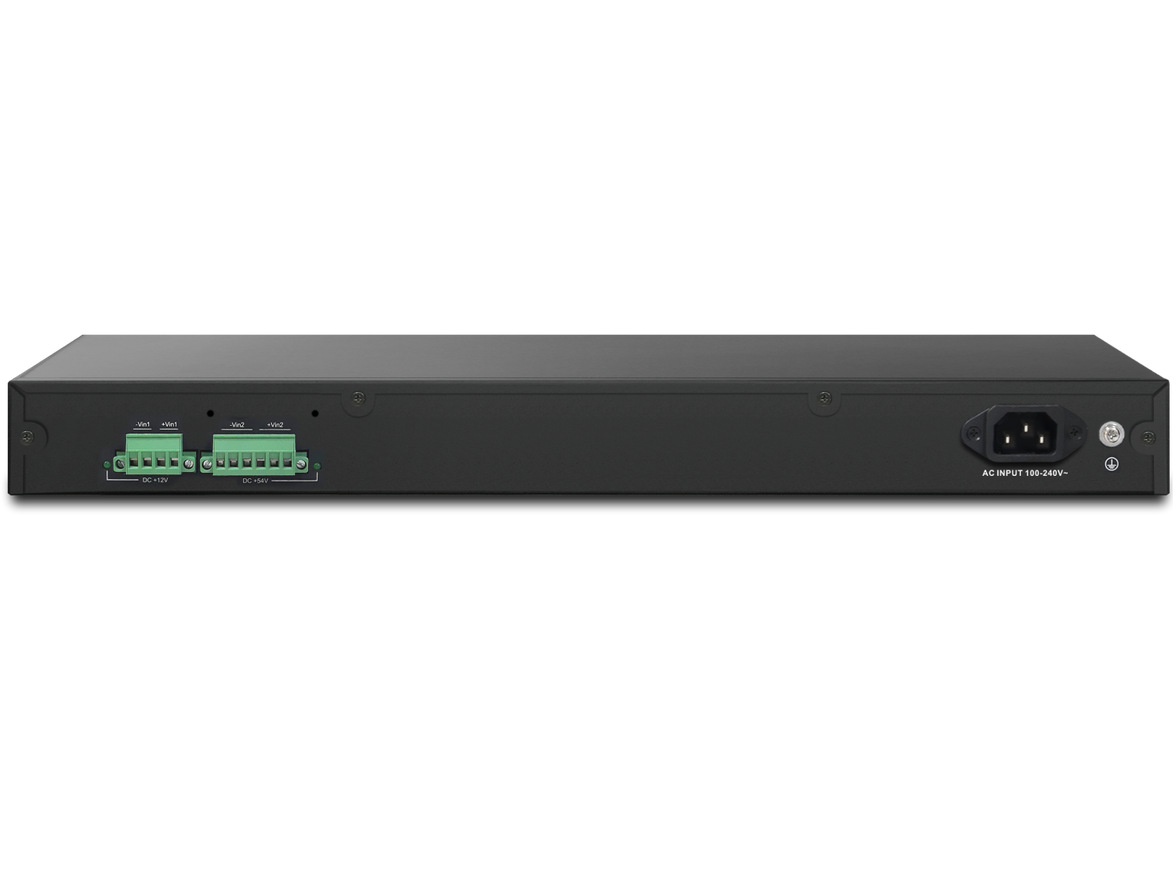

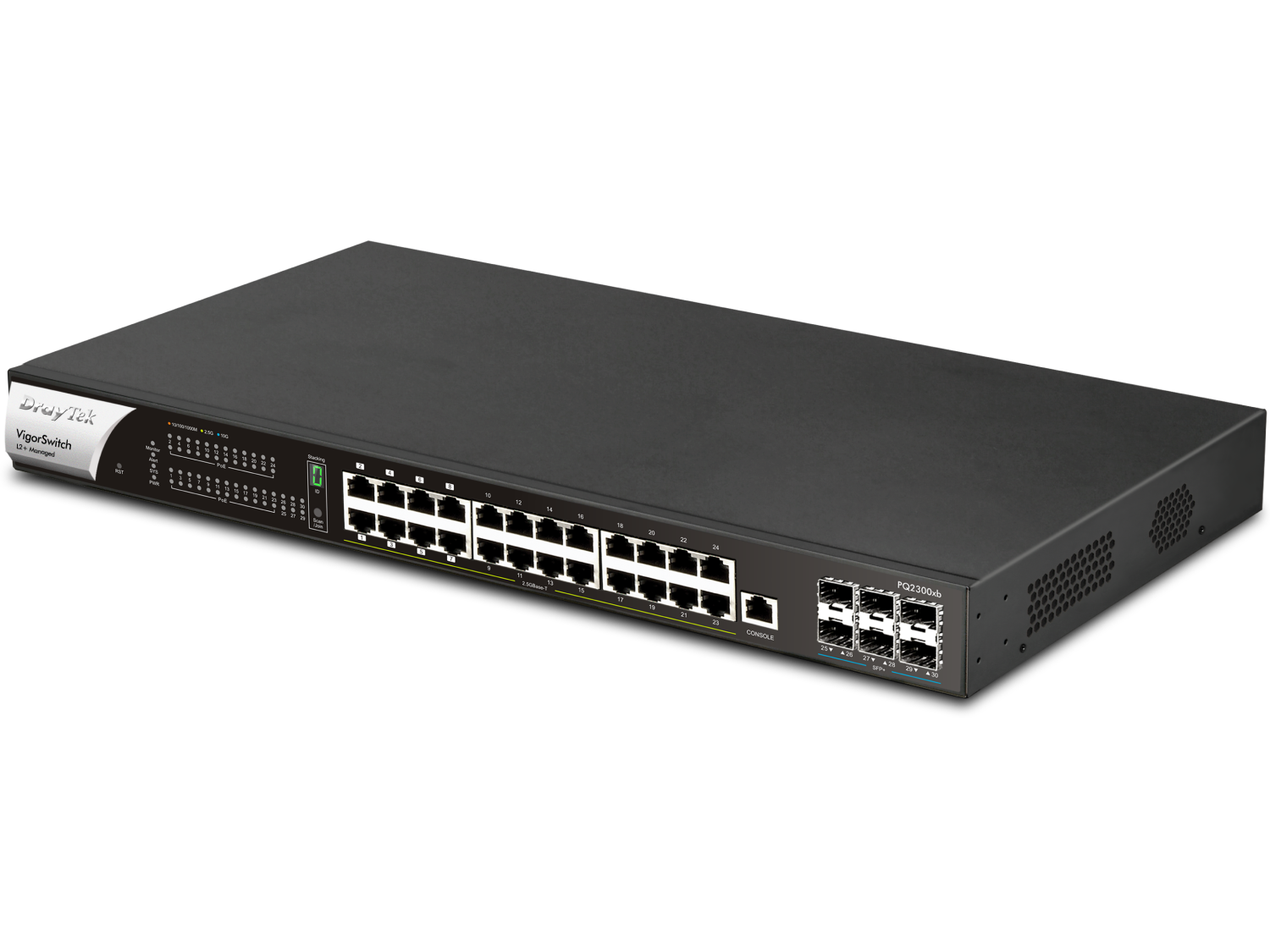

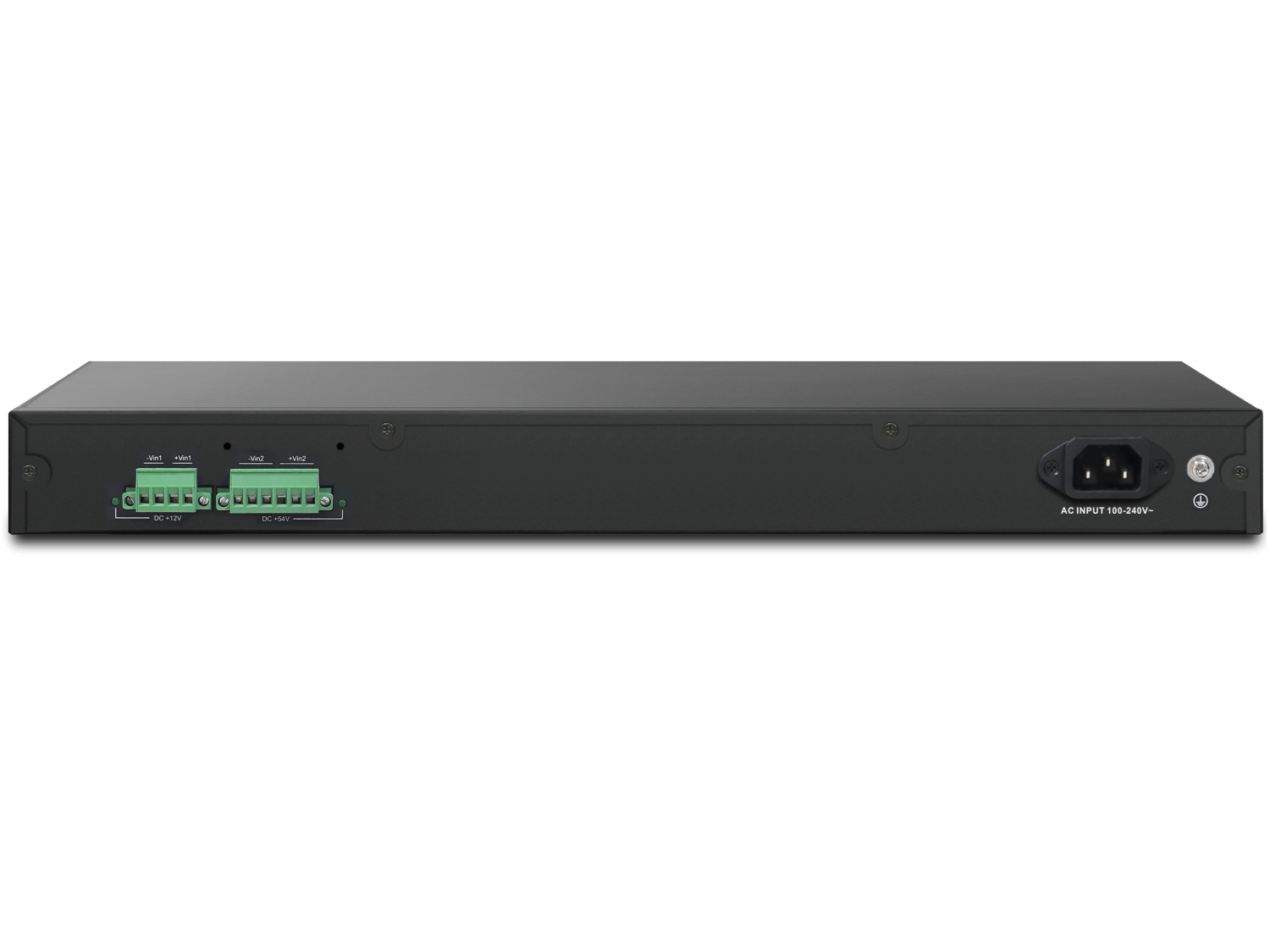

DrayTek VigorSwitch PQ2300XB-K

Name: DrayTek VigorSwitch PQ2300XB-K
Brand: DrayTek
SKU: 418600
Price: 735.9 GBP
Availability: OutOfStock

£735.90 GBP

£735.90 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Central Switch Management
Provides 10G-capable fiber SFP+ ports

Out of stock

EAN: 4710484748683

SKU: 418600

Vendor: DrayTek

Order within xx hours for delivery on

Product Specification

Buffer Size: 16 Mbit
Switching Capacity: 240 Gbps
Forwarding Rate (64 bytes): 178.56 Mpps
MAC Address Table: 32K
Max. Jumbo Frame: 12 KB
L3 Routing Table: —
2.5 GbE Ports: 24
SFP+ (10G): 6
Console (RJ-45): 1

Box Content

VigorSwitch PQ2300xb
Rack Mount Kit
Console Cable
Power Cord
Quick Start Guide

Documents

Datasheet

Technical Features

PoE++ (802.3bt): Delivers up to 90W over one Ethernet cable; supports PoE scheduling for automatic power control.
Quality of Service (QoS): Prioritizes critical traffic using CoS, DSCP, and IP Precedence tags to enhance performance.
Ping Device Check: Monitors device status via ping; on timeout, can power cycle PoE ports and send email alerts.
ONVIF CCTV: Recognizes ONVIF devices, displays surveillance topology, enables video streaming and device maintenance.
2.5GbE: Provides high-performance connectivity for WiFi 6 access points and other Ethernet devices.
IPv6 Ready: Supports MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver for modern network environments.
10G SFP+: Includes 10G-capable fiber SFP+ ports for uplinking or aggregation with core switches.
Web-Based GUI: Simplifies network management through a graphical, web-based console showing port and hardware status.
Wire-Speed VLAN Routing: Routes inter-VLAN traffic directly for improved performance and reduced router load.
Multiple Admin Accounts: Supports multiple admin users with two levels of privilege for secure management.

DrayTek VigorSwitch PQ2300XB-K

£735.90 GBP

£735.90 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

DrayTek VigorSwitch PQ2300xb features 2.5GbE ports for LAN and 10G SFP+ ports for uplink/downlink. When used with WiFi 6 VigorAPs (e.g., VigorAP 962C), the PQ2300xb delivers full WiFi 6 performance to LAN clients. PQ2300xb includes 8 PoE++ ports providing up to 90W per port and 16 PoE+ ports providing up to 30W per port. With a total output of 400W, the PQ2300xb is ideal for integrating more IoT applications, including LED lighting, POS (point of sale) computers, motion sensors, IP cameras, and more.
