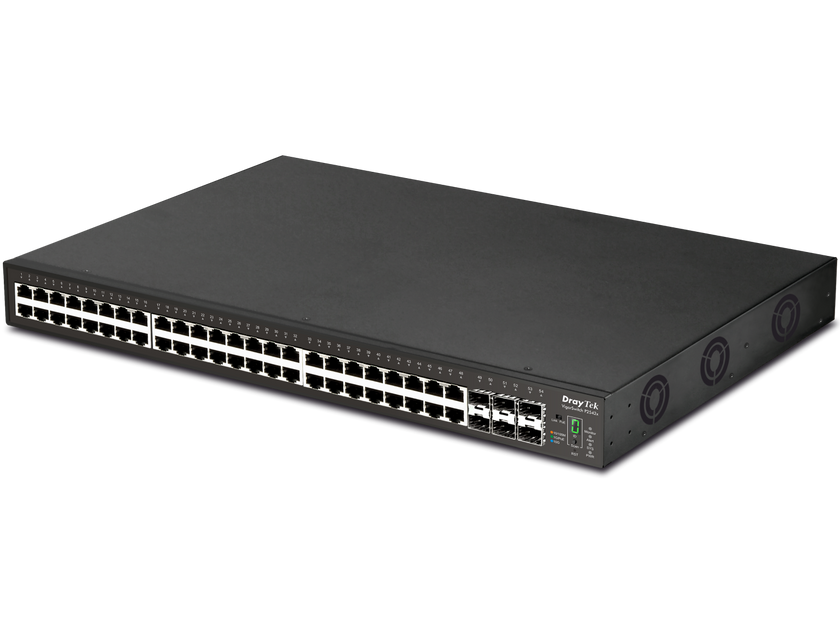

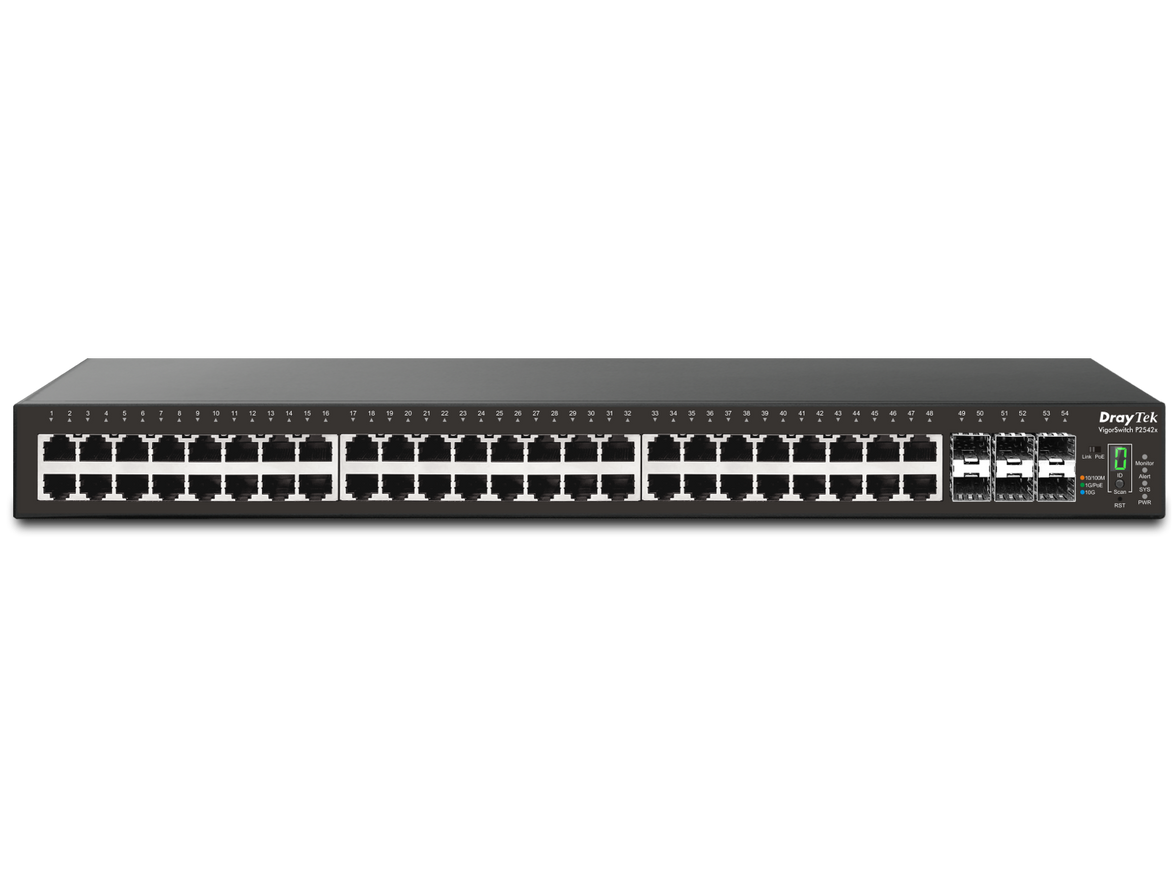

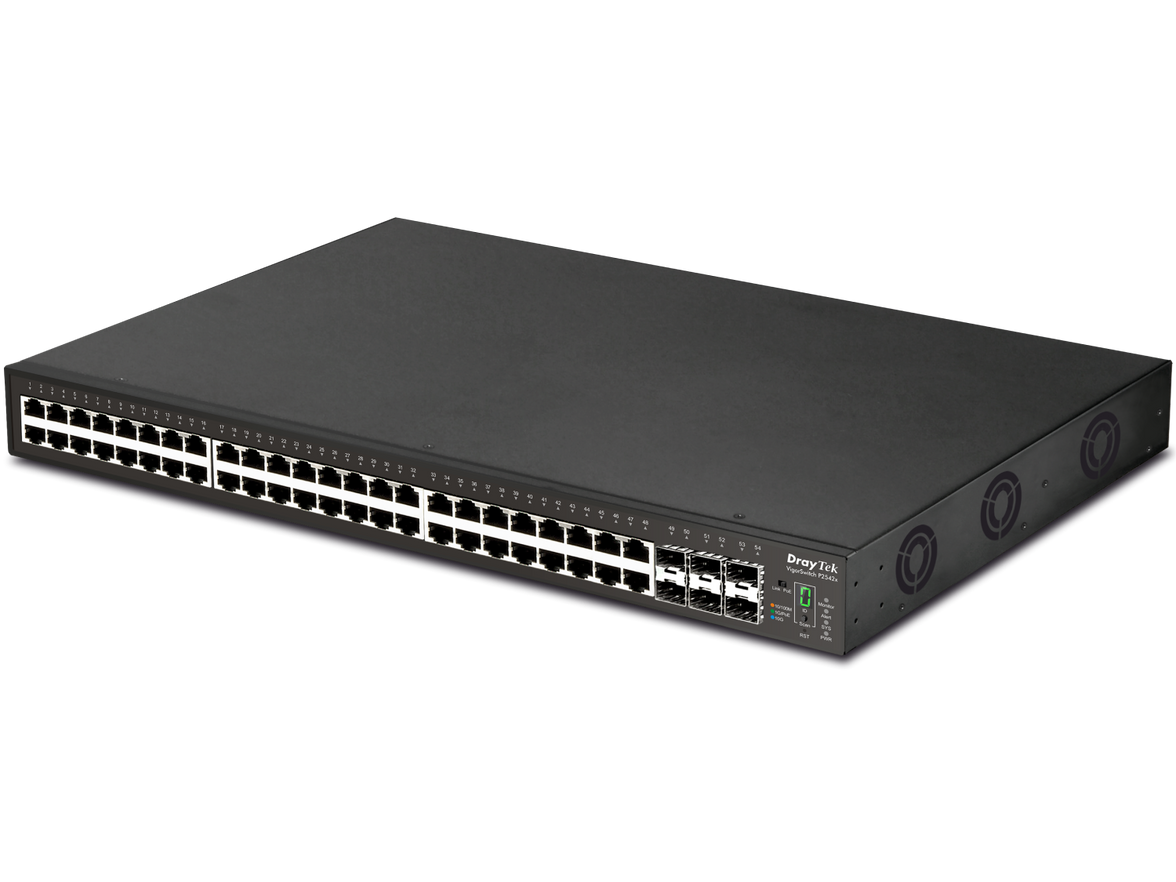

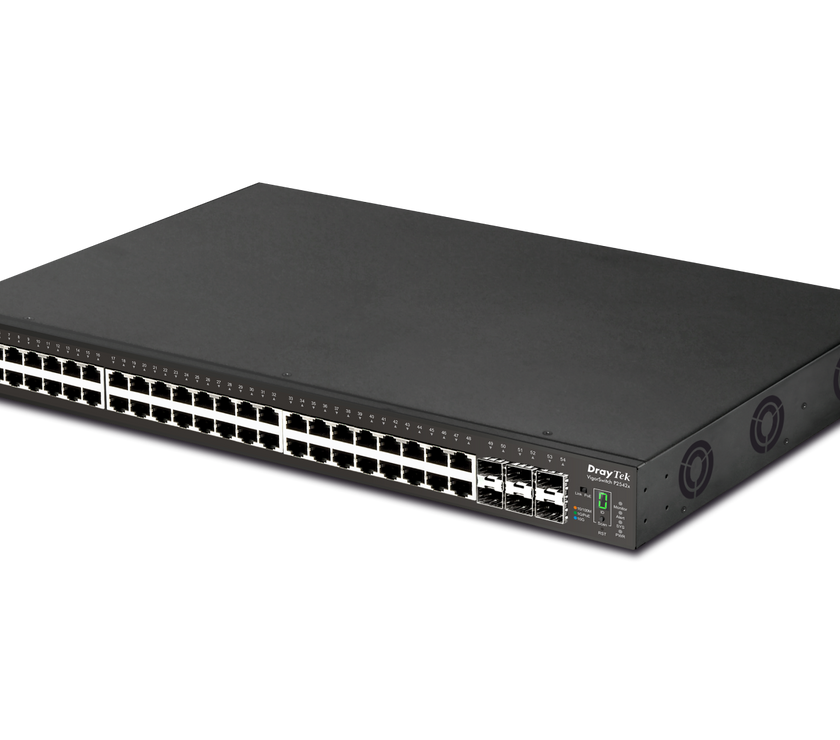

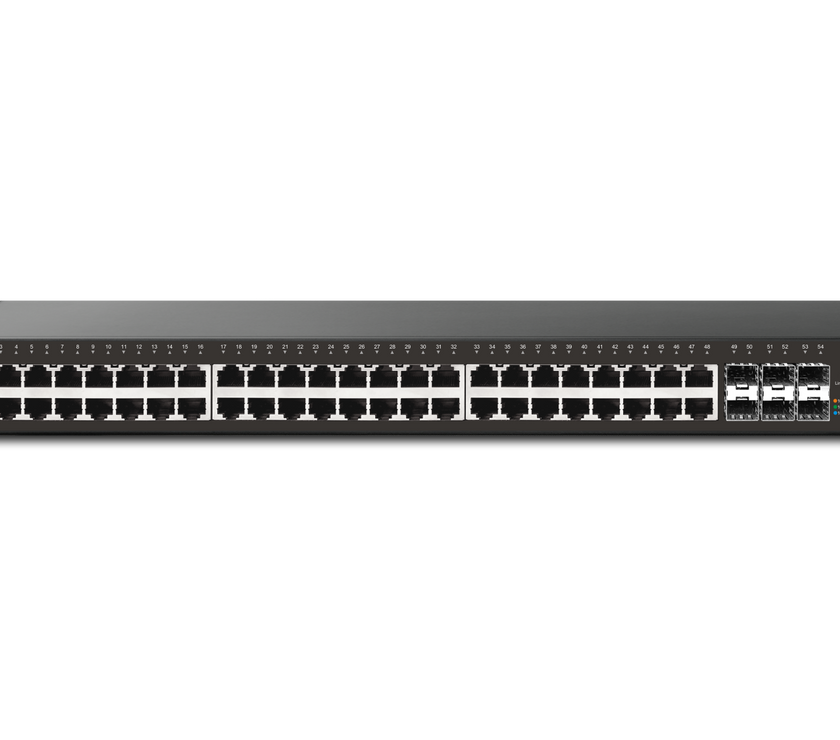

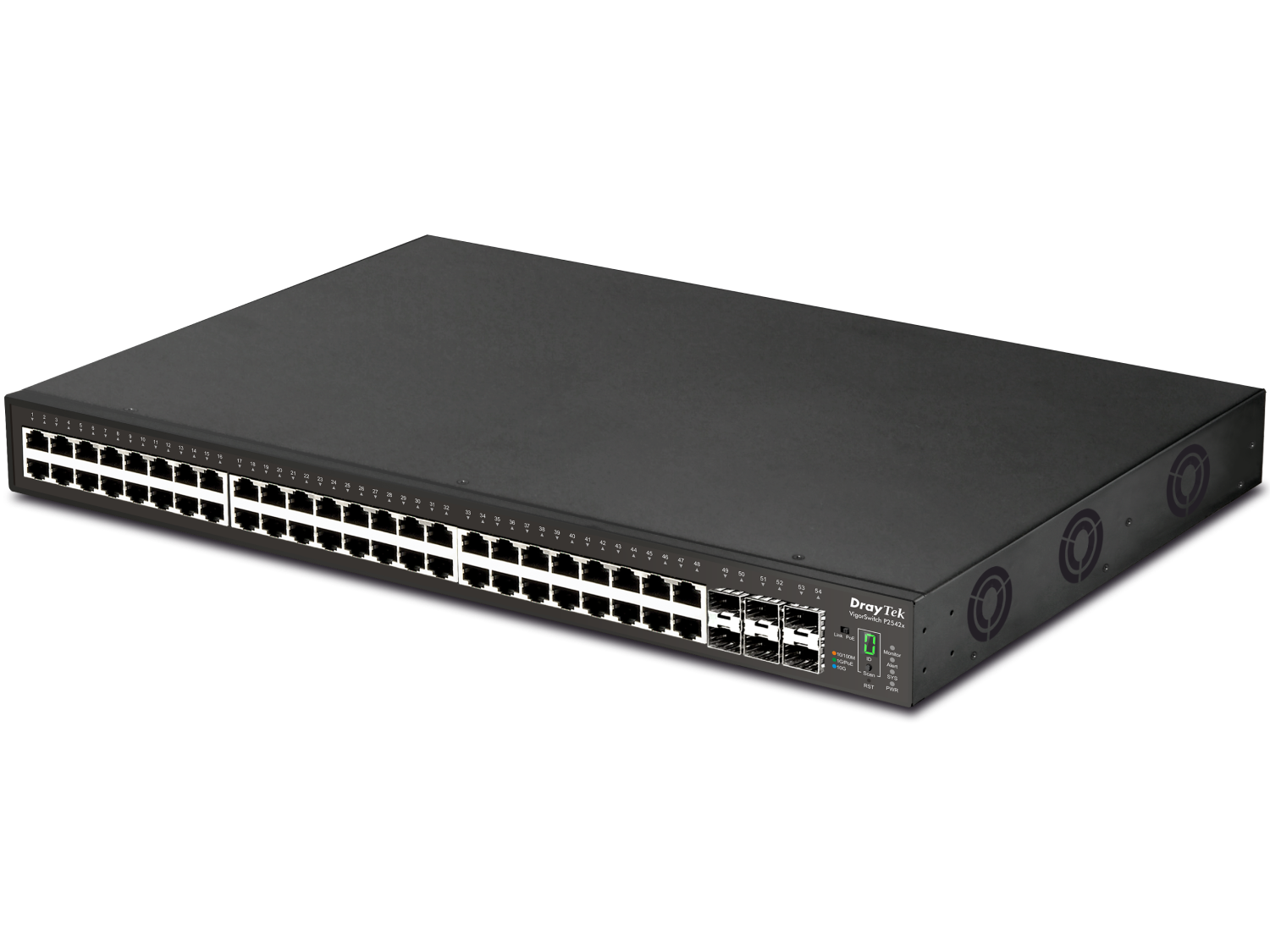

DrayTek VigorSwitch P2542x-K

Name: DrayTek VigorSwitch P2542x-K
Brand: DrayTek
SKU: 416219
Price: 724.18 GBP
Availability: OutOfStock

£724.18 GBP

£724.18 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Set up VLAN easily from the router
Provides 10G-capable fiber SFP+ ports

Out of stock

EAN: 4710484747457

SKU: 416219

Vendor: DrayTek

Order within xx hours for delivery on

Product Specification

Buffer Size: 16 Mbit
Switching Capacity: 216 Gbps
Forwarding Rate (64 bytes): 160.7 Mpps
MAC Address Table: 32K
Max. Jumbo Frame: 12 KB
L3 Routing Table: Supported
1 GbE Ports: 48
SFP+ (10G): 6 Ports
Console (RJ-45): 1 Port
Slide Switch: Available

Box Content

VigorSwitch P2542x
Rack Mount Kit
Console Cable
Power Cord
Quick Start Guide

Documents

Datasheet

Technical Features

PoE (Power over Ethernet): Delivers power and data over one Ethernet cable with PoE scheduling for automated device control.
10G SFP+: Provides 10G-capable fiber uplink ports for high-speed aggregation or connection to core switches.
ONVIF CCTV: Detects ONVIF devices, displays surveillance topology, and supports live video streaming and maintenance.
Wire-Speed VLAN Routing: Routes inter-VLAN traffic directly at wire speed, improving network efficiency and offloading the router.
IPv6 Ready: Supports MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver for full IPv6 network compatibility.
Auto Surveillance & Voice VLAN: Automatically detects IP cameras and phones, applying QoS tagging for prioritized traffic.
Web-Based GUI: Intuitive graphical interface for easy network management and port monitoring.
IP Conflict Prevention: Prevents network instability by detecting and blocking conflicting IP addresses.
Access Control: Supports IP/MAC ACL and 802.1x RADIUS authentication for enhanced network security.
Central Switch Management: Enables centralized VLAN setup and topology view from the router interface.
QoS (Quality of Service): Prioritizes important network traffic using CoS, DSCP, and IP Precedence tagging.
Energy-Efficient Ethernet: IEEE 802.3az compliant for reduced power consumption during low traffic periods.
LLDP-MED: Simplifies VoIP deployment by detecting devices, assigning VLANs, and prioritizing voice traffic.

DrayTek VigorSwitch P2542x-K

£724.18 GBP

£724.18 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

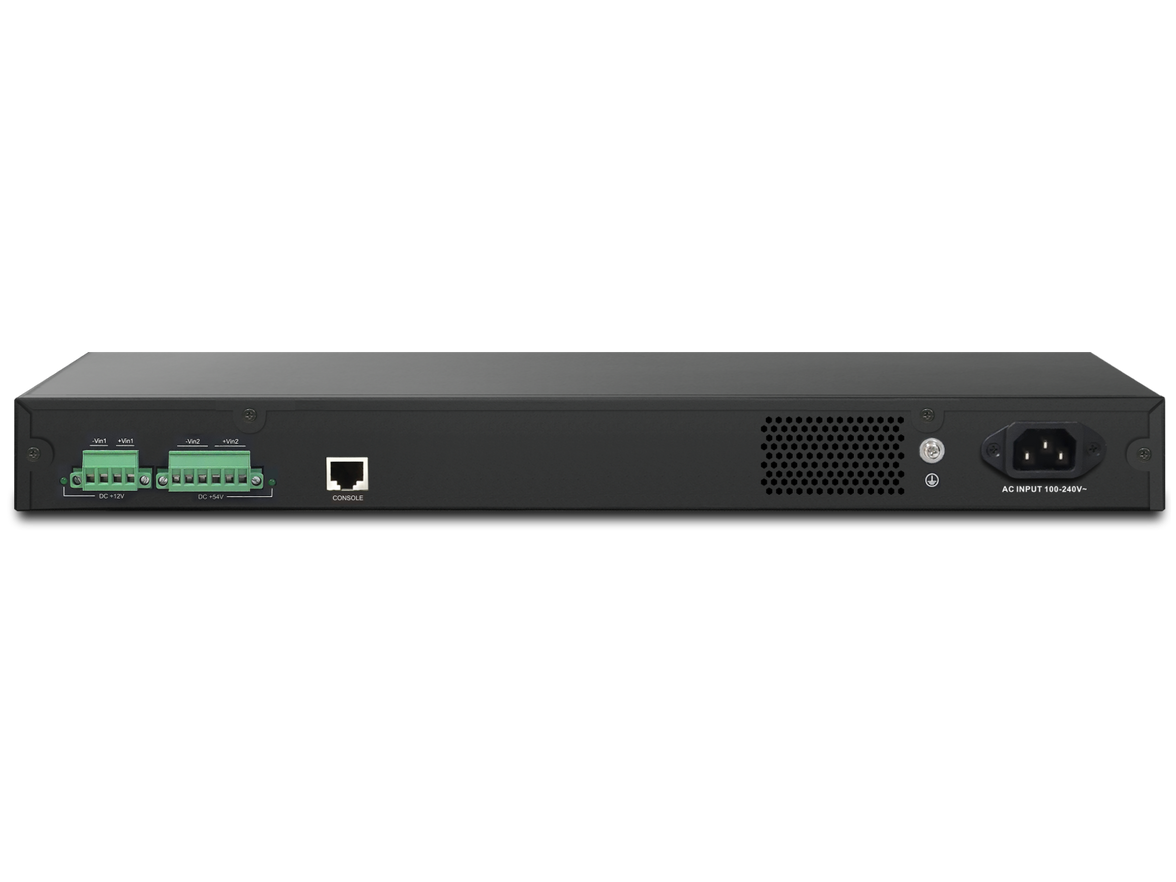

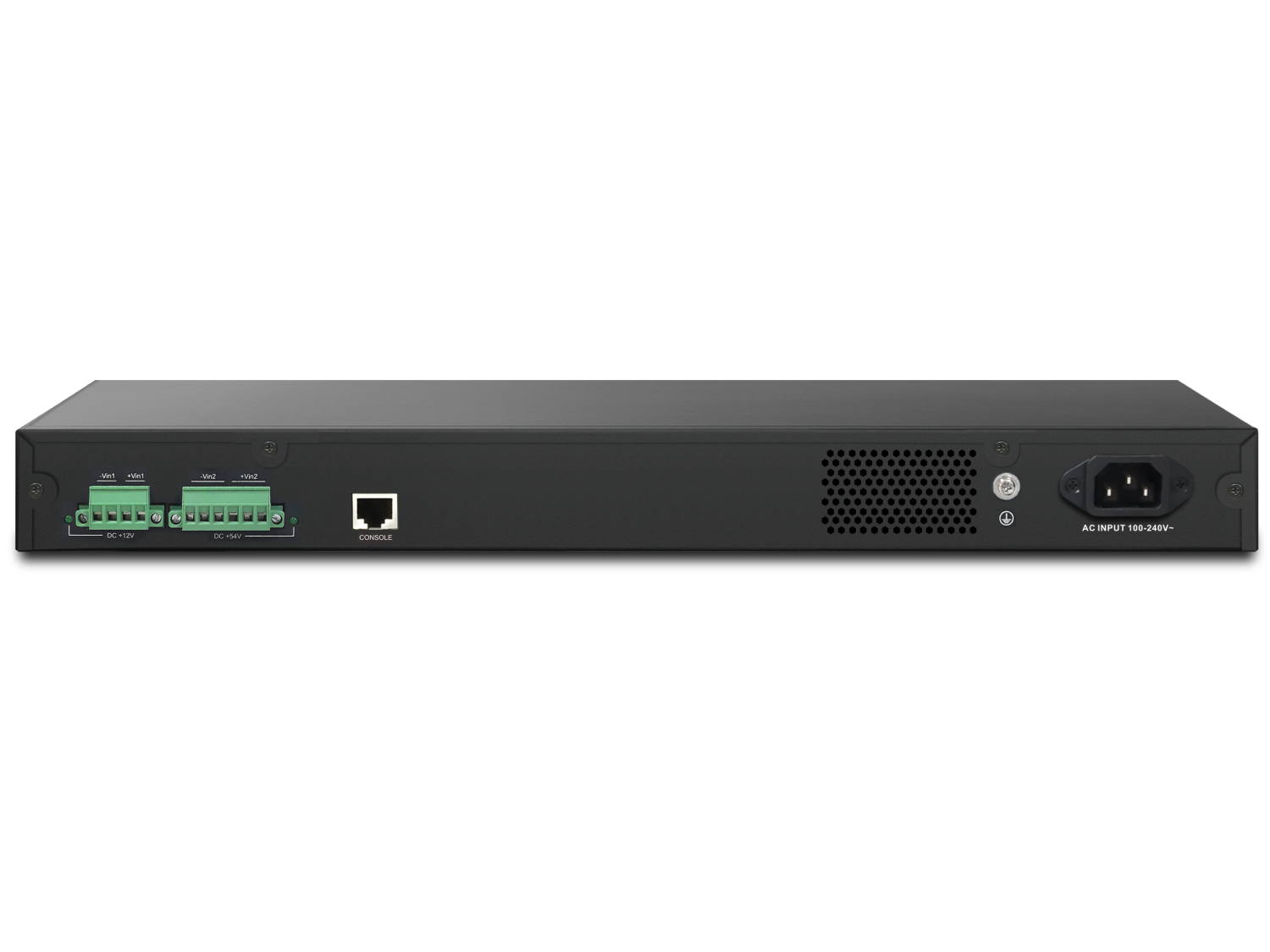

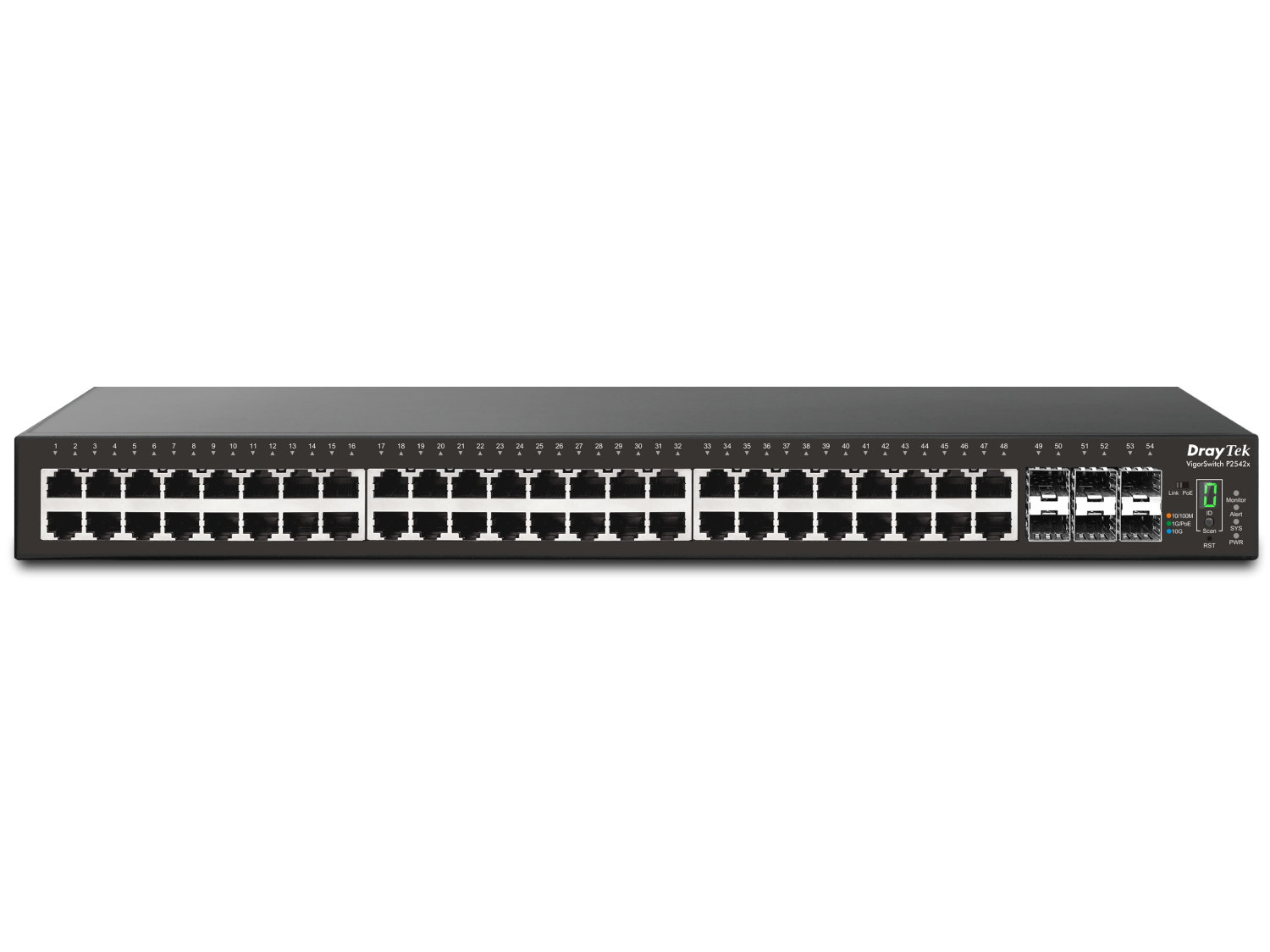

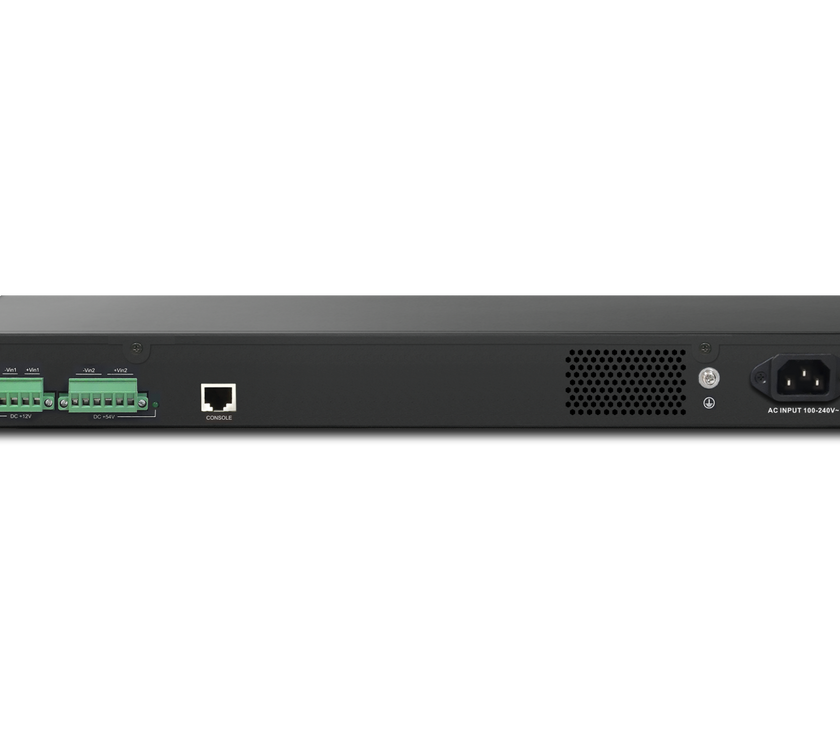

The DrayTek VigorSwitch P2542x features 48 Gigabit Ethernet LAN ports and 6 SFP+ 10Gbps fiber links. The built-in PoE+ capacity can deliver power to all 48 LAN ports, with PoE scheduling and priority monitoring features to ensure dependentable operation of connected devices. The dual input of both DC and AC power offers enhenced flexibility for diverse deployment.
