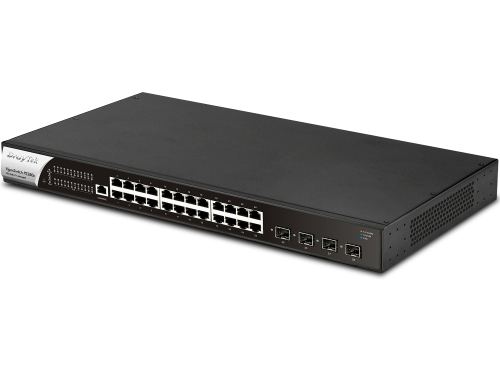

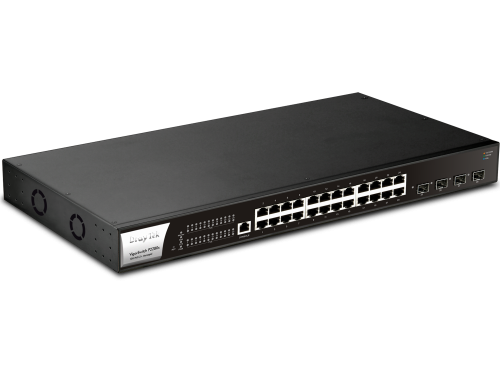

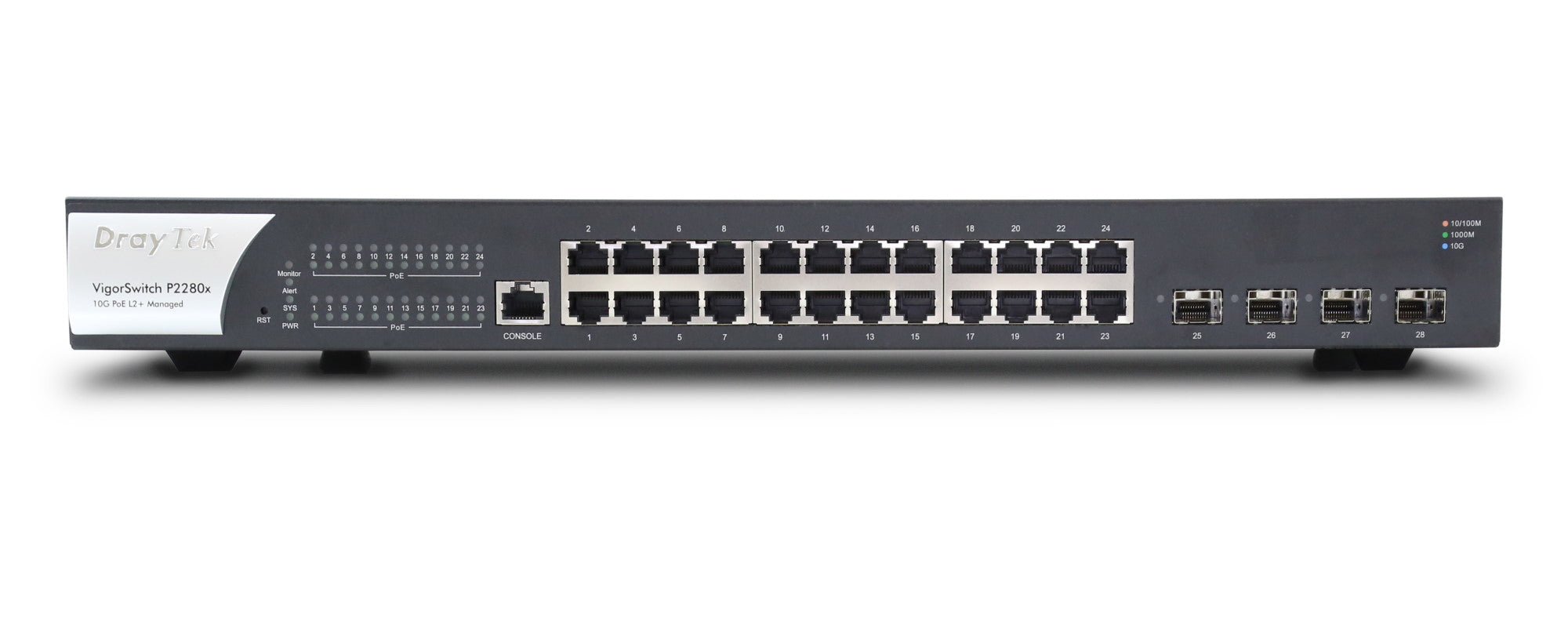

DrayTek VigorSwitch P2280X 28 Port PoE

Name: DrayTek VigorSwitch P2280X 28 Port PoE
Brand: DrayTek
SKU: 234457
Price: 491.9 GBP
Availability: OutOfStock

£491.90 GBP

£491.90 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Manage Centrally or Stand-Alone
400W PoE Power Budget

Out of stock

EAN: 4712909127967

SKU: 234457

Vendor: DrayTek

Order within xx hours for delivery on

Product Specification

Rack Mountable: 1U
Power Input: AC 100-240V @ 5.5A
Max. Power Consumption (watts): 499
Dimension (mm): 441 x 270 x 44
Weight (kg): 4.25
Operating Temperature: 0 to 45°C
Storage Temperature: -20 to 70°C
Operating Humidity (non-condensing): 10 to 90%
Storage Humidity (non-condensing): 5 to 90%

Box Content

VigorSwitch P2280x
Rack Mount Kit
Console Cable
Power Cord
Quick Start Guide

Documents

Datasheet

Technical Features

Ping Device Check: Enables ping check to selected devices to monitor their status. If ping timeout occurs, the port can power cycle (if PoE enabled) and/or send a mail alert.
ONVIF CCTV: ONVIF-Friendly feature recognizes ONVIF devices, displays surveillance topology, and provides a UI for video streaming and device maintenance.
Routing: Wire-Speed VLAN Routing improves overall network performance by routing inter-VLAN traffic directly through the VigorSwitch P2280x, reducing router load.
IPv6: IPv6 Ready with support for MLD Snooping, IPv6 ACL, and IPv6 DNS Resolver.
Surveillance: Auto Surveillance & Voice VLAN automatically recognizes IP camera and IP phone traffic, adding CoS tags for QoS prioritization.
Graphic User Interface: Web-Based GUI allows easy management and monitoring through a graphical console showing port and hardware status.
IP Conflict Prevention: Improves network stability by preventing IP conflicts caused by misconfigured or malicious hosts.
Network Administrators: Supports multiple admin accounts with two levels of administrator privileges.
Quality of Service: QoS (Quality of Service) improves performance of critical traffic by prioritizing it using CoS, DSCP, and IP Precedence tags.
Switch Management: Central Switch Management enables easy VLAN setup from the router and provides a centralized hierarchy view of all switches.

DrayTek VigorSwitch P2280X 28 Port PoE

£491.90 GBP

£491.90 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

DrayTek VigorSwitch P2280x is a Layer 2+ Managed Gigabit PoE switch ideal for a network with growing network traffic. The switch has 24x Gigabit Ethernet PoE/PoE+ ports with a power budget of 400 watts and 4 additional dedicated SFP+ for 10G Fiber link.
