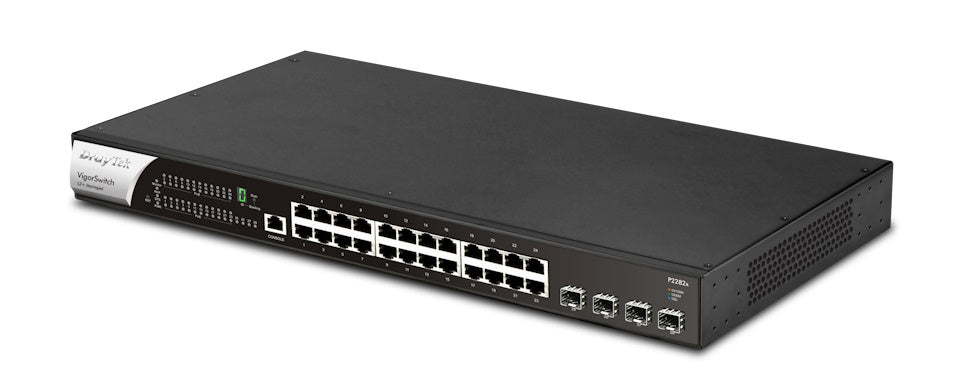

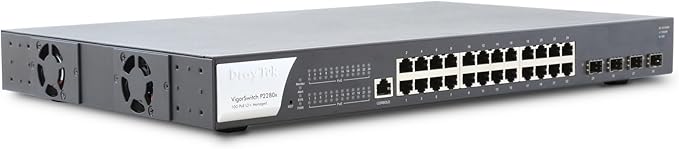

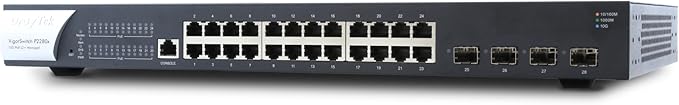

DrayTek VigorSwitchP2282X
Regular price
£384.90 GBP
Sale price:
£384.90 GBP
Regular price:
(VAT Excl.)
Shipping calculated at checkout.
- 400 watts PoE Power Budget
- Provides 10G-capable fiber SFP+ ports
In stock, 1 unit
Management features
| Traffic classification | Yes |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
Ports & interfaces
| SFP+ module slots quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 |
| Power connector | AC-in jack |
Network
| Full duplex | Yes |
|---|---|
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 128 Gbit/s |
| Static route | Yes |
| Forwarding rate | 95.2 Mpps |
Security
| Access Control List (ACL) rules | 512 |
|---|---|
| Access Control List (ACL) | Yes |
| DHCP features | DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping |
Design
| Form factor | 1U |
|---|---|
| Product colour | Black |
| Stackable | Yes |
| LED indicators | LAN |
| Housing material | Metal |
| Rack mounting | Yes |
| Market segment | Business |
Performance
| Firmware upgradeable | Yes |
|---|---|
| Operating system installed | DrayOS |
Power
| Power supply included | Yes |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power source | AC/DC |
Power over Ethernet (PoE)
| Power over Ethernet plus (PoE+) ports quantity | 24 |
|---|---|
| Total Power over Ethernet (PoE) budget | 400 W |
| Power over Ethernet (PoE) | Yes |
Other features
| Warranty period | 2 year(s) |
|---|
Operational conditions
| Storage temperature (T-T) | -20 - 70 °C |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 281 mm |
| Height | 44 mm |
| Weight | 4.26 kg |
Packaging content
| Rack mount kit | Yes |
|---|---|
| Quick start guide | Yes |
Packaging data
| Package type | Box |
|---|
Technical details
| PSTI certified | Yes |
|---|
DrayTek VigorSwitchP2282X
Regular price
£384.90 GBP
Sale price:
£384.90 GBP
Regular price:
(VAT Excl.)
Overview
The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.
