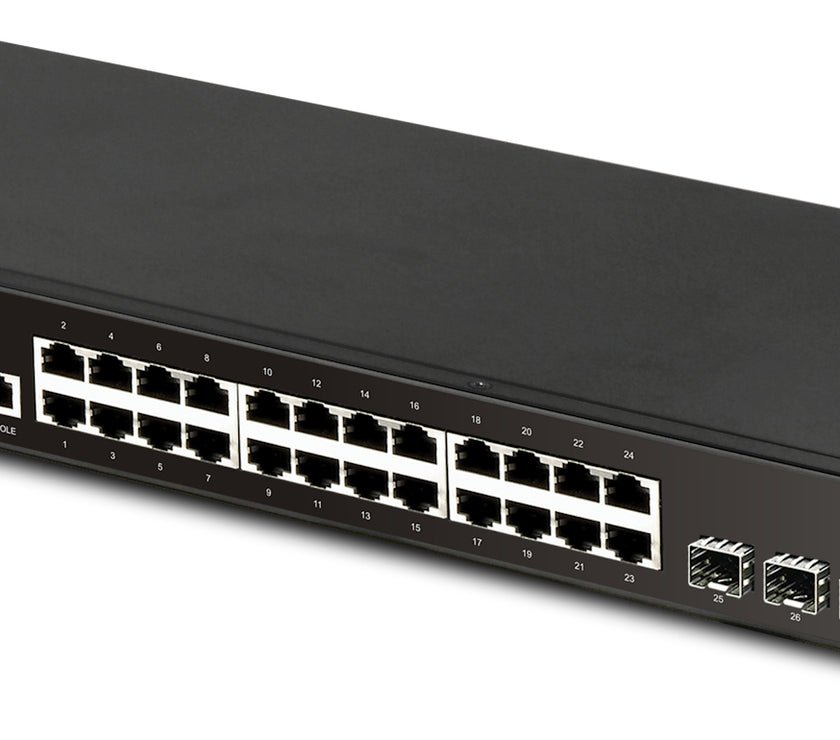

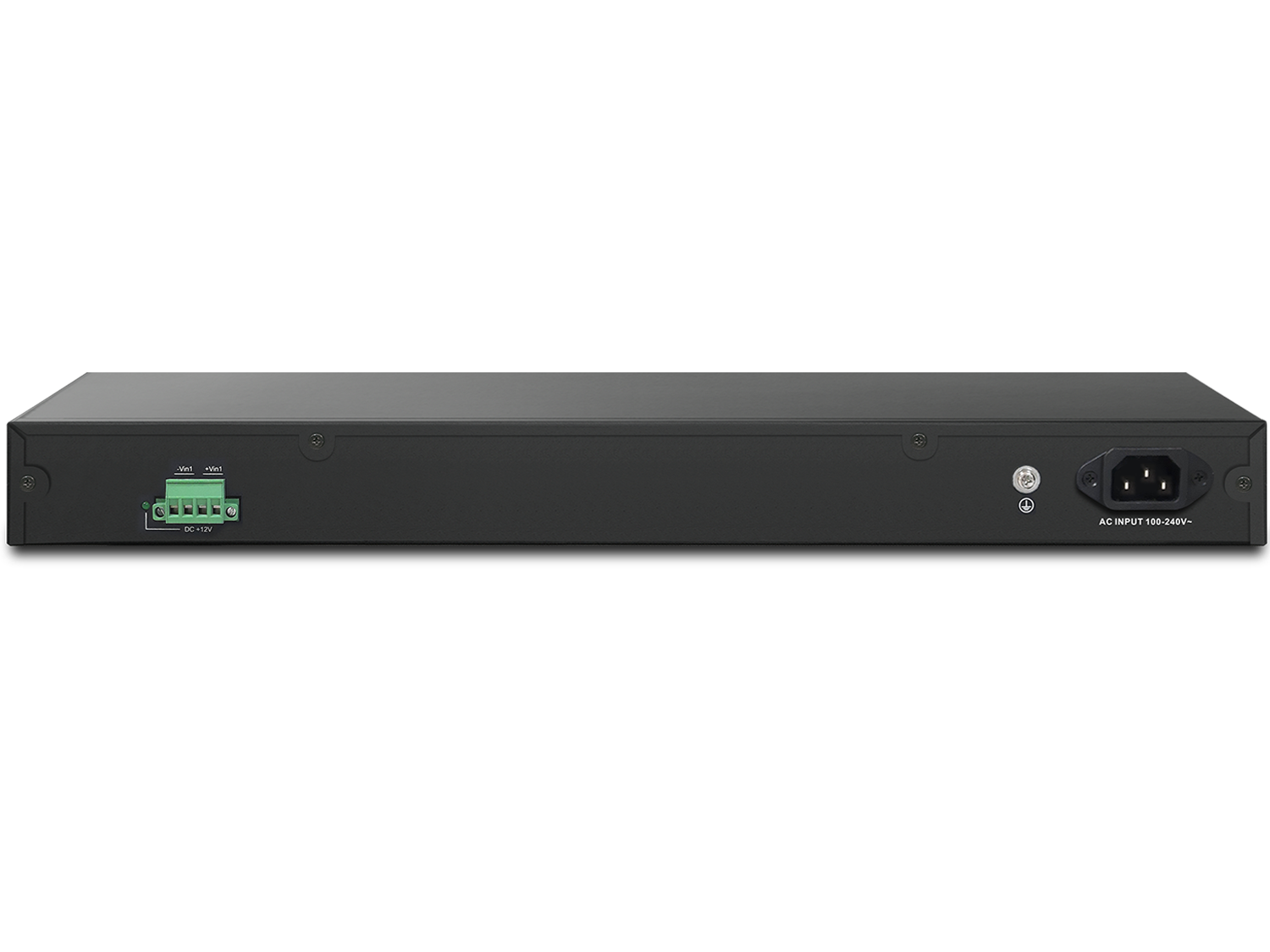

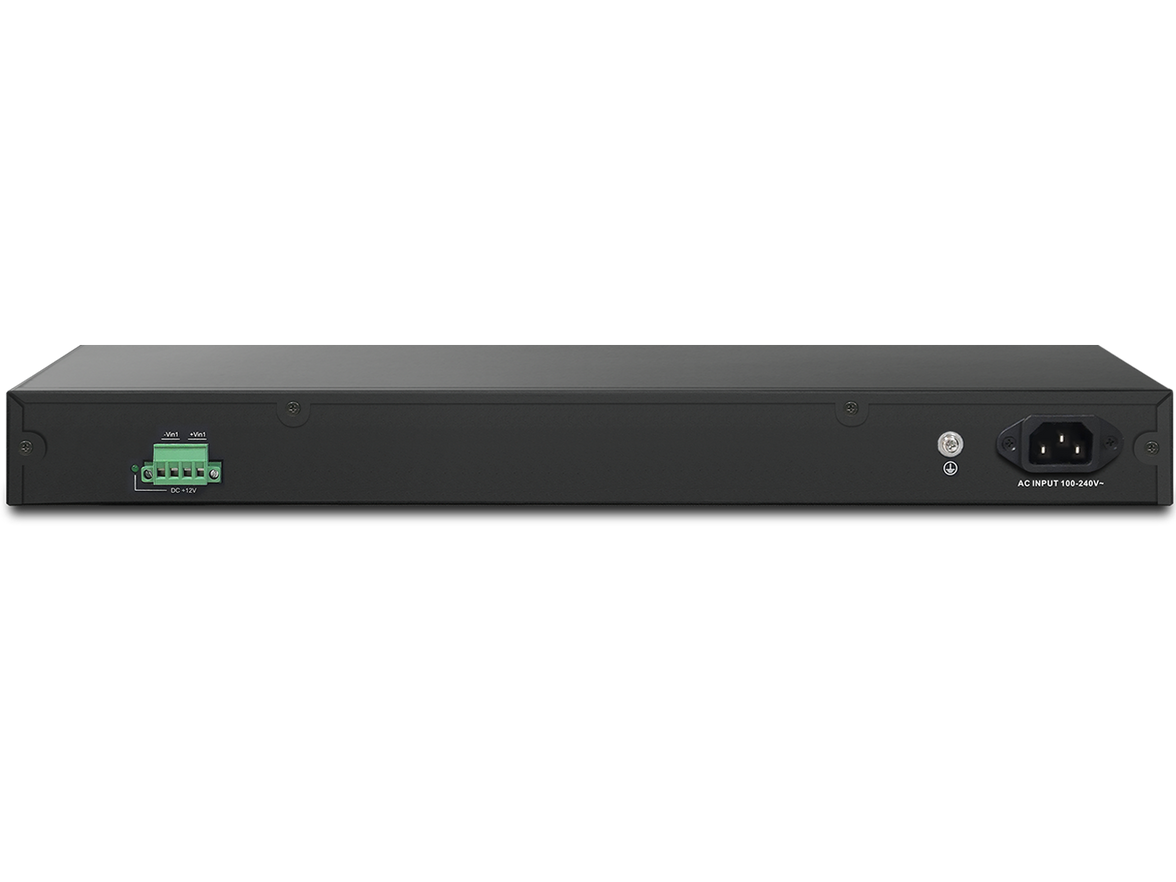

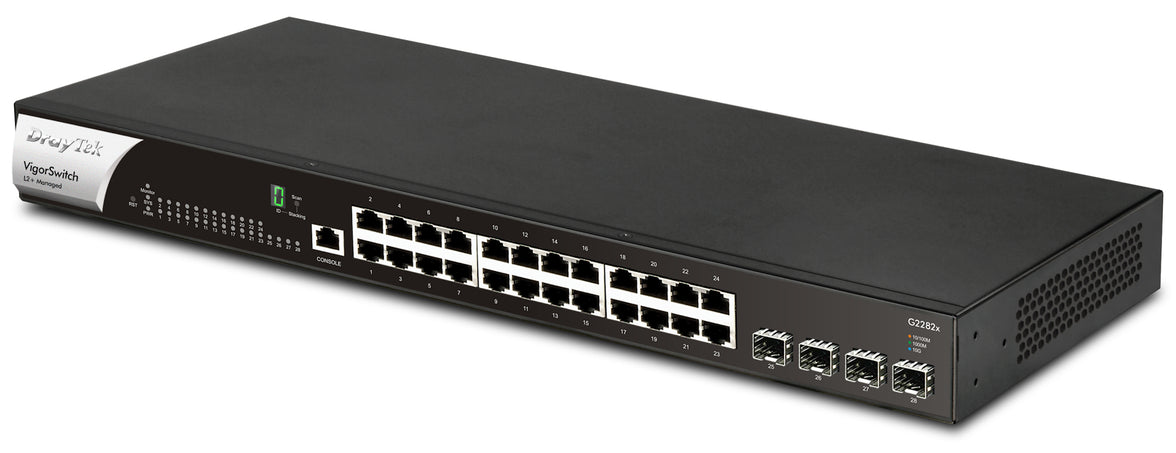

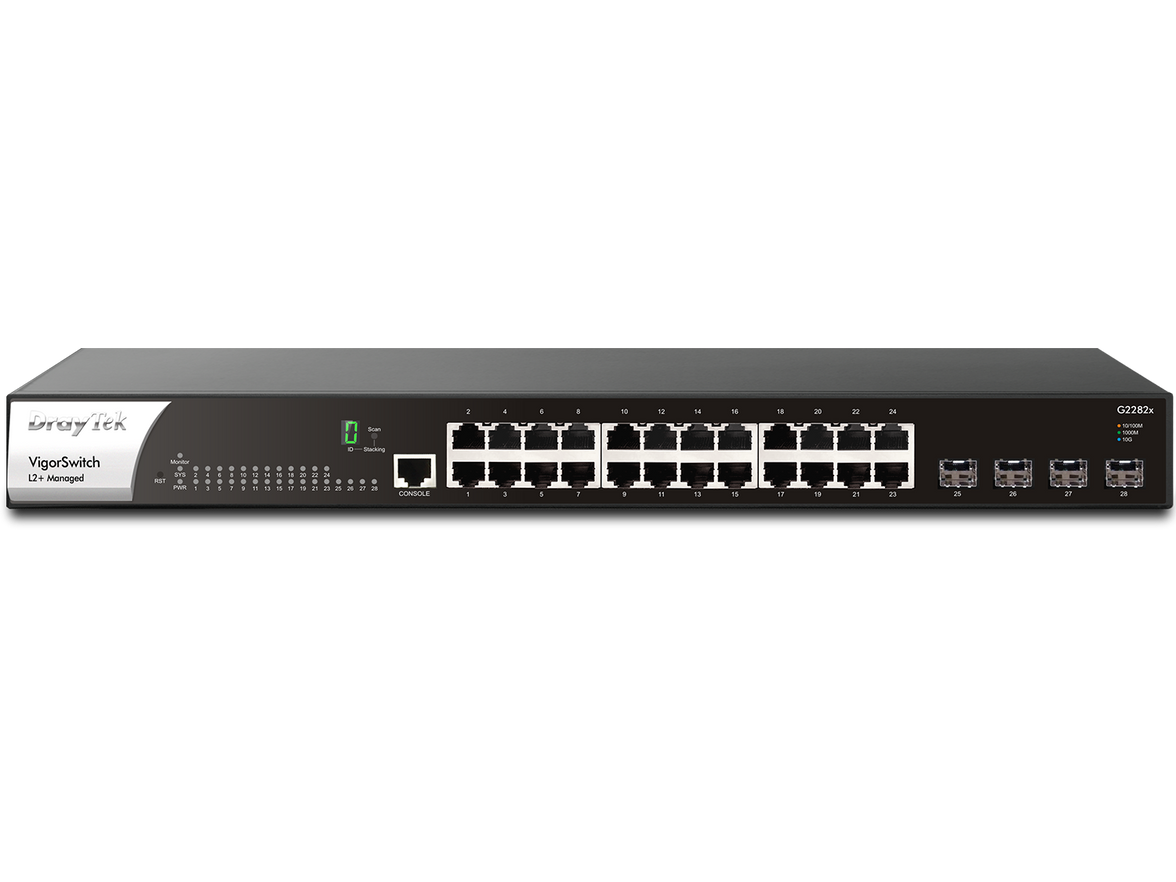

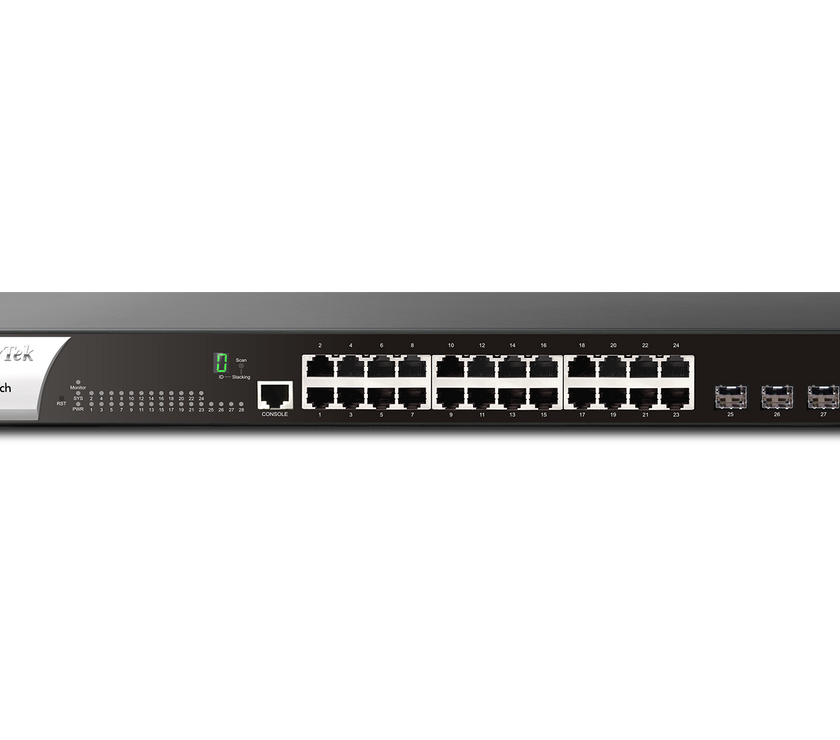

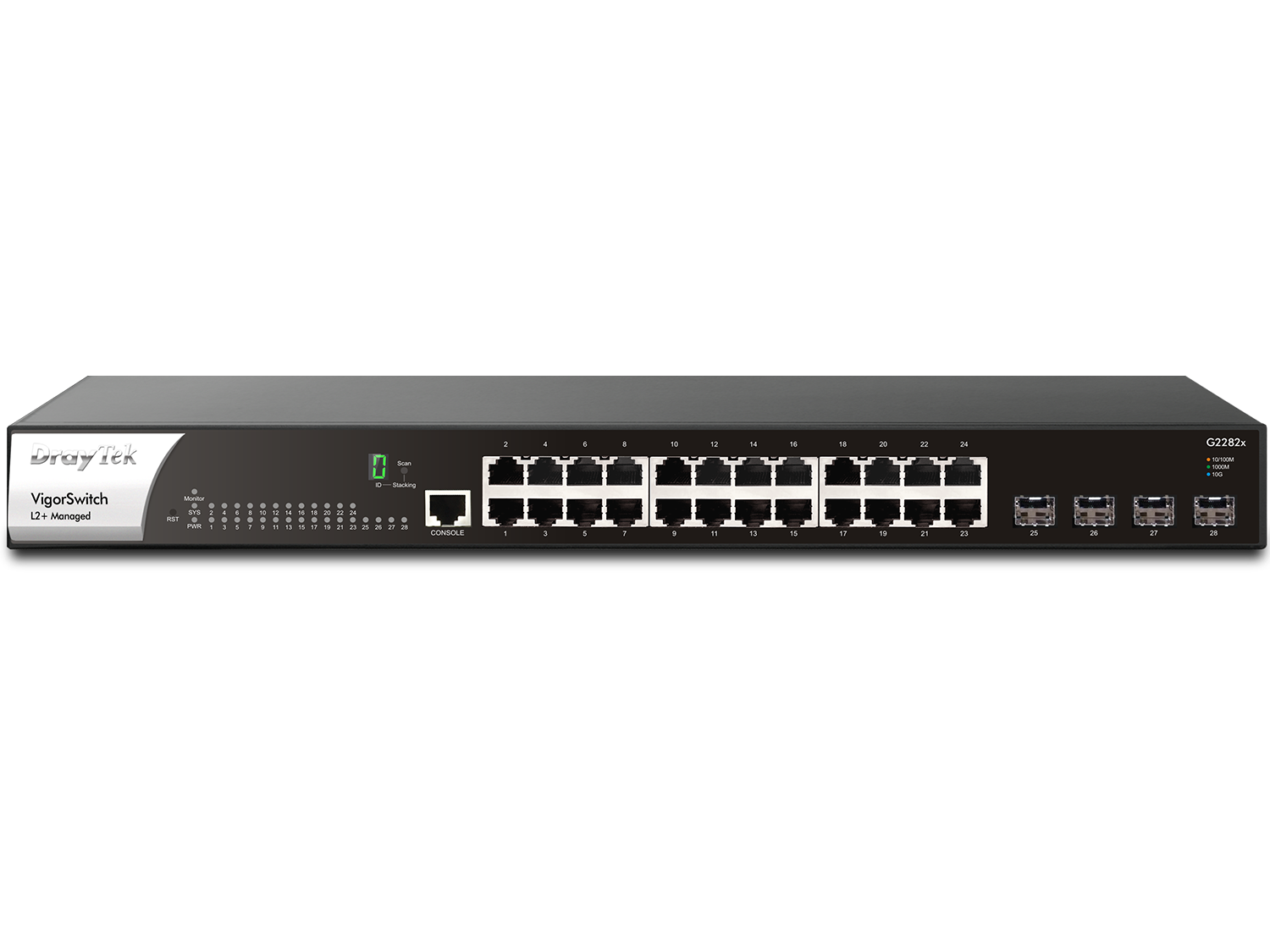

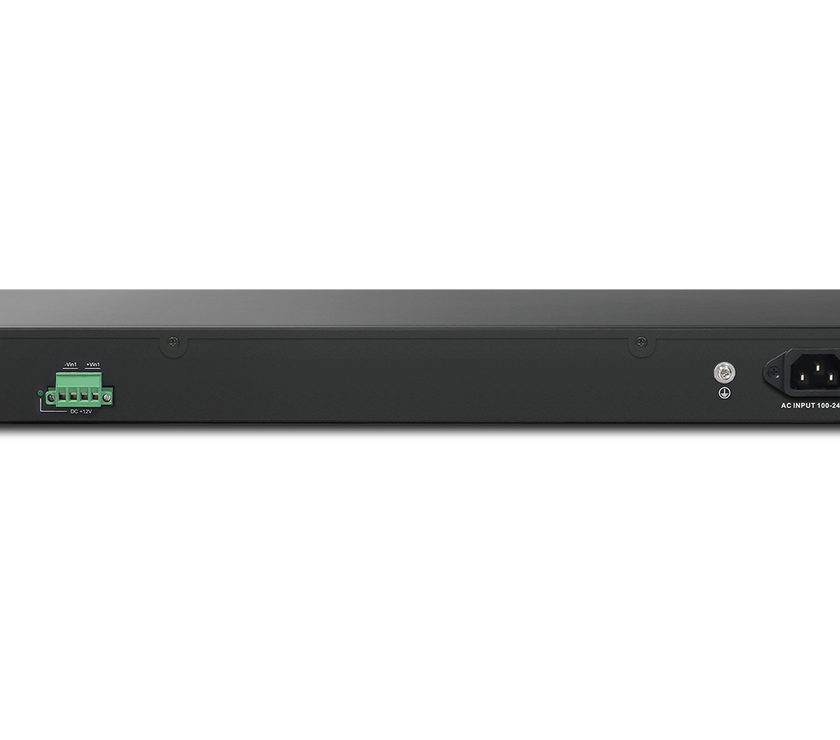

DrayTek VigorSwitch G2282x

Name: DrayTek VigorSwitch G2282x
Brand: DrayTek
SKU: 303349
Price: 224.22 GBP
Availability: InStock

£224.22 GBP

£224.22 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

128 Gbps Switching Capacity
Provides 10G-capable fiber SFP+ ports

In stock, 6 units

EAN: 4710484746436

SKU: 303349

Vendor: DrayTek

Order within xx hours for delivery on

Management features

Reset button	Yes
Multicast support	Yes
Traffic classification	Yes
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2+
Cloud-managed	Yes

Network

IGMP snooping	Yes
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Auto MDI/MDI-X	Yes
10G support	Yes

Power

Power connector	AC/DC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Power source	AC

Technical details

Firmware upgradeable	Yes
Warranty period	2 year(s)
PSTI certified	Yes

Ports & interfaces

SFP+ module slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45

Data transmission

MAC address table	16000 entries
Switching capacity	128 Gbit/s
Forwarding rate	95.2 Mpps

Security

Access Control List (ACL) rules	512
Access Control List (ACL)	Yes
DHCP features	DHCP Option 66, DHCP Option 67, DHCP client, DHCP relay, DHCP server, DHCP snooping

Design

LED indicators	LAN
Market segment	Business

Performance

Fanless	Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	440 mm
Depth	205 mm
Height	44 mm
Weight	2.69 kg

Packaging data

Package type	Box
Rack mount kit	Yes
Quick start guide	Yes

DrayTek VigorSwitch G2282x

£224.22 GBP

£224.22 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.Our cutting-edge Networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.
