DrayTek Vigor 2927AX WLAN Router
- Provide ultra-reliable connectivity
- 5+1 x Gigabit RJ-45 LAN ports
Ethernet LAN features
| Ethernet WAN | Yes |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
DSL features
| DSL WAN | Yes |
|---|
Mobile network
| SIM card slot | No |
|---|---|
| 3G/4G USB modem compatibility | No |
Network
| Network address translation (NAT) | Yes |
|---|---|
| VPN tunnels quantity | 50 |
| Built-in FTP server | Yes |
| VPN Passthrough | Yes |
| SSID-based VLAN assignment | Yes |
| Multicast support | Yes |
| Load balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
Security
| Security algorithms | WEP, WPA, WPA2 |
|---|---|
| NAT functionality | 800 Mbps max. 60,000 sessions |
| Firewall | Yes |
| DoS attack prevention | Yes |
| Authentication method | Pre-Shared Key, Enterprise 802.1x |
| Filtering | Yes |
| Schedule access | Yes |
| Access Control List (ACL) | Yes |
Performance
| Memory card slot(s) | Yes |
|---|
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
|---|---|
| WLAN data transfer rate (max) | 0 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Ports & interfaces
| USB port | Yes |
|---|---|
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 5 |
| DC-in jack | Yes |
Management features
| WPS push button | Yes |
|---|---|
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth control | Yes |
Protocols
| DHCP server | Yes |
|---|
Design
| Product type | Tabletop router |
|---|---|
| On/off switch | Yes |
| Product colour | Black |
| Indication light | Yes |
Packaging content
| Quick start guide | Yes |
|---|---|
| Manual | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
Antenna
| Antenna design | External |
|---|---|
| Detachable antenna(s) | Yes |
| Antennas quantity | 4 |
| Antenna gain level (max) | 3 dBi |
| Antenna connector type | SMA dipole |
Power
| Power supply | 26.8 W |
|---|---|
| Power source type | AC, DC |
| Output voltage | 100-240 V |
Operational conditions
| Storage temperature (T-T) | -25 - 70 °C |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Width | 241 mm |
|---|---|
| Weight | 780 g |
| Height | 44 mm |
| Depth | 165 mm |

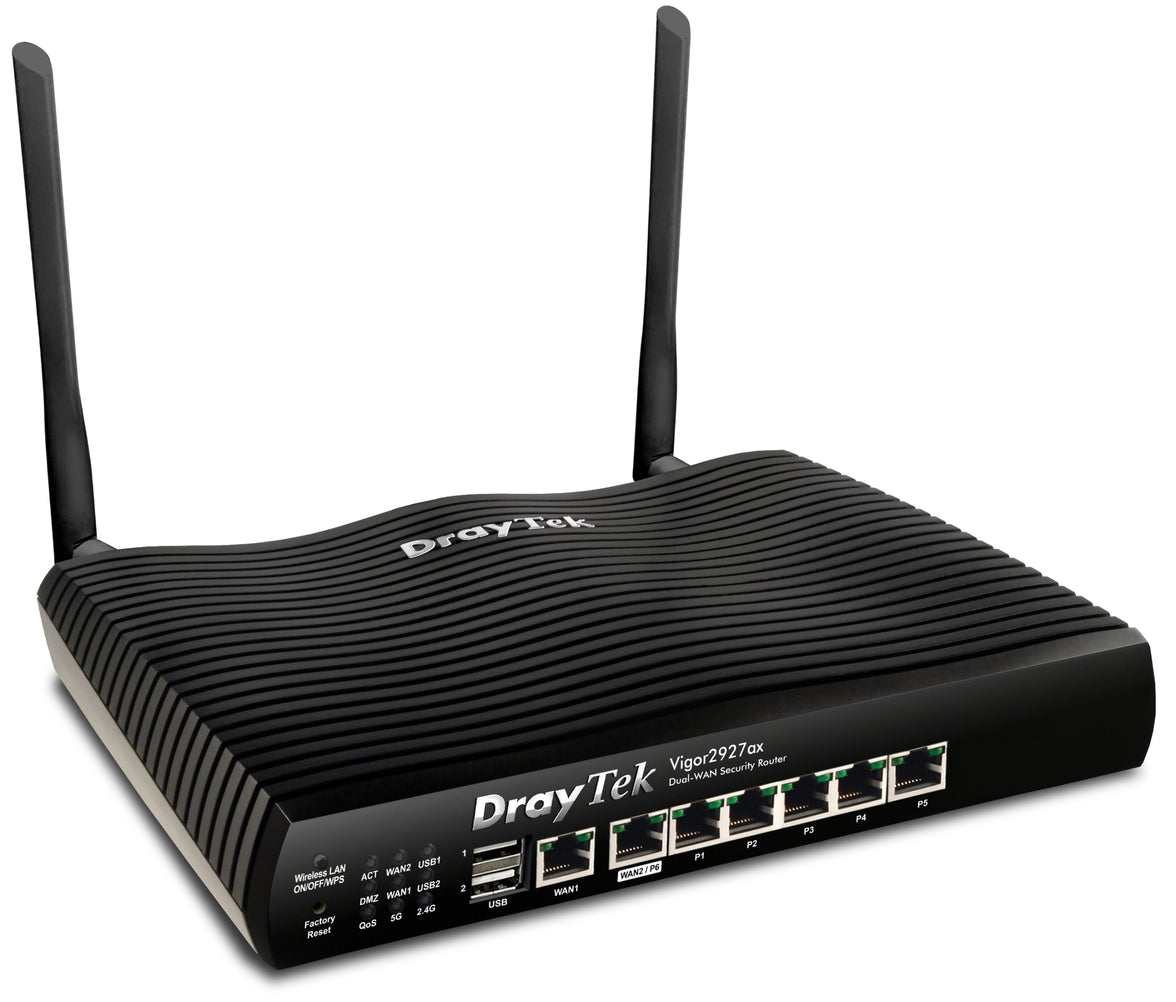

DrayTek Vigor 2927AX WLAN Router
Overview
The DrayTek Vigor 2927AX WLAN Router delivers advanced wireless connectivity with dual-band Wi-Fi 6 support, ensuring high-speed, reliable network performance for demanding environments. Equipped with robust security features and versatile VPN capabilities, it is ideal for businesses requiring secure remote access and seamless network management. Its comprehensive firewall and traffic management tools provide granular control, optimizing bandwidth and safeguarding your network infrastructure. Designed for professional use, the Vigor 2927AX combines cutting-edge technology with dependable performance to meet complex networking needs.
