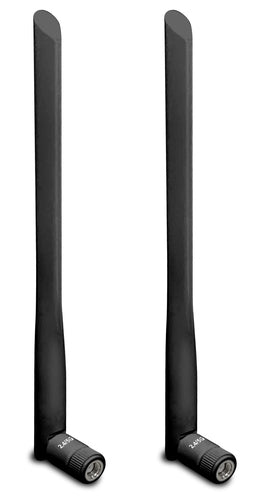

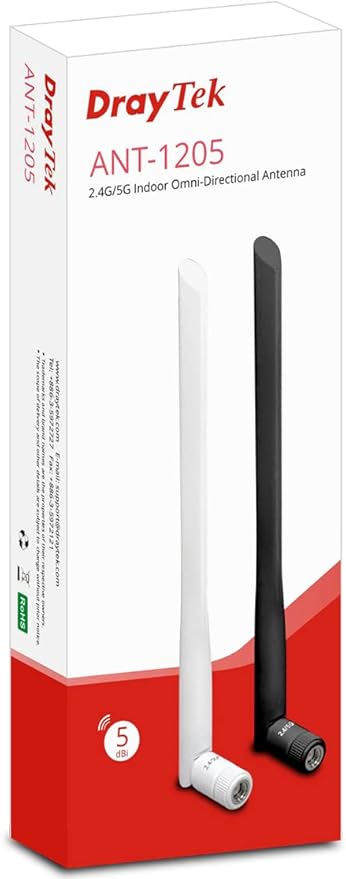

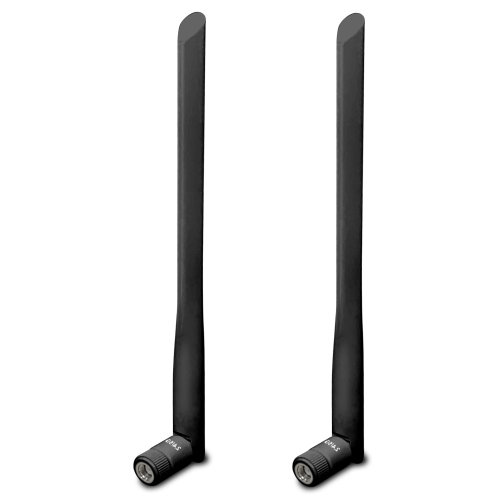

Draytek ANT-1205B 5dB WiFi Aerial Black

Draytek ANT-1205B 5dB WiFi Aerial Black

£15.18 GBP
Sale price: £15.18 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 4.5dBi Gain at 5.8Ghz
  • Improve range and coverage
In stock, 17 units
EAN: 4710484740700
SKU: 253089
Vendor: Dray Tek
Order within xx hours for delivery on
Quantity
  • Operation Band: 2.4GHz and 5GHz
  • Standard: IEEE 802.11a/b/g/n/ac/ax
  • 2.4GHz Frequency Range: 2400 to 2500 MHz
  • 5GHz Frequency Range: 5150 to 5850 MHz
  • 2.4GHz Gain: 5 dBi
  • 5GHz Gain: 4.5 dBi
  • HPBW Horizontal: 360°
  • HPBW Vertical at 2.4GHz: 30°
  • HPBW Vertical at 5GHz: 25°
  • 2.4GHz VSWR: < 2.0
  • 5GHz VSWR: < 2.0
  • Polarization: Linear
  • 2 x ANT-1205B Antennas

Datasheet

Overview

The DrayTek ANT-1205B Black Indoor 5dBi Omni-Directional Antennas are replacement antennas for any DrayTek router or wireless access point (see accessories tab). They provide up to 5dBi gain (vs. the 2 or 3 dBi standard antenna supplied with the access point/router). The ANT-1205B can increase coverage in your environment, creating a stronger signal for your WiFi coverage. A high-gain antenna achieves this by creating a narrower and therefore more concentrated radiation pattern. It is still an omni-directional antenna, i.e. signal radiates in all directions (360 degrees) perpendicular to the antenna's length. The ANT-1205B is supplied as a pair of antennas, ideal for most DrayTek wireless access points and wireless routers.

Technical Features
  • High-Gain Dual-Band Aerials: Set of 2 antennas
  • Color Options: Available in white or black
  • Improved Wireless Performance: Can improve range and coverage of wireless signal
  • Compatibility: Suitable for all DrayTek routers & access points
  • Wi-Fi Standards: Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
  • Frequency Range: 2400-2500Mhz & 5150-5850Mhz
  • Gain: 4.5dBi at 5.8Ghz, 5dBi at 2.4Ghz
  • Connector Type: RP-SMA
  • Usage: Suitable for indoor use only
  • Optional Accessories: Optional magnetic/extension base
