2N® Access Unit M RFID Multifrequency, NFC 9161141

2N® Access Unit M RFID Multifrequency, NFC 9161141

£444.74 GBP
Sale price: £444.74 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Hassle-free installation
  • Reads secured RFID cards
Out of stock
EAN: 8595159523248
SKU: 9161141
Vendor: 2N
Order within xx hours for delivery on
Quantity
  • Power Supply: PoE and/or 12V ±15% / 2A DC
  • PoE: IEEE 802.3af (Class 0 – 12.95W)
  • LAN: 10/100BASE-TX with Auto-MDIX, RJ-45 modular jack
  • Recommended Cabling: Cat-5e or better
  • Active Switch Output: 8 to 12V DC / max 600mA
  • Operating Temperature: -40°C to +60°C
  • Connection Cable Length: Approximately 3 metres
  • 2N Access Unit M RFID
  • A multi-frequency RFID reader
  • NFC capability

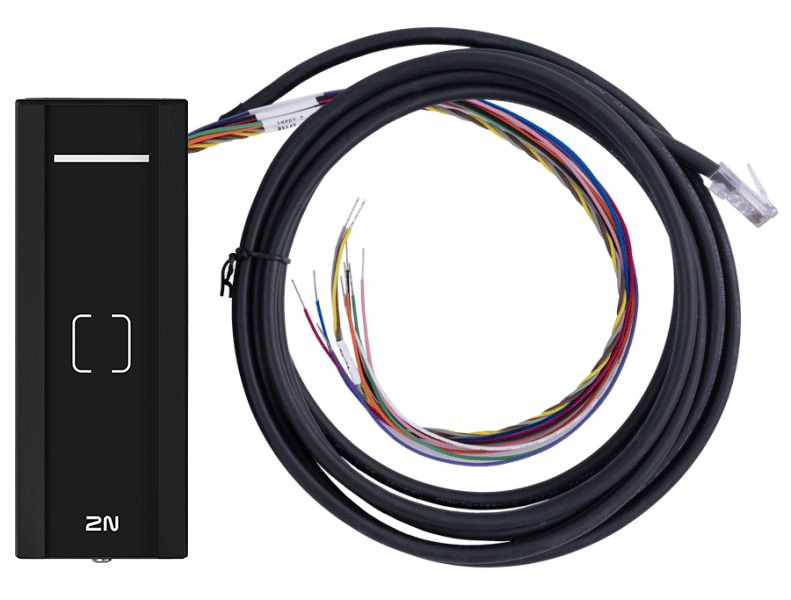

  • A 3-meter cable

Datasheet

Overview
The 2N 9161141 is a two-in-one Contactless RFID and NFC-ready Access Control Reader which allows for access to electronically secured doors using an RFID card / keyfob or NFC-enabled smart phone as the user ID device.Easy to install and perfect for officrs, the 2N mullion style Access Control Reader features an in-built controller and a single UTP cable for connection and power.

Technical Features
  • Convenience of Mobile Credentials: Allows secure access using smartphones, eliminating the need for physical access cards.
  • Mullion-Style Narrow Profile: Slim and elegant design ideal for door frame installation and space-limited locations.
  • Different Modes of User Authentication: Offers multiple authentication options for enhanced flexibility and security.
  • Web Interface Administration: Enables easy configuration and management through an intuitive web interface.
  • Straightforward Pairing Process: Simple and fast setup for seamless integration with access systems.
  • Time & Attendance Terminal: Can be utilized for recording and managing employee attendance.
  • Remote Configuration and Management: Provides full control of settings and updates from remote locations.
  • Mobile Credentials for FREE: Offers cost-free mobile credential access without additional licensing fees.
  • Dual Format User Authentication – Multi-Frequency RFID & NFC: Supports both 13.56MHz RFID cards and NFC-enabled devices for versatile access control.
  • Easy-Install 3 Metre Connection Cable: Supplied with a 3m pre-fitted connection cable for quick and convenient installation.
