2N Touch-Sensitive Keypad Module for 2N Verso and Access Unit

Name: 2N Touch-Sensitive Keypad Module for 2N Verso and Access Unit
Brand: 2N
SKU: 9155047
Price: 229.62 GBP
Availability: InStock

£229.62 GBP

£229.62 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Water tolerance

Power-over-Ethernet

In stock, 3 units

EAN: 8595159511559

SKU: 9155047

Vendor: 2N

Order within xx hours for delivery on

Product Specification

Audio: Speaker 0.8W/8Ω
Interface: Power 12V ±15% / 2A DC or PoE
PoE PoE 802.3af (Class 0 - 12.95W)
Operating temperature range -20 to 55 ºC
Dimensions 105(H) x 97(W) x 27(D) mm
Weight (Net) 0.25kg
Weight (Gross) 0.35kg

Box Content

Touch Keypad module
Long interconnecting cable
Quick installation guide

Documents

Datasheet

Technical Features

Touch keypad for inputting an access PIN number
IP connected device
Configurable backlighting intensity
Audible response to touch
Silent alarm activation
Power-over-Ethernet (PoE) (or 12V power supply)
Stylish, discreet design; robust materials and construction
IP53 protection rating
Fast, easy installation
High sensitivity of the touch layer (0.1pF)
Regular automatic calibration (SmartSense Auto-tuning)
Water tolerance (no false touches on a damp surface)

2N Touch-Sensitive Keypad Module for 2N Verso and Access Unit

£229.62 GBP

£229.62 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

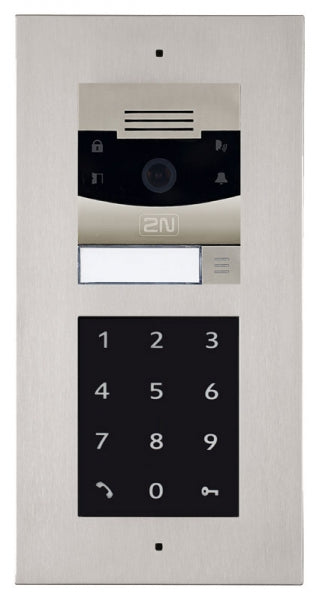

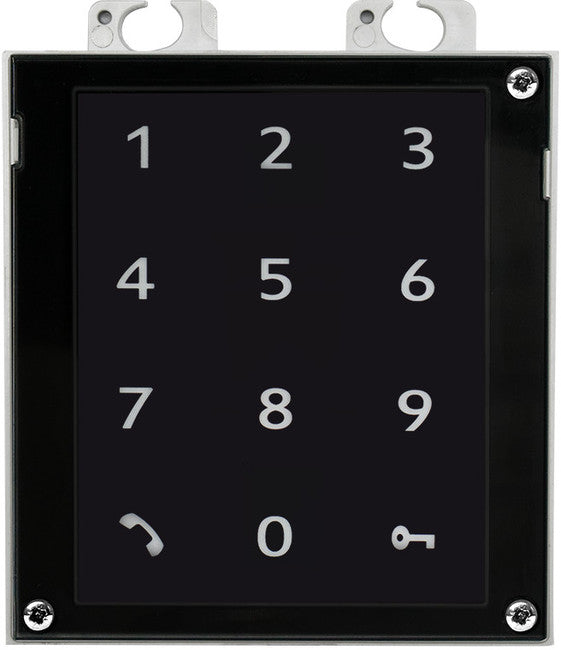

The 2N 9155047 Touch Keypad module is a sensitive capacitive touchscreen keypad module for the 2N IP Verso range. Simply enter a common or unique PIN code to open a door and gain access to the building. The capacitive touchscreen reliably registers each touch and evaluates if the entered PIN code is correct and this is signaled visually.
