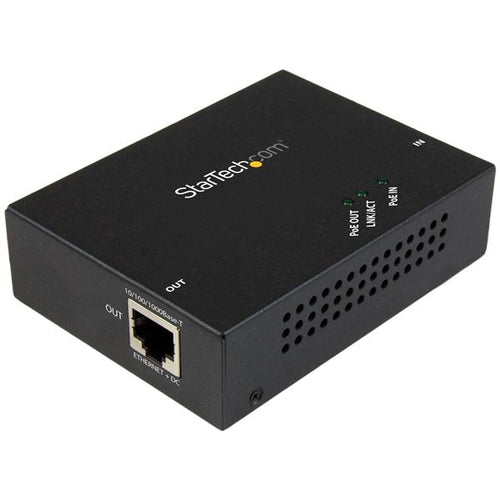

StarTech.com Gigabit PoE Extender

StarTech.com Gigabit PoE Extender

£108.08 GBP
Sale price: £108.08 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 52V to 56V Output Voltage
  • Surge Protection
Out of stock
EAN: 65030860895
SKU: V209699
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Maximum Data Transfer Rate: 2 Gbps (Full-Duplex)
  • Maximum Cable Length: 100 m (328 ft)
  • Flow Control: Half-duplex back-pressure, IEEE 802.3x pause frame for full-duplex
  • Surge Protection: EN61000-4-2 (ESD) - 2kV, EN61000-4-5 (Surge) - 2kV
  • Compatible Networks: 10/100/1000 Mbps
  • Auto MDIX: Yes
  • Full Duplex Support: Yes
  • Jumbo Frame Support: No
  • Switching Architecture: Store-and-Forward
  • MTBF: 50,000 Hours
  • 1 - Gigabit Power over Ethernet extender
  • 1 - instruction manual

Datasheet

Overview

This Gigabit PoE+ extender spans your Power over Ethernet (PoE) device over longer distances, letting you double the 100m limitations of a traditional PoE infrastructure. Now you can connect your Gigabit PoE device up to a maximum of 200m away, so it’s easy to install a remote IP camera or access point. Plus the extender can be daisy-chained for more scalability. Need more distance? This convenient PoE+ repeater maximizes range and flexibility by extending your PoE connection by an extra 100m (330ft), while providing 24-watt power output to compatible devices

Technical Features
  • Extended deployment: Deploy and access Gigabit PoE-powered devices (PD) over longer distances
  • Distance extension: Extend PoE PDs by daisy-chaining up to four extenders for a total range of up to 500m (1640ft) with reduced power output at each connection
  • Design: Compact, wall-mountable, rugged metal housing for convenience and reliability
  • Protection: 2kV ESD and surge protection
  • Installation: Plug-and-play setup with no power adapter required
  • PoE standard: IEEE 802.3at 30W input to IEEE 802.3at/af 24W output
  • Output voltage: 52V to 56V
  • Safety: Automatically detects connected PD to prevent damage if incorrectly installed
