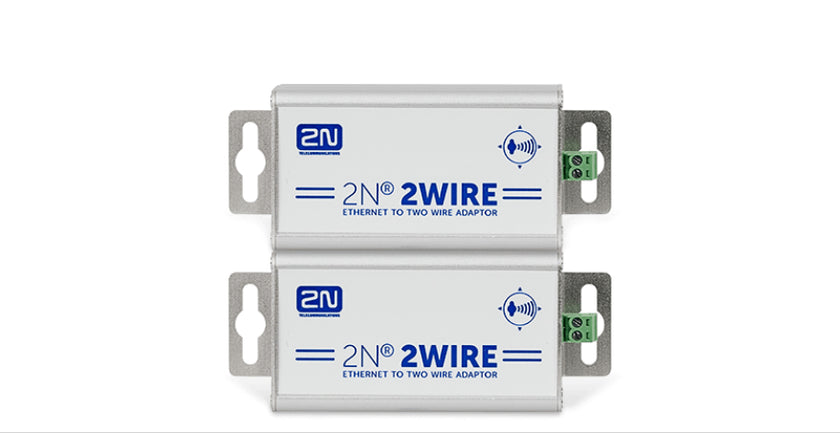

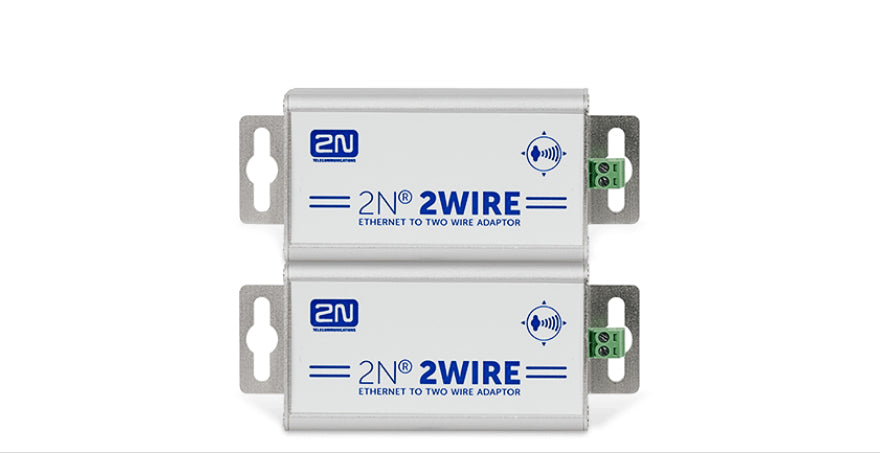

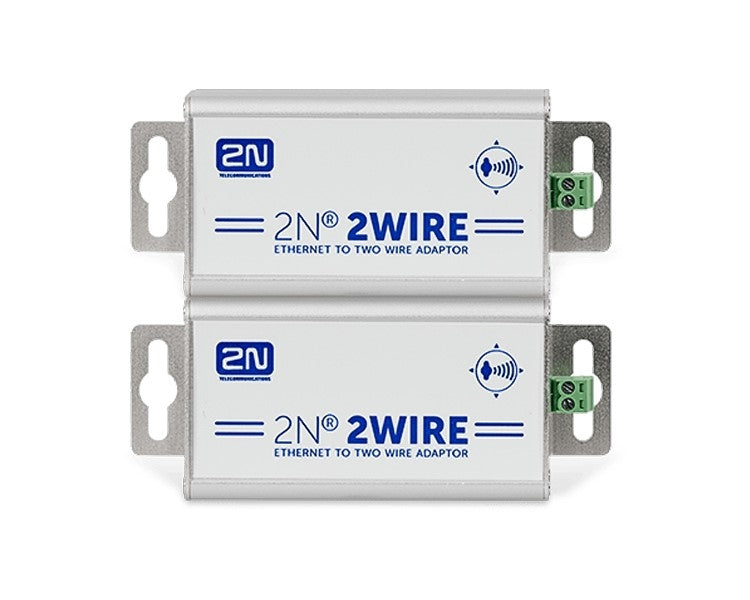

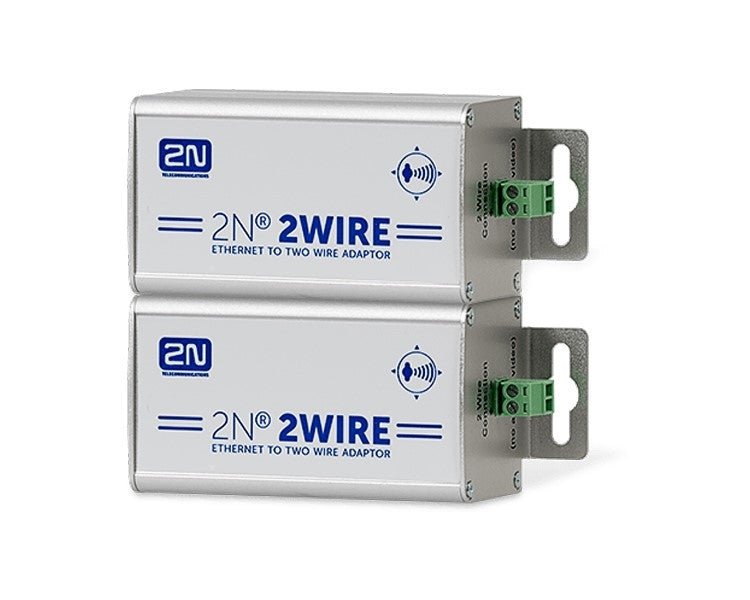

2N 2Wire Set of Two Convertors (9159014)

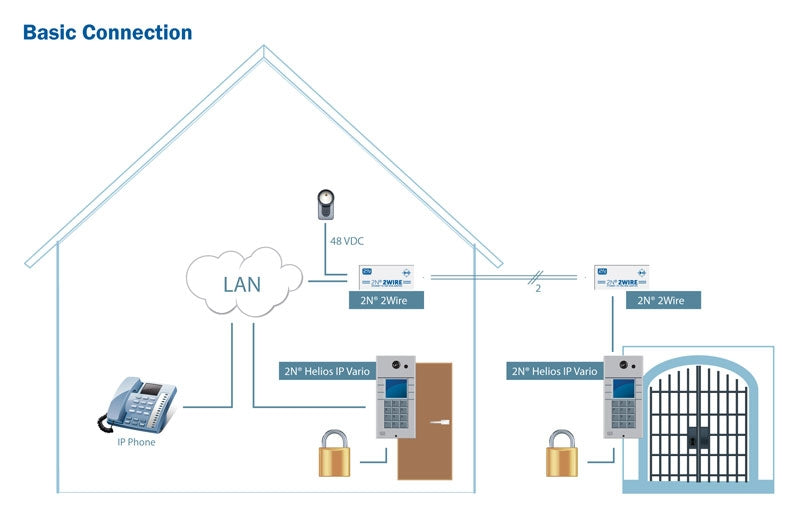

The 2N 9159014 is a set of two convertors that allows you to connect any IP device installed at a location with no IP infrastructure to your network. You connect the two convertors via the existing analogue distribution mains from the original doorbell or intercom and then connect your IP device to one of these, e.g. an IP intercom, and connect the other to a switch. The advantage is that you don’t have to configure anything. In addition, you only need one analogue cable for the transmission of audio, video and to supply power.

• Ethernet including PoE over 2 wires: Connect any IP device using a two-wire or coaxial cable, even in an analogue environment or where IP infrastructure is limited.
• Long reach: Power IP-connected devices via PoE up to 220m, twice the maximum Ethernet cable length.
• Robust aluminium housing: Durable aluminium construction resists mechanical damage.
• Reliability: More reliable than alternatives such as WiFi connections.
• Power supply: Includes an adapter with selectable US/UK/EU plug.
• Easy installation: No configuration needed—simply plug a 2N® 2Wire unit at each cable end and power at least one side.
• Universal Ethernet extension: Provides Ethernet in locations with no IP network; supports any IP device (e.g., 2N IP intercoms).
• Utilise existing cabling: Use current wiring without installing new cables or performing construction work.
• Screw-in connectors: High-quality connectors prevent cable loosening for greater reliability.
