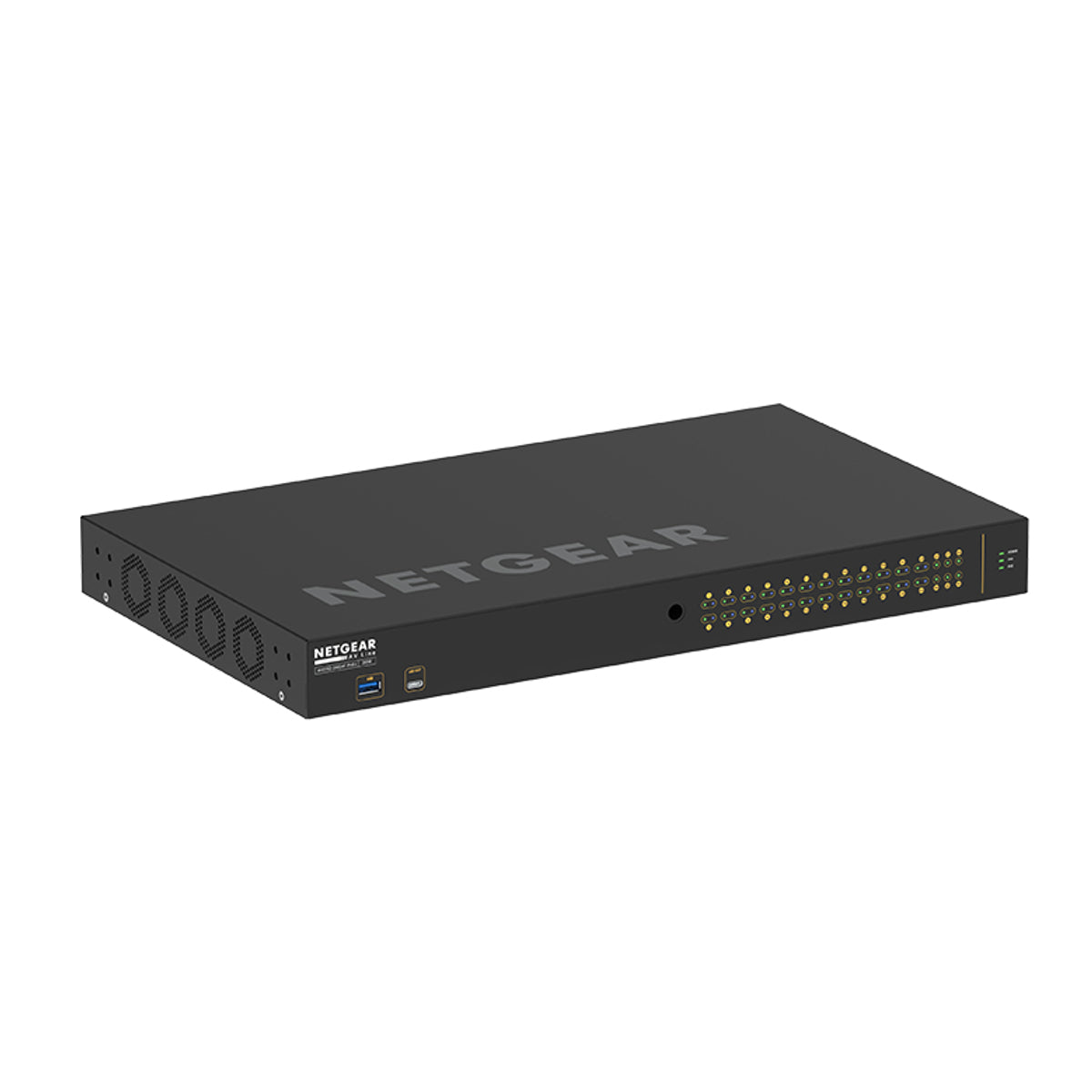

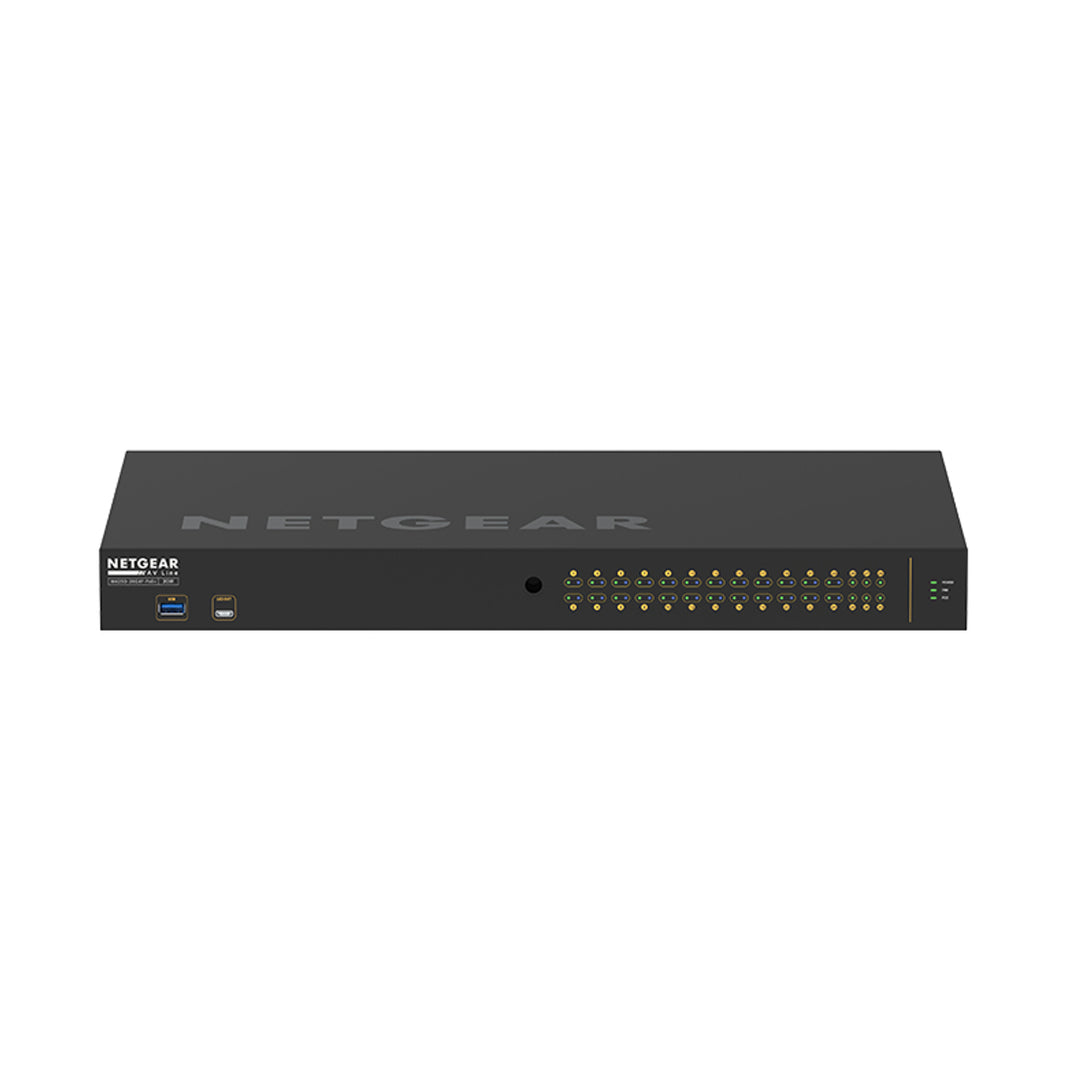

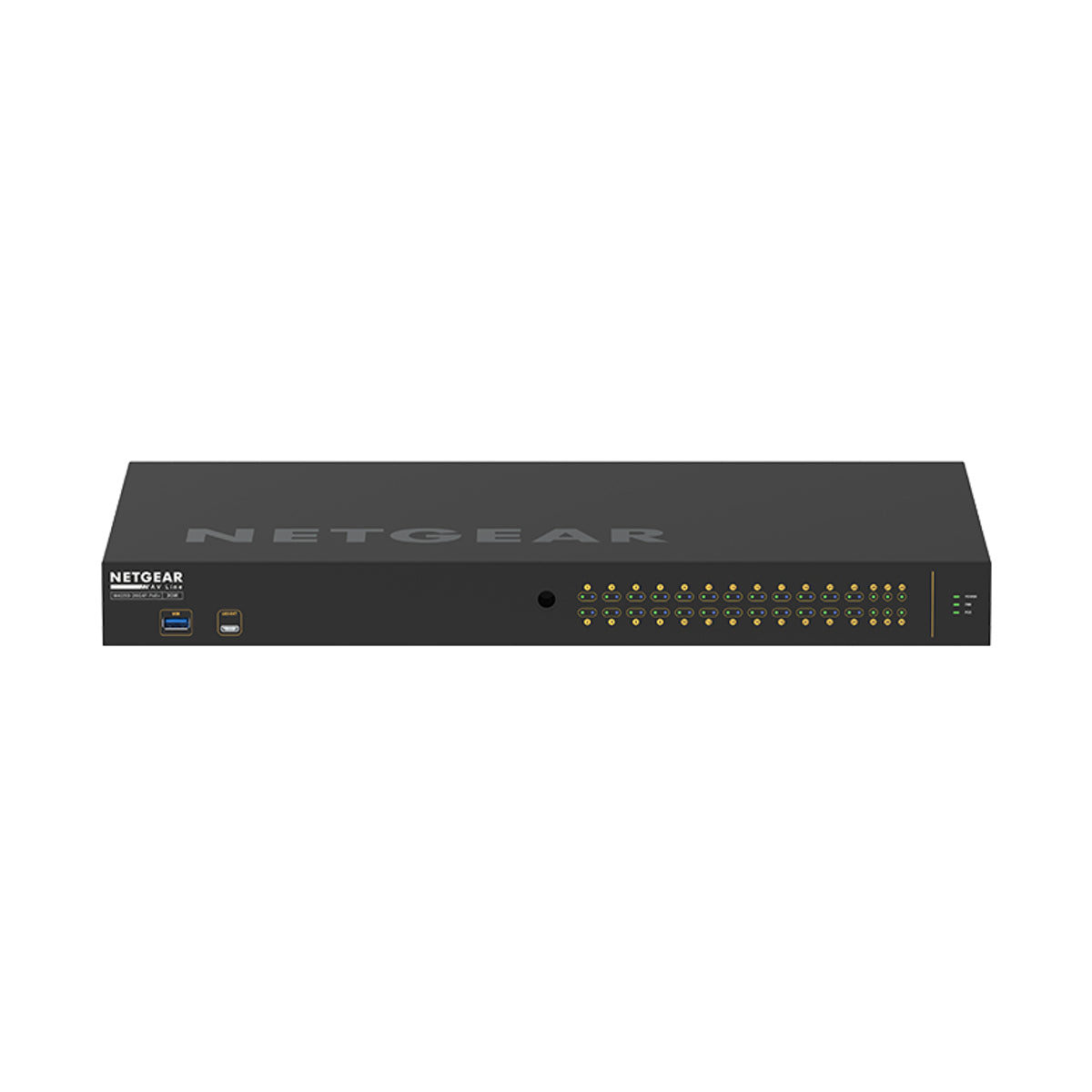

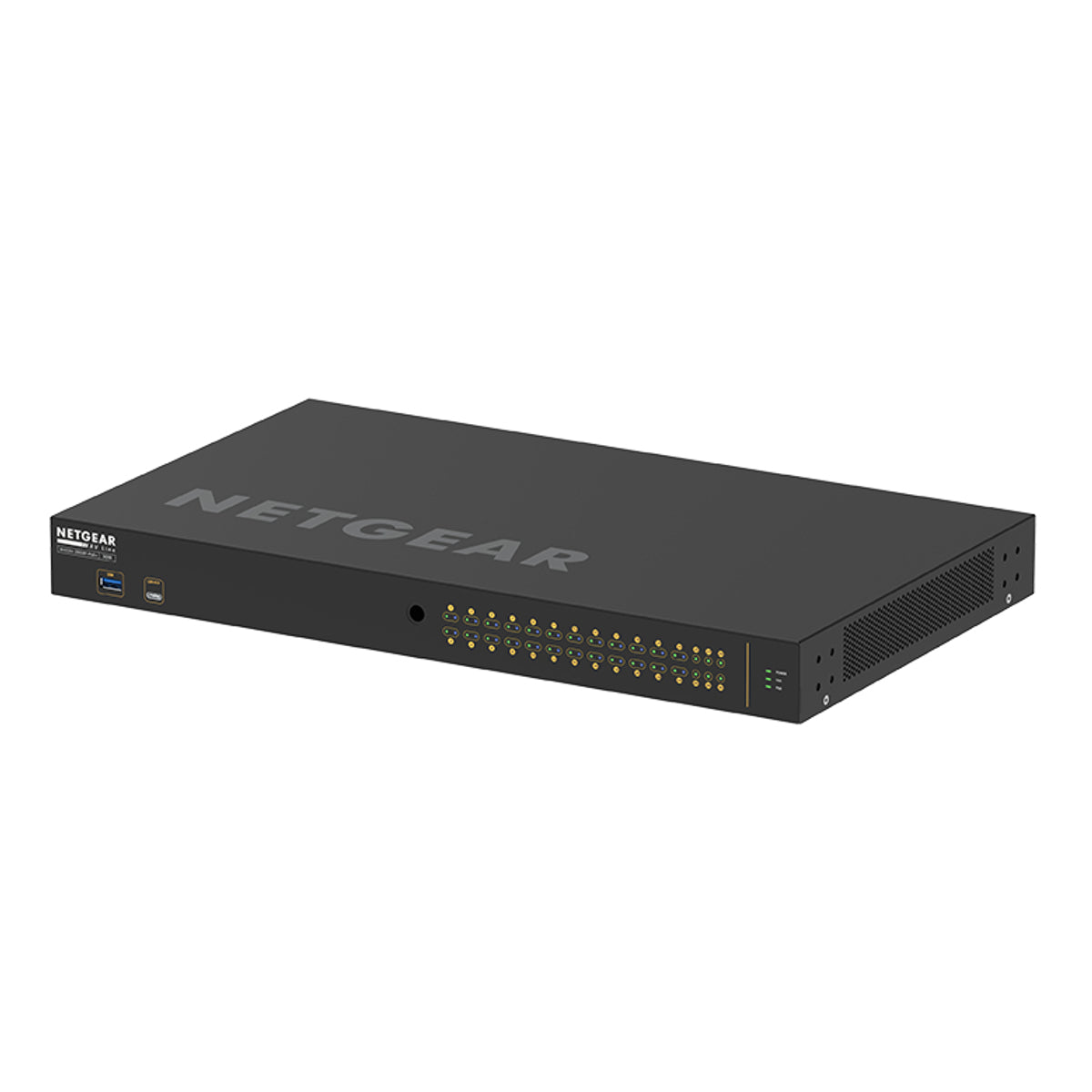

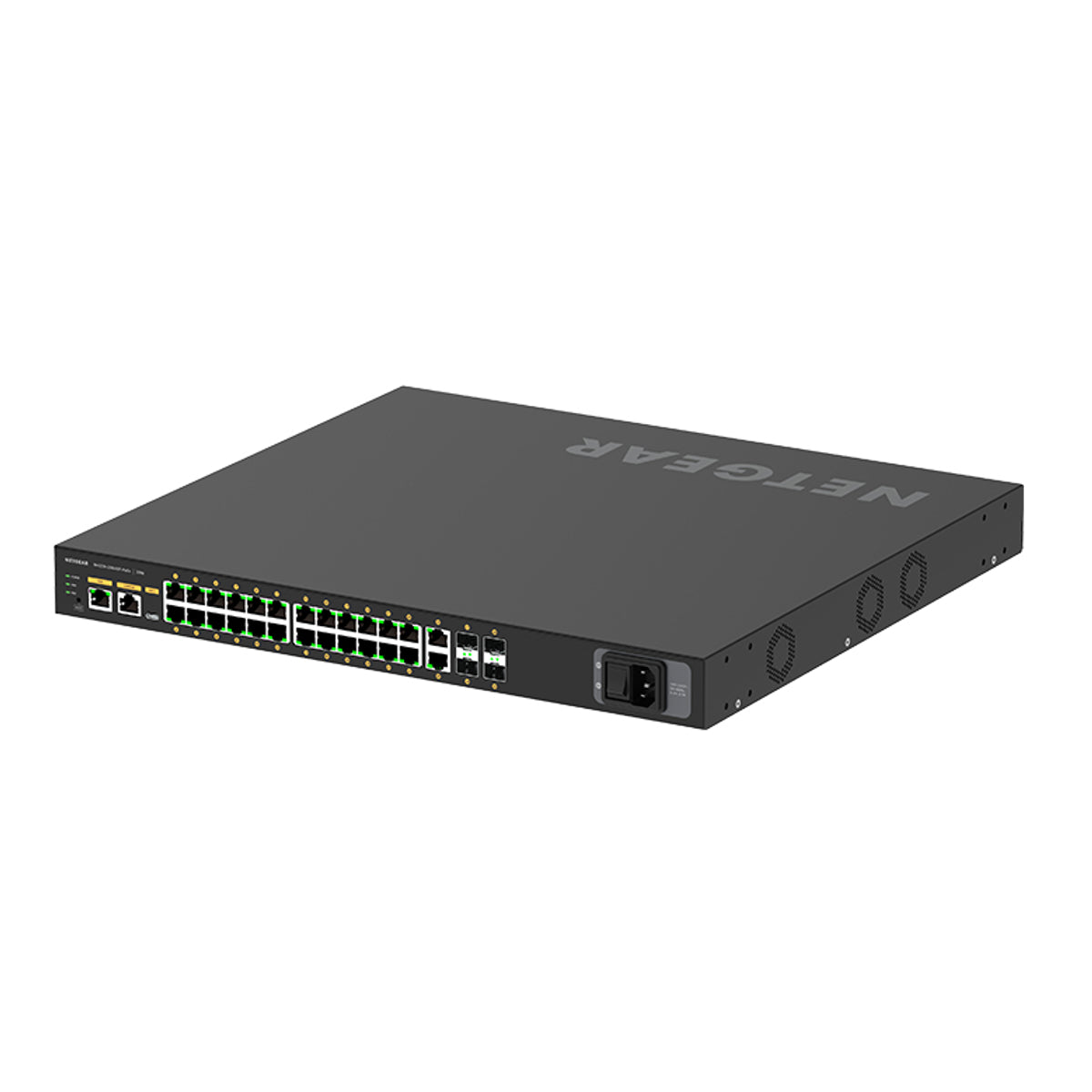

NETGEAR AV GSM4230P-100EUS

NETGEAR AV GSM4230P-100EUS

£1,795.63 GBP
Sale price: £1,795.63 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Video Profiles Built-in
  • Web-based GUI Interface
In stock, 31 units
EAN: 606449151671
SKU: GSM4230P-100EUS
Vendor: Netgear
Order within xx hours for delivery on
Quantity
  • Product Colour: Black
  • Rack Mounting: Yes
  • Form Factor: 1U
  • Height: 43.2 mm
  • Width: 440 mm
  • Depth: 257 mm
  • Weight: 4.3 kg
  • NETGEAR GSM4230P-100EUS, Managed, L2/L3, Gigabit Ethernet (10/100/1000)

Datasheet

Overview

The NETGEAR M4250-26G4F-PoE+ (GSM4230P-100EUS) is a fully managed Layer 2/Layer 3 switch engineered specifically for professional audio/video over IP (AV over IP) applications. It features a total of 30 ports, including 24 Gigabit Ethernet PoE+ ports with a 300W power budget to power various AV endpoints, 2 additional 1G ports, and 4 SFP fiber ports for high-speed uplinks. Designed for clean integration into AV racks, all power and Ethernet ports are located on the rear, and it supports flexible mounting options including standard, recessed, and VESA mounts. The switch comes pre-configured for immediate, out-of-the-box use with common protocols like Dante, NDI, and AES67, and offers an intuitive, dedicated AV web-based GUI for easy customization with port-based profiles. With features like quiet operation (selectable fan modes) and NETGEAR IGMP Plus™ automation for simplified multicast, this switch provides a reliable, scalable, and user-friendly solution for demanding AV environments.

Technical Features
  • Out-of-the-Box Configuration: Pre-configured for out-of-the-box use
  • Multicast Support: NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations
  • AV Web GUI: Dedicated AV web-based GUI interface
  • AV Professional Interface: Unique interface with color-coded, port-based profiles
  • Audio Profiles: Profiles for common audio protocols
  • Audio Configuration: Quickly assign profiles for Dante, AES67, and AVB audio (AVB requires separate license)
  • Video Profiles: Built-in video profiles
  • Video Configuration: Profiles for NVX, SVSI, Q-SYS, and Dante video assignable to ports
  • Automatic Configuration: Auto-trunk and auto-lag for star topology with other M4250 switches
  • Deployment Options: Multi-switch audio or single-switch video deployments
  • Ports & PoE: 24x1G PoE+ with 300W budget, 2x1G additional ports, 4x1G SFP fiber uplinks
  • Switching: Layer 2 / Layer 3 switching
  • Switching Engine: Common L2/L3 engine across all M4250 models
  • Control Methods: Web GUI, console, telnet, and SSH
  • Network Features: Static, RIP, PIM routing, DHCP Server, and PTPv2
