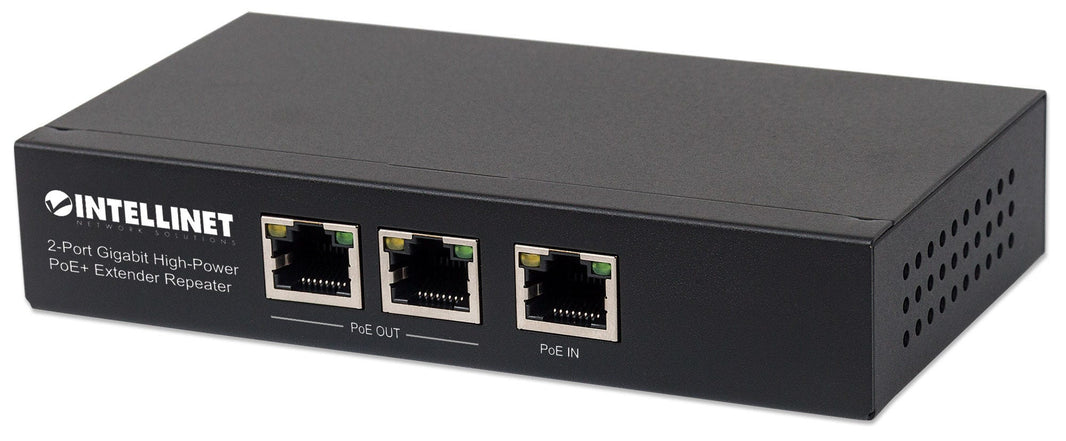

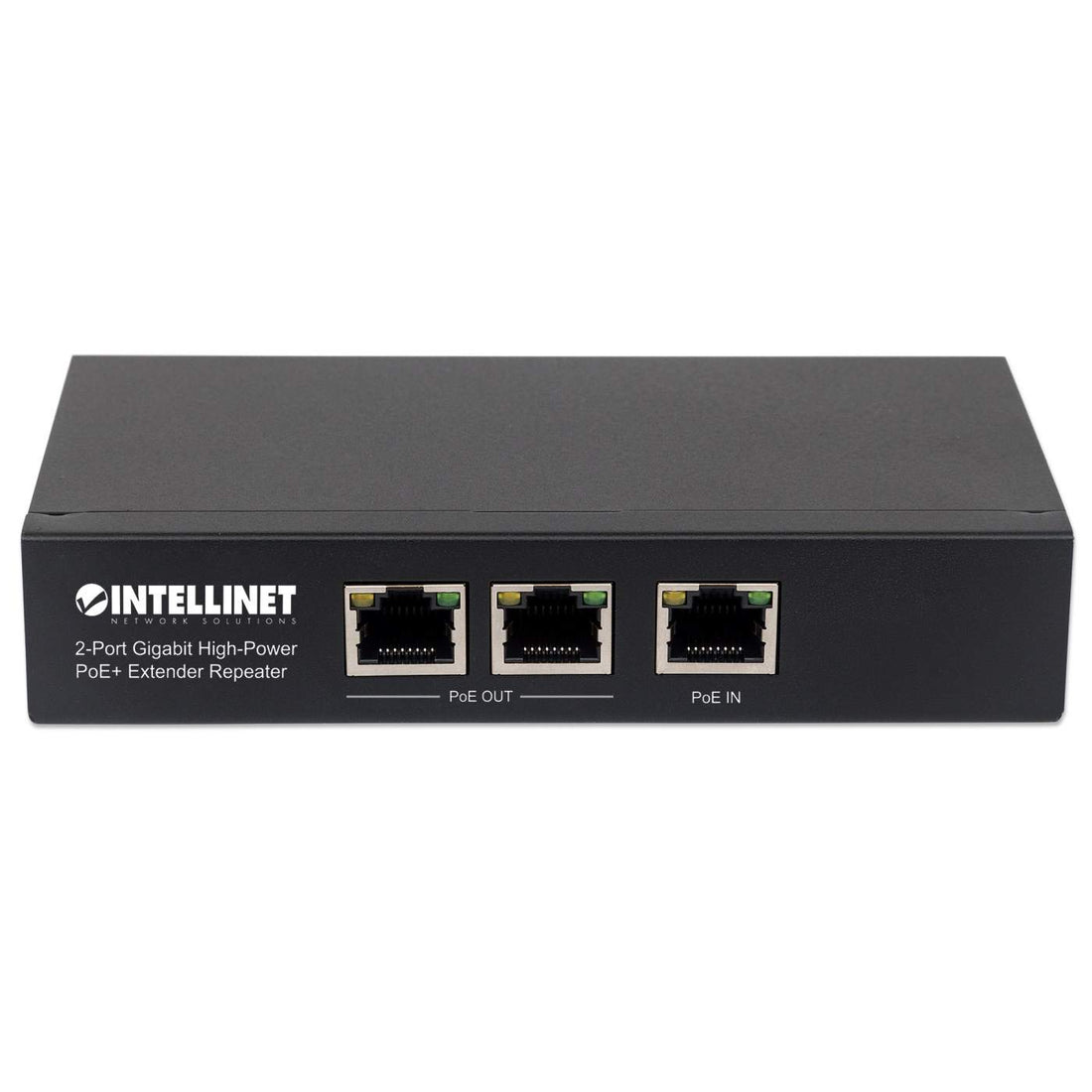

Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal

Name: Intellinet 2-Port Gigabit High-Power PoE+ Extender Repeater, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), metal
Brand: Intellinet
SKU: 561266
Price: 65.99 GBP
Availability: OutOfStock

£65.99 GBP

£65.99 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Supports 2048 MAC address entries
PoE-Powered 3-Port Gigabit Switch

Out of stock

EAN: 766623561266

SKU: 561266

Vendor: Intellinet

Order within xx hours for delivery on

Product Specification

Dimensions: 77 (L) x 140 (W) x 28 (H) [mm] / 3.03 (L) x 5.51 (W) x 1.1 (H) [in]
Weight: 0.24 kg (0.53 lbs.)
Operating Temperature: -10 – 45°C (14 – 113°F)
Storage Temperature: -40 – 70°C (-40 – 158°F)
Operating Humidity: 5 – 90% RH, non-condensing

Box Content

• 2-Port Gigabit High-Power PoE+ Extender Repeater
• Instructions

Documents

Datasheet

Technical Features

Extend the range of a PoE connection – The Intellinet Network Solutions 2-Port Gigabit High-Power PoE+ Extender extends connection distances from a PoE source to two output devices up to 100 m (328 ft.) via Cat5e or Cat6 cable.
No external power required – Draws power directly from the PoE input, eliminating the need for an additional power supply.
Reduce wiring costs – Avoid the expense of running AC power lines by delivering both data and DC power through existing Cat5e/6/6a cabling.
Power over Ethernet 802.3at compliant – Supports the IEEE 802.3at protocol, forwarding data at Gigabit speeds and providing up to 30 watts of input power to connected IEEE 802.3af/at devices.
Extended total connection distance – Each cable run can reach up to 100 m (328 ft.), for a total distance of 200 m (656 ft.) between the PoE source and devices.

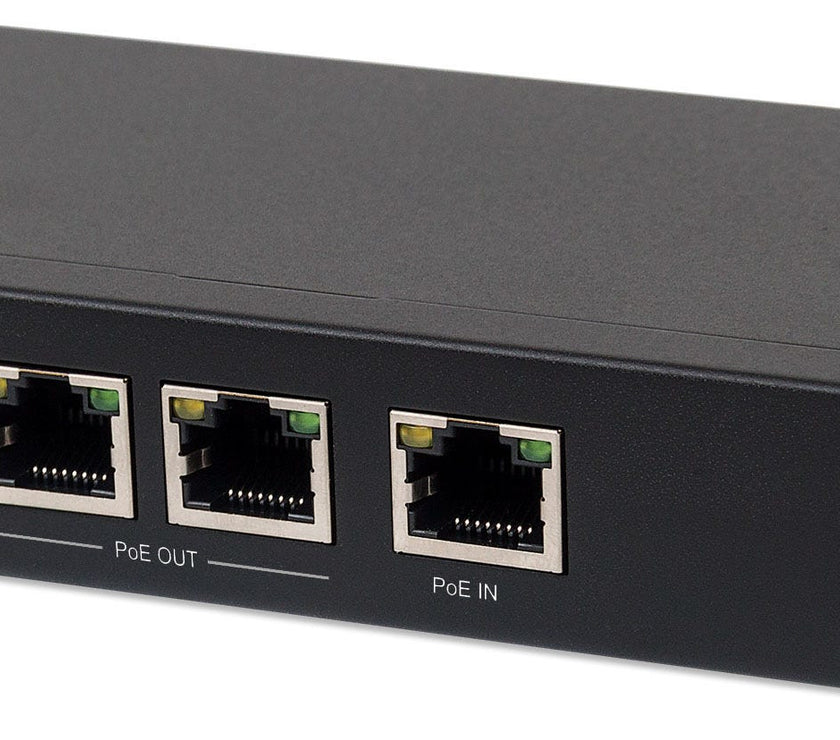

Simple installation – Connect the “PoE In” port to a PoE injector or PoE switch, and the “PoE Out” ports to PoE devices such as a VoIP phone or network camera. No configuration required.
