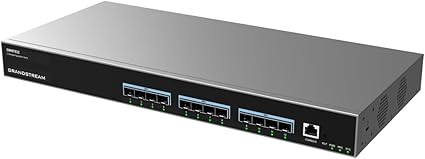

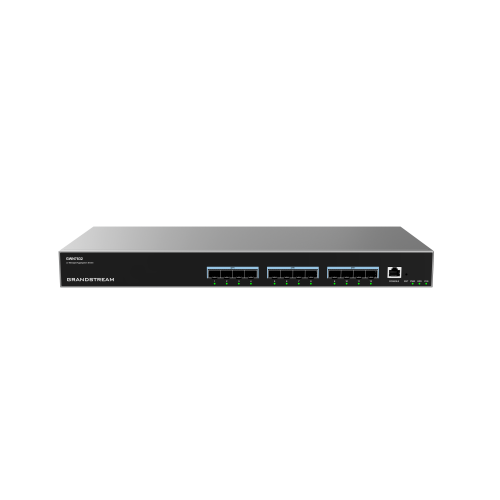

GWN7832 12PORT 10G SFP L3 SWITCH

GWN7832 12PORT 10G SFP L3 SWITCH

£236.02 GBP
Sale price: £236.02 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Security: DoS (Denial of Service)
  • Network Protection: ARP Inspection
In stock, 2 units
EAN: 6947273704614.00
SKU: GWN7832
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Max Supported Modules SM-1G/MM-1G: 24, RJ45-1G: 12 (interval), SM-10G/MM-10G: 4, RJ45-10G: 2 (interval)
  • Console 1
  • Power Supply Integrated: 60W, External RPS: 12V/60W
  • Auxiliary Ports 1x Reset Pinhole
  • Forwarding Mode Store-and-forward
  • Throughput / Switching 120Gbps / 240Gbps
  • Forwarding Rate 80.352 Mpps
  • Packet Buffer 16Mb
  • Network Latency <2µs
  • MAC & VLAN Support 32K MAC, 4K VLANs, 802.1Q tagging, Voice VLAN
  • Routing Static, RIP/RIPng, OSPF/OSPFv3, Policy Routing (pending)
  • Multicast IGMP/MLD Snooping, MVR (pending)
  • QoS/ACL SP, WRR, WFQ, Traffic Shaping, 4K ACL
  • DHCP Server, Relay, Option 82/60/160/43
  • Maintenance SNMP, RMON, LLDP/LLDP-MED, Syslog, Diagnostics
  • Security HTTPS, SSH, Telnet, 802.1X, AAA, DoS, ARP Inspection, DHCP Snooping
  • Loop Protection BPDU, Root (pending), Loopback (pending)
  • Mounting Desktop, Wall, Rack (kits included)
  • LED Indicators System: 1x tri-color, Power: 2x bi-color, Data: 12x bi-color
  • Fans 2
  • Operating Temp / Humidity 0–45°C, 10–90% RH (Non-condensing)
  • Storage Temp / Humidity -10–60°C, 10–90% RH (Non-condensing)
  • Dimensions (L x W x H) 440mm x 200mm x 44mm
  • 1 × GWN7832 Switch
  • 1 × Power Adapter
  • 1 × Quick Installation Guide
  • 1 × Rack Mount Kit
  • 1 × Grounding Cable
  • 1 × Screws and Anchors

Datasheet

Overview

The GWN7830 Series are Layer 3 aggregation managed switches that allow enterprises to build scalable, secure, high performance and smart business networks that are fully manageable and support maximum capacity. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP/MLD Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7830 series can be managed in several ways, including the local Web user interface of the switch, and CLI, the command line interface. This series is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform. With complete end-to-end quality of service, flexible security settings, and support for maximum network capacity, the GWN7830 Series provides enterprise-grade Layer 3 aggregation switches ideal for medium-to-large deployments



Technical Features
  • 12 Gigabit SFP+ ports
  • Supports deployment in IPv6 and IPv4 networks
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Embedded controller to manage switch; GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise network management platform
  • Built-in QoS allows for prioritisation of network traffic
