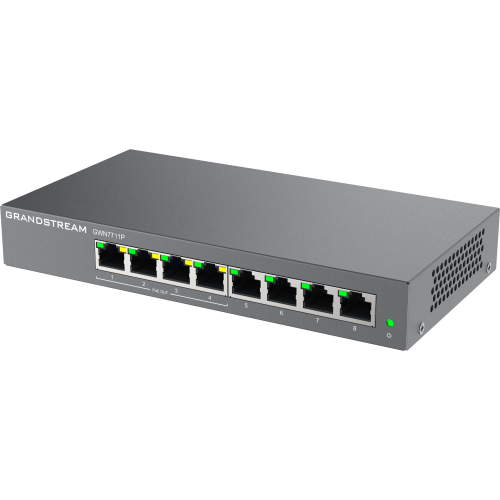

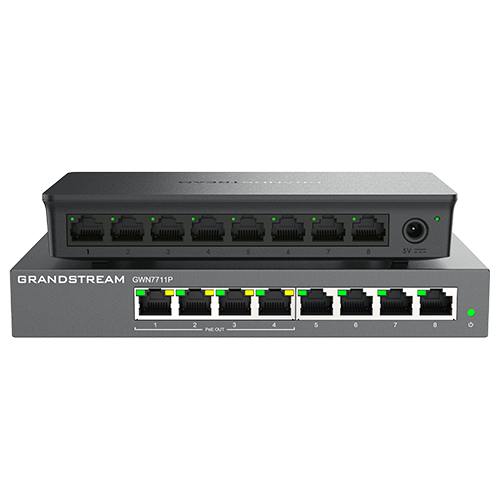

GWN7711P 8 port (4xPOE)L2-Lite Managed POE Network Switch

GWN7711P 8 port (4xPOE)L2-Lite Managed POE Network Switch

£53.76 GBP
Sale price: £53.76 GBP Regular price: £0.00 GBP
(VAT Incl.)
In stock, 26 units
EAN: 6947273704980.00
SKU: GWN7711P
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • PoE Budget: Port 1-4 support 802.3af/at standard PoE out - Up to 30W per port PoE out, total 60W Power Budget; Port 1-4 support 24VDC Passive mode via UI - Port 1 (up to 30W): 24V 4pair VH mode 1.3A 4pair VH mode Pins: 1,2,4,5 (+); 3,6,7,8 (-); Port 2-4 (up to 15W): 24V 2pair mode, 0.65A 2pair normal mode Pins: 4,5 (+); 7,8 (-)
  • PoE Standard: IPv4, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
  • Switching Capacity: 8x Gigabit Ethernet Ports
  • Power Supply: External 48-53.5VDC/1.22A
  • Mounting Options: Desktop/Wall-mount
  • Dimension (W x D x H): 190 x 100 x 28mm
  • Weight: 0.44kg
  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • GWN7711P 8 port (4xPOE)L2-Lite Managed POE Network Switch
  • Quick Installation Guide

Datasheet



Overview

The GWN7711(P) series are Layer 2 lite managed network switches that allow small-to-medium businesses to build scalable, secure, and smart business networks that are easy to use and cloud manageable. They support VLAN for flexible and sophisticated traffic segmentation, QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The GWN7711P provides 4 PoE ports for smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. This PoE-capable model can also support 24V DC passive PoE-out mode. The GWN7711(P) Series are easy to manage through the local web user interface and the cloud using the Grandstream Device Management System (GDMS). By supporting both desktop and wall-mount installation, the GWN7711(P) Series is suitable for hotels, home offices, small-to-medium businesses, and more. Thanks to a comprehensive suite of customizable switching features, available 24V DC passive PoE mode, and easy cloud management, the GWN7711(P) series are the ideal managed network switches for small-to-medium sized deployments







Technical Features
  • 8 Gigabit Ethernet ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
  • Supports Loop Detection, Cable Test, and Port Mirror to quickly locate network faults
  • IGMP snooping to improve multicast forwarding efficiency
  • LLDP for automatic discovery, provisioning and management of endpoint devices
  • GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platforms; Embedded controller to manage switch
  • Broadcast/Multicast/Unicast Storm Control to monitor traffic levels
  • Built-in QoS allows for prioritization of network traffic
