GWN7710R 6-Port Outdoor L2 Lite Managed Switch

GWN7710R 6-Port Outdoor L2 Lite Managed Switch

£96.62 GBP
Sale price: £96.62 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Security: DHCP Snooping
  • Network Reliability: Supports STP/RSTP
In stock, 14 units
EAN: 6947273705246.00
SKU: GWN7710R
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Specification IPv4, IEEE 802.3i/u/ab/x/1p/af/at
  • Gigabit Ports 6
  • PoE Ports (PoE Models) 5

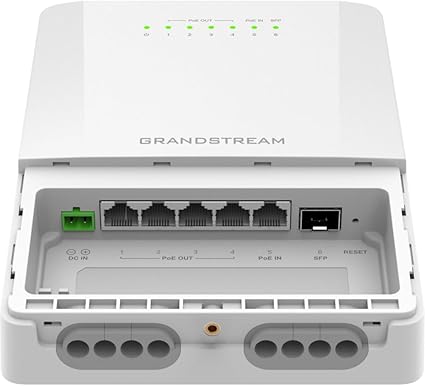

  • Port Features 5x Gigabit Ethernet Ports, 1x 1G/2.5G SFP Port
  • PoE Configuration - Standard Mode: Port 1–4 up to 30W each - Passive Mode: Port 1: 4-pair 48V DC up to 60W / 24V DC up to 30W, Port 2–4: 48V DC up to 30W / 24V up to 15W
  • LED Indicators - System On: Green, Link/Activity: Green, PoE 48V: Orange, PoE 24V: Blue, LED indicator switch supported
  • Switching Capacity 15 Gbps
  • Jumbo Frame Support 2K to 15K
  • GWN7710R switch
  • Quick installation guide

Datasheet


Overview

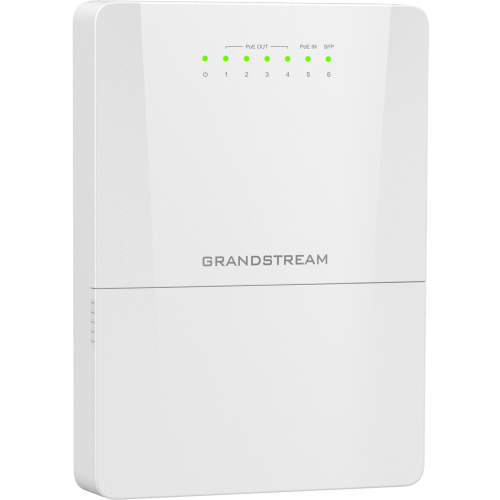

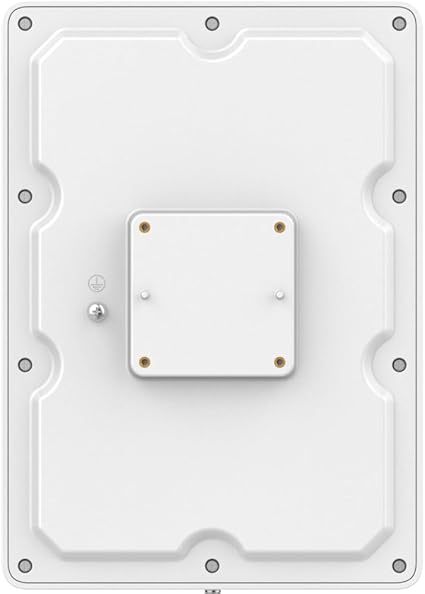

The GWN7710R is a 6-Port (5GE+1SFP) Outdoor Lite Managed PoE Switch with a professional outdoor shell design, IP66 dustproof and waterproof which can easily cope with rain, snow, high temperatures and other harsh weather conditions. The GWN7710R can build scalable, secure, high-performance, easy to use and manage business networks in scenic locations, hotels, restaurants and other similar areas. It supports not only flexible and complex traffic segmentation by VLAN, but also Port-Based, DSCP/802.1p QoS priority management modes, as well as bandwidth control and Storm Control, greatly improving the overall network performance.The GWN7710R integrates PoE power supply and PoE power receive, which results in multi-port long-distance PoE power supply while extending the data transmission distance. It can be managed in a variety of ways, including the local web user interface, GWN Manager and GDMS Networking. The compact body of GWN7701R and its support for pole, DIN-Rail and wall-mounted installation make it the ideal management network switch for both indoor and outdoor areas.


Technical Features
  • 5 Gigabit RJ45 ports (4 PoE output ports, 1 PoE input port)
  • IEEE 802.3 at/af or 24V/48V DC passive PoE out, Up to 60W on Port 1 and up to 30W on Port 2-4; Supports PoE Watchdog function
  • SFP Fiber Port for long-distance transmission
  • DHCP Snooping - Only allow DHCP packets from trusted ports to keep the enterprise DHCP environment safe
  • IP66 dustproof and waterproof rating; Wide operating temperature range: -40°C and 60°C
  • Supports convenient and intelligent local Web configuration, GWN Manager, and GDMS Networking
  • STP/RSTP to guarantee fast convergence, ensure network stability, and provide link load balance and redundancy
  • Built-in QoS allows for prioritization of network traffic
