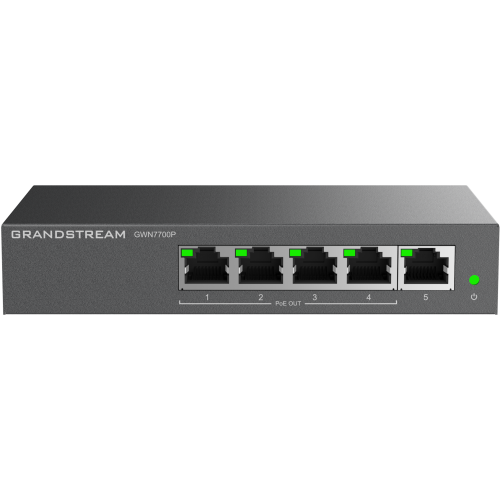

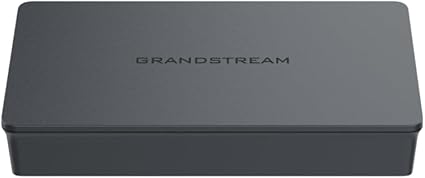

Grandstream GWN7700P UNMANAGED 5-PORT (4 X POE) SWITCH (METAL CASE)

Grandstream GWN7700P UNMANAGED 5-PORT (4 X POE) SWITCH (METAL CASE)

£42.77 GBP
Sale price: £42.77 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Long cable connection support
  • Auto MDI Port Function
In stock, 41 units
EAN: 6947273704515.00
SKU: GWN7700P
Vendor: Grandstream
Order within xx hours for delivery on
Quantity

  • Gigabit Ports: 5
  • PoE Ports (PoE Models): 4
  • Port Features: 5× 10/100/1000 Mbps RJ-45, AUTO Negotiation, AUTO MDI/MDIX
  • PoE Configuration: Ports 1–4: 802.3 af/at, 30W/port, 60W total, Priority: Port 4 → Port 1
  • Switching Capability: 10Gbps
  • Jumbo Frame: 9KB
  • Enclosure: Plastic (GWN7700), Metal (GWN7700P)
  • GWN7700P UNMANAGED
  • Quick Installation Guide
  • Switch
  • Power Adapter
  • QIG

Datasheet




Overview

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance.

Technical Features
  • Switch Type: Layer 2 Unmanaged PoE Switch
  • Ports: 5x Gigabit Ethernet (4x PoE)
  • Construction: Durable metal case
  • PoE Support: IEEE 802.3af/at compliant, up to 30W per port
  • Green Technology: Reduces overall power consumption
  • LED Indicators: Status indicators for power and network activity
  • Auto MDI/MDIX: Automatic crossover for all ports
  • Storm Control: Broadcast/Multicast/Unicast control (fixed to 100Mbps)
  • QoS: Supports Default Strict Priority for optimized traffic flow
