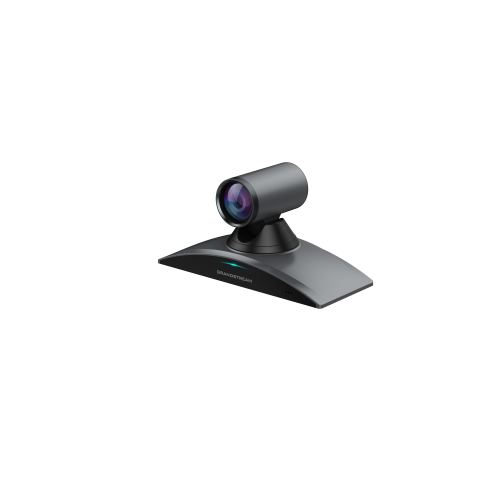

GVC3220 IP VIDEO CONFERENCE SYSTEM

GVC3220 IP VIDEO CONFERENCE SYSTEM

£1,280.83 GBP
Sale price: £1,280.83 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Video Quality: 5-way 1080P
  • Microphone: Desktop wireless mic
Out of stock
EAN: 6947273703099.00
SKU: GVC3220
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Protocols/Standards: SIP RFC3261, H.323, BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, OpenVPN®
  • MCU: Up to 5-way video conferencing (1080p @30fps), 9-way (720p @30fps)
  • Camera: 8MP CMOS (1/2.5"), 4K @30fps or 1080p @60fps
  • Lens: 12x optical zoom, ±30° tilt, ±170° pan, FOV 70.1°–7.4° (W), 40.7°–4.2° (T)
  • Network Interface: 1× RJ45 (10/100/1000 Mbps)
  • Wi-Fi: Integrated dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
  • Bluetooth: Integrated Bluetooth 5.0 + EDR
  • Video Outputs: 1x HDMI 2.0 (4K), 1x HDMI 1.4 (1080p)
  • Video Input: 1x HDMI 1.4a (1080p)
  • Audio: External Bluetooth/2.4G mic support, built-in speaker, 1x Line In/Out, 1x Media port
  • Remote Control: Bluetooth and infrared with multi-touch touchpad
  • Auxiliary Ports: 1x USB 3.0, 1x USB 2.0, 1x SD, 1x Reset
  • Voice Codecs: G.711μ/a, G.722, iLBC, Opus, G.722.1/c, G729A/B, RFC2833, SIP INFO
  • Video Codecs: H.264/H.265 BP/MP/HP, up to 4K @30fps, 8Mbps bit rate
  • Resolutions: 4K (1–8Mbps), 1080p (1–4Mbps), 720p (512Kbps–2Mbps)
  • Dual-Stream: BFCP, 4K@30fps + 1080p@15fps
  • Audio Features: AEC, ANS, AGC, PLC, CNG/VAD
  • Video Features: FEC, dynamic layout, picture-in-picture/outside-picture
  • Video Conferencing Platforms: SIP, H.323, Grandstream IPVideoTalk, Bluejeans, Zoom
  • Telephony Features: Hold, mute, downloadable phonebook, call waiting, call history, flexible dial plan
  • App Support: Microsoft Teams, Skype, Zoom, YouTube, API/SDK for Android 9.0 apps
  • QoS: Layer 2 (802.1Q, 802.1p), Layer 3 (ToS, DiffServ, MPLS)
  • Security: MD5/MD5-sess authentication, 256-bit AES, TLS, 128/256-bit SRTP, HTTPS, 802.1x
  • Multi-language: English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, and more
  • Upgrade/Provisioning: TFTP/HTTP/HTTPS, TR-069, AES-encrypted XML, USB/SD card auto-detect upgrade
  • Power: 100–240V AC input, 48V/1.35A output (64.8W)
  • GVC3220 video conference system
  • GMD1208 wireless microphone
  • Remote control
  • 4 AAA batteries
  • Universal power supply
  • Network cable (2 meters)
  • HDMI cables (1x 5 meters, 2x 1.5 meters)
  • Lens cleaning cloth
  • Bracket
  • Quick installation guide

Datasheet

Overview
The GVC3220 is a high-end video conferencing system that provides an interactive and immersive video conferencing environment to increase collaboration and productivity. The SIP-based GVC3220 provides flexibility to support any SIP or H.323 video conferencing platform, including Grandstream’s IPVideoTalk Meetings. With IPVideoTalk, the GVC Option plan turns any meeting hosted on a GVC device into an online meeting that can be joined seamlessly by up to thousands of people from a web browser, mobile app or other GVC devices. The GVC3220 is based on Android 9.0 and offer s powerful features including 4K Ultra HD video, the ability to locally host up to 5-way 1080p video conferences, wireless screen-sharing capabilities, integrated Wi-Fi , Bluetooth and more. It comes equipped with the GMD1208 desktop wireless microphone to enhance audio quality and provide full room coverage for up to 5-meter pickup range. Thanks to its suite of powerful, high-end video collaboration features, support for 4k Ultra HD video, ease-of-use and platform flexibility, the GVC3220 is ideal for boardrooms, large conference rooms, auditoriums, classrooms and more

Technical Features
  • Video Quality: Supports up to 4K Full-HD video output
  • Operating System: Android 9.0
  • Screen Sharing: Remote video screen real-time control and PC screen sharing
  • Camera: 8MP CMOS sensor, wide-angle lens, 12x zoom, PTZ control
  • Wi-Fi: Integrated dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz) with Wi-Fi Multimedia support
  • Microphone: GMD1208 desktop wireless mic with 5m pickup range
  • Connectivity: 1x HDMI In, 2x HDMI Out, 1x Line In/Out, 1x Media port
  • Conferencing: 5-way 1080P or 9-way 720P video conferencing
