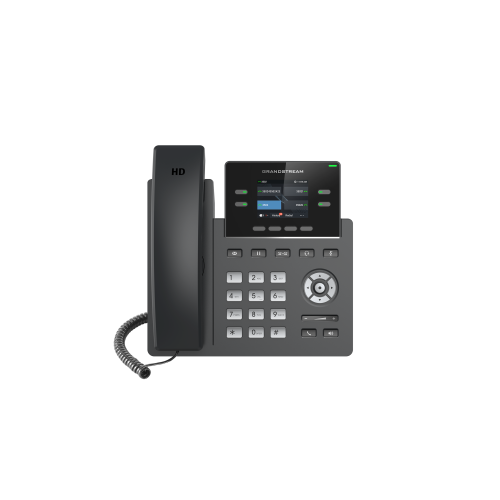

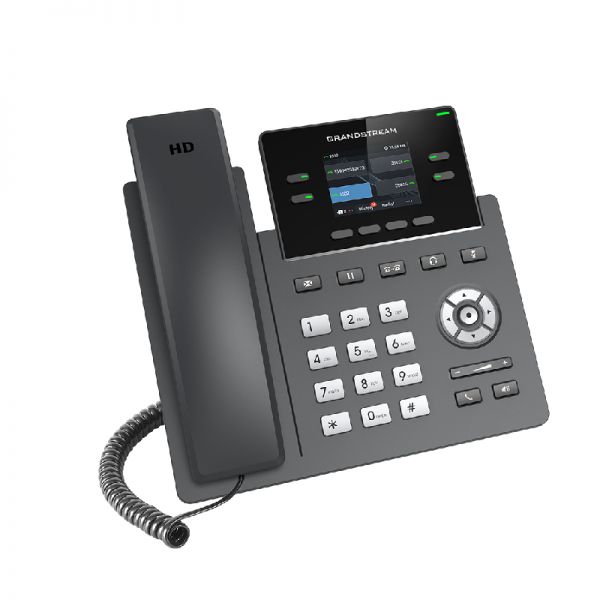

Grandstream GRP2612P POE IP PHONE (NO PSU)
- SIP IPv6
- Ethernet Wi-Fi
Features
| Number of programmable keys | 4 |
|---|---|
| Dual-Tone Multi-Frequency (DTMF) modes | In-band, Out-of band, SIP info |
| Phonebook sharing | Yes |
| Handset type | Wired handset |
| Firmware upgradeable | Yes |
| Volume control | Buttons |
| Product colour | Black |
Technical details
| Answering machine | Yes |
|---|---|
| Speakerphone | Yes |
| Quick start guide | Yes |
| Harmonized System (HS) code | 85171800 |
Security
| Security algorithms | 256-bit AES, MD5, SRTP, SSL/TLS |
|---|---|
| Password protection type | Supervisor, User |
Design
| Product type | IP Phone |
|---|
Phone features
| Call transfer | Yes |
|---|---|
| Call log entries | 1000 |
| Lines quantity | 2 lines |
| Conference call | Yes |
| Call waiting | Yes |
| Call pick up | Yes |
| Call park | Yes |
| Call hold | Yes |
| Call forwarding | Yes |
Display
| Touchscreen | No |
|---|---|
| Display resolution | 320 x 240 pixels |
| Display diagonal | 6.1 cm (2.4") |
| Display | TFT |
Camera
| Front camera | No |
|---|
Audio
| Voice codecs | G.711a, G.711u, G.722, G.723, G.726, G.729A, G.729B, OPUS, iLBC |
|---|
Network
| Ethernet LAN interface type | Fast Ethernet |
|---|---|
| Supported network protocols | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Bluetooth | No |
Ports & interfaces
| RJ-9 ports quantity | 1 |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| AC adapter output voltage | 5 V |
| AC adapter input voltage | 100 - 240 V |
Operational conditions
| Storage temperature (T-T) | -10 - 60 °C |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Width | 203 mm |
|---|---|
| Depth | 193 mm |
| Height | 52.1 mm |
Packaging content
| Cables included | LAN (RJ-45) |
|---|---|
| Number of handles included | 1 pc(s) |
Documents
Grandstream GRP2612P POE IP PHONE (NO PSU)
Overview
The GRP2612 is a powerful 4-line carrier-grade IP phone designed with zero-touch provisioning for mass deployment and easy management. It features a sleek design and a suite of next-generation features including Wi-Fi support (GRP2612W), 16 virtual multi-purpose keys (VPKs), a color LCD with swappable face plates for easy logo customization, and more. The GRP series includes carrier-grade security features to provide enterprise level security, including secure boot, dual firmware images, and encrypted data storage. For cloud provisioning and centralized management, the GRP2612 is supported by Grandstream’s Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor deployments of Grandstream endpoints.
