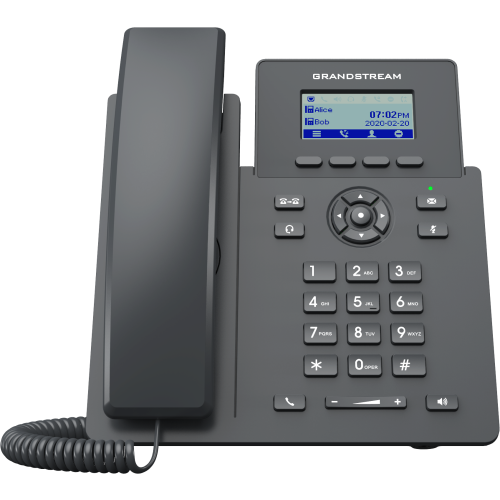

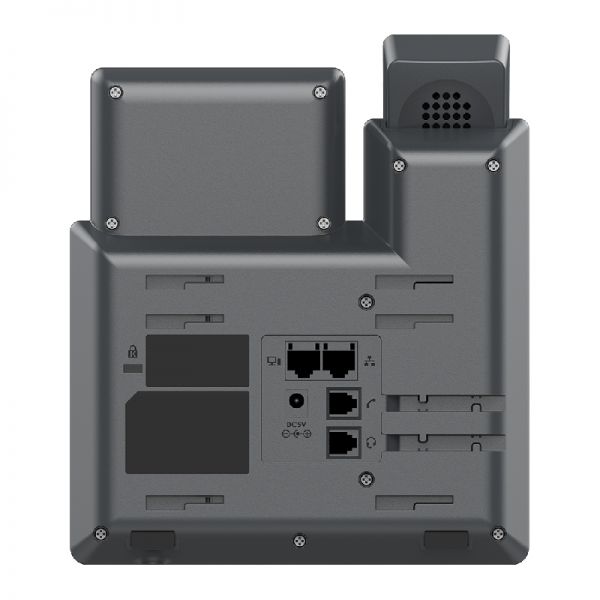

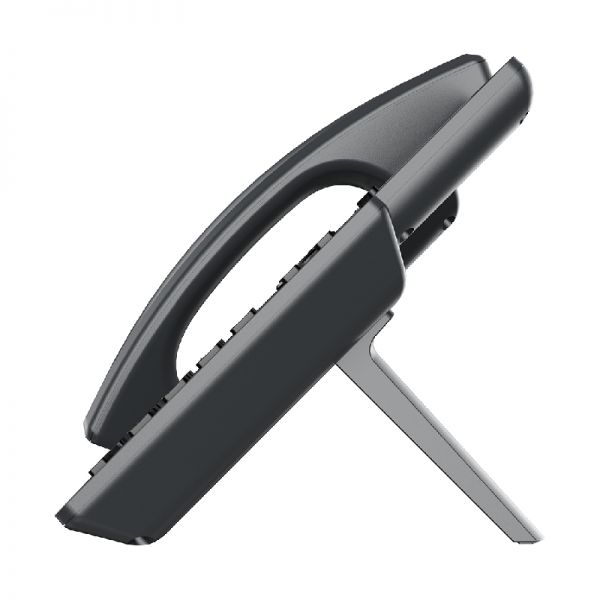

GRP2601P IP PHONE (NO PSU)

GRP2601P IP PHONE (NO PSU)

£37.26 GBP
Sale price: £37.26 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 2 SIP account, 2 lines
  • 5-way audio conferencing
In stock, 59 units
EAN: 6947273703112
SKU: GRP2601P
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Corded or Cordless: Corded
  • Technology: VoIP
  • Function Keys: With call key ,With hands free kit, With mute key, With navigation key, With redial key
  • Headset Port: With headset port
  • Power Source: Mains powered
  • Type of Display: Colour display
  • Connectivity: RJ45 connection
  • Wall Mounting: With optional wall mounting
  • ATEX Certified: Without ATEX certification
  • GRP2601 phone
  • Handset with cord
  • Base stand
  • Network cable
  • Quick Installation Guide

Datasheet

Overview

As a part of the GRP series of Carrier-Grade IP Phones, the GRP2600 series of Essential IP phones are equipped for zero touch provisioning for mass deployment and easy management. The line features a sleek design and a suite of next-generation features including 5-way voice conferencing, integrated PoE models, EHS support, and multi-language support. The GRP series includes carrier-grade security features to provide enterprise level security, including secure-boot, dual-firmware images, and encrypted data storage

Technical Features
  • Protocols/Standards:
    • SIP RFC3261
    • TCP/IP/UDP
    • RTP/RTCP, RTCP-XR
    • HTTP/HTTPS
    • ARP, ICMP
    • DNS (A record, SRV, NAPTR)
    • DHCP, PPPoE, SSH, TFTP, NTP
    • STUN, SIMPLE, LLDP
    • LDAP, TR069, SNMP
    • 802.1x, TLS, SRTP, IPv6
  • Network Interfaces:
    • Dual switched auto-negotiation 10/100 Mbps Ethernet ports
    • Graphic Display: 132 x 48 (2.41’’) LCD display
  • Feature Keys:
    • 4 XML programmable context sensitive soft keys
    • 5 navigation/menu keys
    • 8 dedicated function keys: MESSAGE (with LED), TRANSFER, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-
  • Voice Codecs and Capabilities:
    • G.729A/B, G.711µ/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS
    • In-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
    • VAD, AEC, CNG, PLC, AGC, AJB
  • Telephony Features:
    • Hold, transfer, forward, 5-way conference
    • Call park, call pickup
    • Downloadable phonebook (XML, LDAP, up to 2000 items)
    • Call waiting, call log (up to 800 records)
    • Off-hook auto dial, auto answer, click-to-dial
    • Flexible dial plan, hot-desking
    • Personalized music ringtones and music on hold
    • Server redundancy and fail-over
  • Auxiliary Ports:
    • RJ9 headset jack (EHS with Plantronics, Jabra, Sennheiser)
  • Base Stand:
    • Yes, 1 angle position available (45°)
    • Wall Mountable (*wall mount sold separately)
  • QoS:
    • Layer 2 QoS (802.1Q, 802.1P)
    • Layer 3 QoS (ToS, DiffServ, MPLS)
  • Security:
    • User and administrator level passwords
    • MD5 and MD5-sess based authentication
    • 256-bit AES encrypted configuration file
    • SRTP, TLS, 802.1x media access control
    • Secure boot
  • Multi-language:
    • English, Chinese, Korean, Japanese, German, Italian, French, Spanish, Portuguese, Russian, Croatian, and more
  • Upgrade/Provisioning:
    • Firmware upgrade via FTP/TFTP/HTTP/HTTPS
    • Mass provisioning using GDMS/TR069 or AES encrypted XML configuration file
  • Power & Green Energy Efficiency:
    • Universal Power Supply Input: 100-240VAC, 50-60Hz; Output +5VDC, 600mA
    • PoE: IEEE802.3af Class 1, 3.84W; IEEE802.3az (EEE) (GRP2601P Only)
  • Temperature and Humidity:
    • Operation: 0°C to 40°C
    • Storage: -10°C to 60°C
    • Humidity: 10% to 90% Non-condensing
