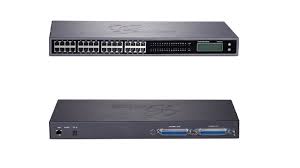

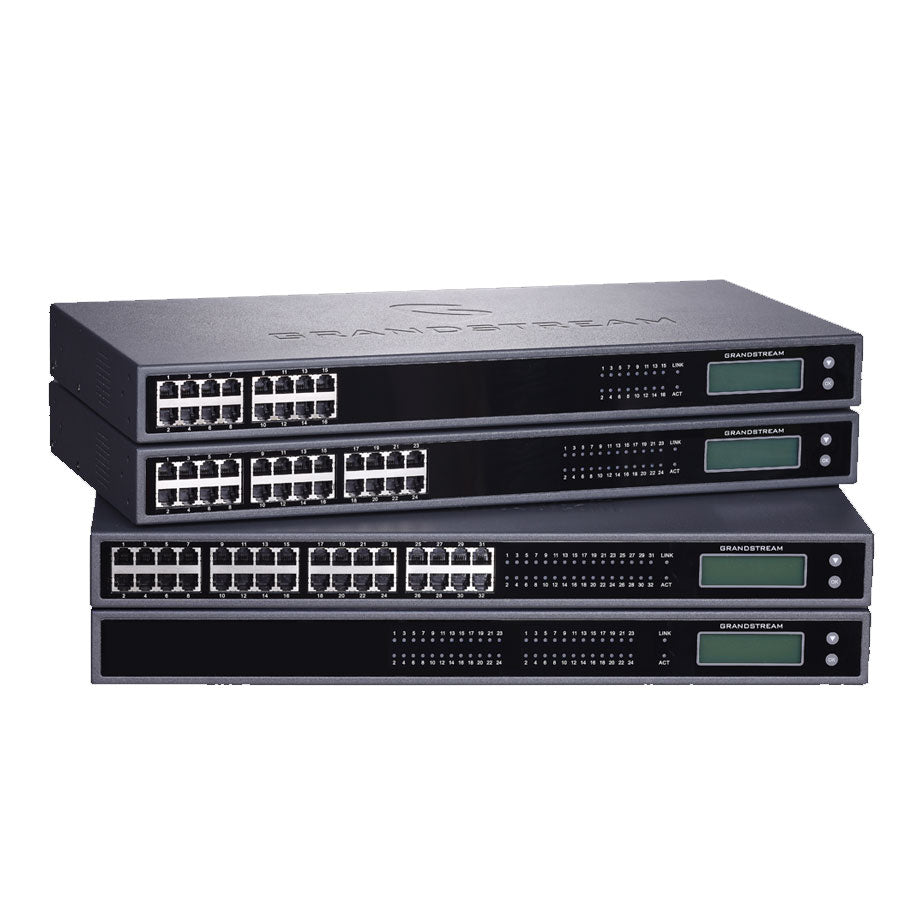

Grandstream GXW4232 32PORT FXS Gateway

Grandstream GXW4232 32PORT FXS Gateway

£526.85 GBP
Sale price: £526.85 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 3-Way Audio Conferencing: Supports simultaneous 3-way voice calls
  • SIP Accounts: Supports 2 independent SIP accounts
In stock, 14 units
EAN: 6947273704379
SKU: GXW4232
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Telephone Interfaces:

    16 x RJ11 & 1 x 50-pin Telco connector
    24 x RJ11 & 1 x 50-pin Telco connector
    32 x RJ11 & 2 x 50-pin Telco connectors
    2 x 50-pin Telco connectors
  • Network Interface: 1 x 10/100/1000Mbps auto-sensing RJ45 port
  • LED Indicators: LAN Link, LAN Activity, and Connection Per Telephone Port
  • Display: Backlit 128x32 graphic LCD with multilingual support
  • Voice-over-Packet Capabilities: Carrier-grade line echo cancellation, dynamic jitter buffer, modem detection, and auto-switch to G.711
  • Voice Compression Codecs: G.711, G.723.1, G.726 (40/32/24/16 kbps), G.729 A/B, iLBC
  • Fax over IP: T.38 compliant Group 3 Fax Relay up to 14.4 kbps, auto-switch to G.711 for Fax Passthrough, supports V.17, V.21, V.27ter, and V.29 fax relay standards
  • Telephony Features: Caller ID (display/block), call waiting, blind/attended transfer, call forwarding, do not disturb, 3-way conferencing, last call return, paging, message waiting indicator (NEON LED), stutter tone, and auto dial
  • QoS: DiffServ, ToS, 802.1P/Q VLAN tagging
  • SIP Server Profiles: 4 distinct SIP server profiles per system with independent SIP account per telephone port
  • Power Supply:

    Output: 12VDC, 5A; Input: 100–240VAC, 50–60Hz
    Output: 24VDC, 6.25A; Input: 100–240VAC, 50–60Hz
  • Dimensions: 440mm (L) x 185mm (W) x 44mm (D)
  • one device unit
  • one RJ45 Ethernet cable
  • one 12V 5A universal power adapter
  • mount

Datasheet

Overview

The Grandstream GXW4232 is a next generation analog VoIP gateway featuring high-density and performance. The gateway is fully compliant with SIP standards and interoperable with various VoIP systems, analog PBX and phones on the the market. The GXW4232 features multiple FXS analog telephone ports, superb voice quality, rich telephony functionalities, easy provisioning, flexible dialing plans, advanced security protection, and strong performance in handling high volume voice calls.

Technical Features
  • LED Indicators: LED indicator per port for Power, Network, Line status
  • Connectors: Relco 50-pin connectors and RJ11 telephone ports
  • Network Interface: Dual 10/100 Mbps RJ45 Gigabit Ethernet ports
  • Display: Backlit LCD graphic display
  • SIP Profiles: Supports up to 3 SIP profiles per system and independent SIP account per port
  • Codec Support: Comprehensive voice and fax codecs including G.711, G.723.1, G.726, G.729A/B, iLBC, and T.38
  • Audio Quality: High-performance line echo cancellation at carrier-grade level
  • Electrical Protection: Built-in over-voltage protection
  • Message Indicators: Supports voicemail indicators with VMWI, NEON LED, and message tone notifications
  • Security: TLS, SRTP, and HTTPS encryption for advanced call and data protection
  • Provisioning: Automatic provisioning via TR-069 or AES-encrypted XML configuration files
  • Port Capacity: 32 FXO ports
  • Mounting Options: Desktop and rack-mountable with front brackets
