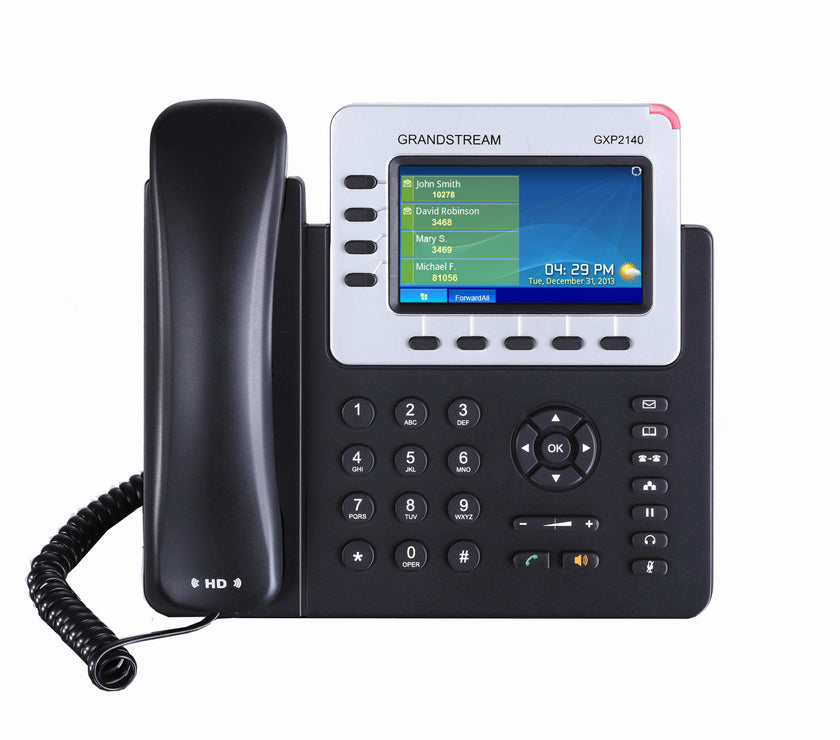

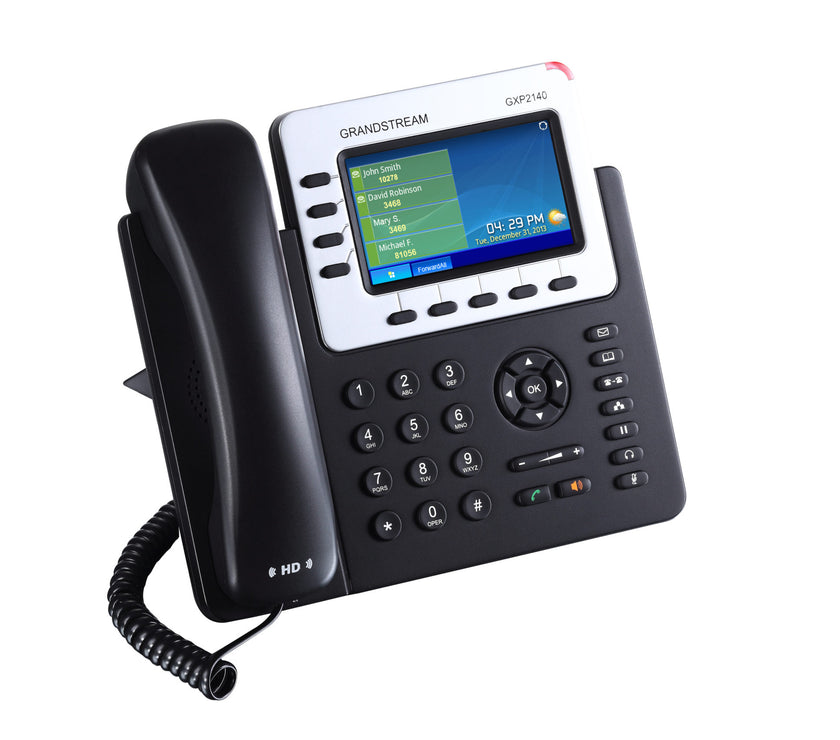

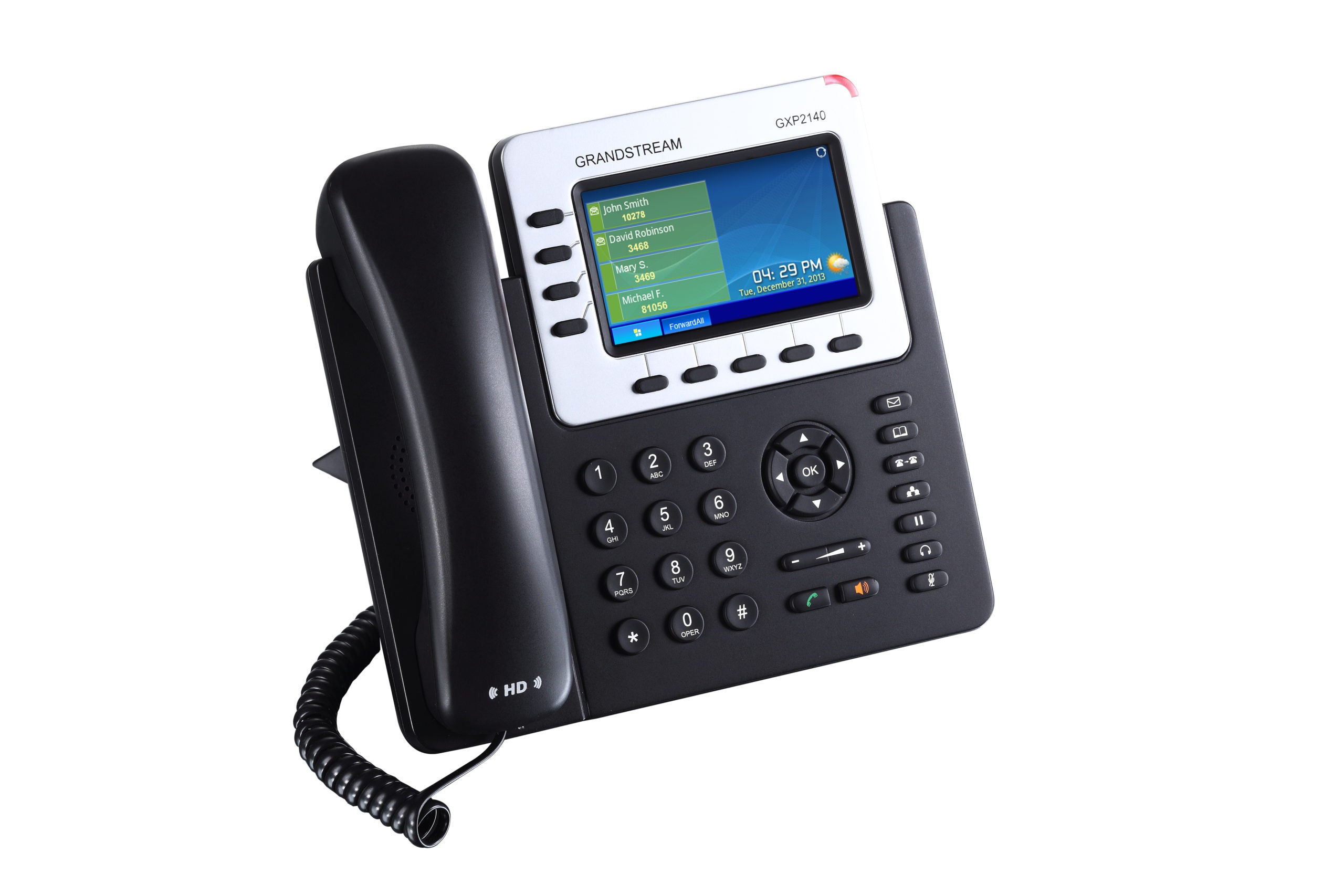

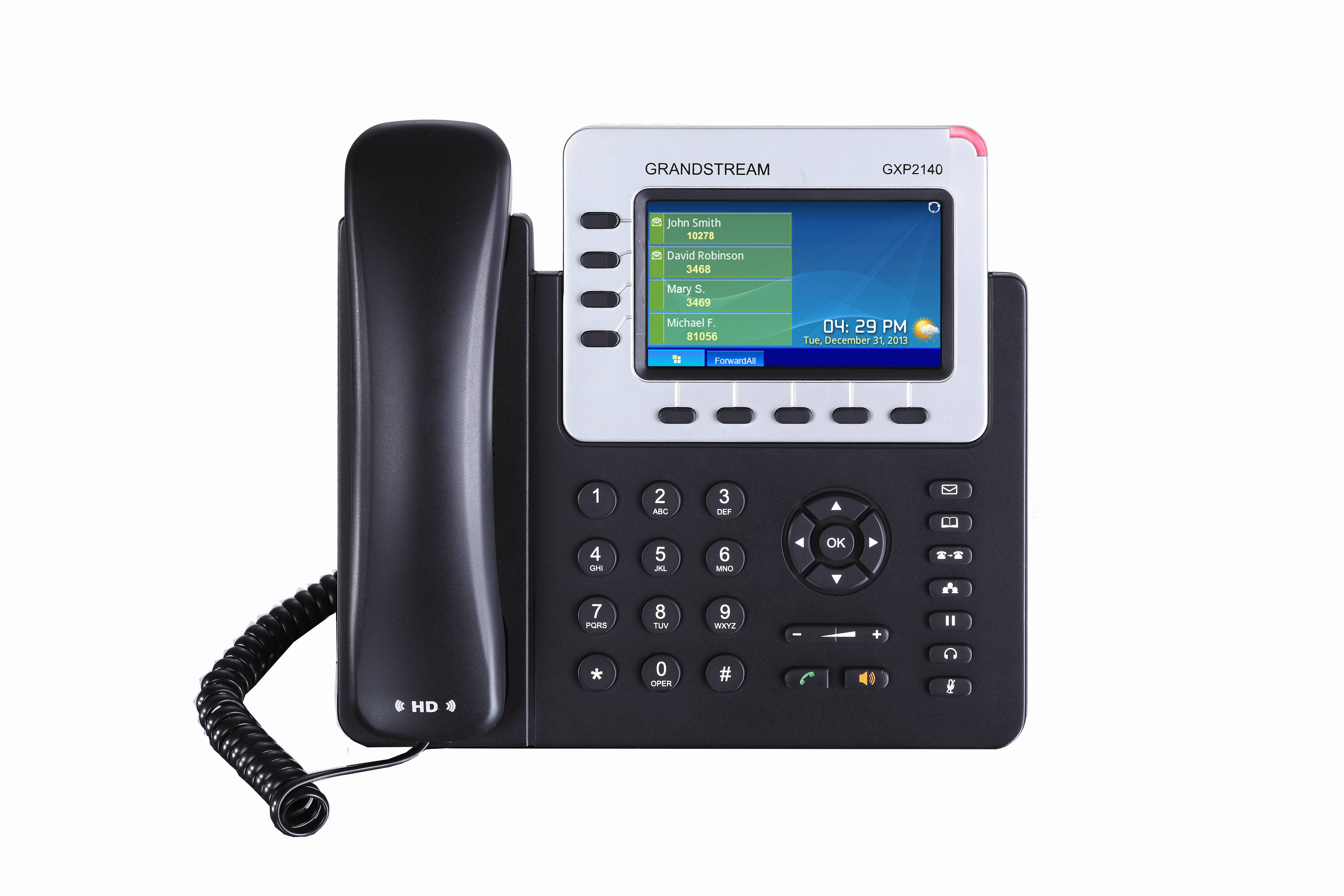

Grandstream GXP2140 4 lines IP Colour Phone

Grandstream GXP2140 4 lines IP Colour Phone

£168.48 GBP
Sale price: £168.48 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Audio quality: HD Audio
  • Feature: Multi-language
In stock, 109 units
EAN: 6947273701354
SKU: 962-00053-16A004
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Number of Lines: 4
  • Line Type: VoIP
  • SIP: Yes
  • Function Keys: With mute key, With redial key
  • Softkeys: 5
  • Phonebook Features: Downloadable up to 2000 entries
  • Speakerphone: Yes
  • Headset Port: With headset port
  • Type of Display: Colour display
  • Call Indicator LED: With LED call indicator
  • Connectivity: 1 USB port, Headset port, RJ9 connection
  • Wall Mounting: With optional wall mounting
  • ATEX Certified: Without ATEX certification
  • Phone handset
  • Phone cable
  • Power adapter
  • Ethernet cable
  • Quick start

Datasheet

Overview
The Grandstream GXP2140 is a versatile enterprise-grade IP phone. This Linux-based device features 4 SIP accounts, 5-way conferencing and integrated Bluetooth and USB ports. With a large 4.3" colour LCD screen and compatiblity with the GXP2200EXT expansion module, this phone offers users an easy to use, flexible communications solution.

Technical Features
  • Protocols: SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
  • Power: Integrated Power-over-Ethernet (802.3af)
  • Bluetooth: Bluetooth V2.1
  • Network Interface: Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
  • Connectivity: RJ9 headset jack, USB, extension module port
  • Display: 4.3 inch (480x272) TFT color LCD
  • Keys: 4 line keys with up to 4 SIP accounts, 5 programmable context sensitive softkeys, 5 navigation/menu keys
  • Function Keys: 11 dedicated function keys for MESSAGE (with LED indicator), Phonebook, transfer, conference, hold, headset, mute, send/redial, speakerphone, Volume +/-
  • Audio Codecs: Support for G.729A/B, G.711μ/a-law, G.726, G.722 (wide-band), in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
  • Call Features: Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance (SCA), Bridged-line-appearance (BLA)
  • Phonebook: Downloadable phonebook (XML, LDAP, up to 2000 items), call log (up to 500 records)
  • Customization: Screen customization, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized ringtones/music on hold, server redundancy and fail-over
  • Extras: Weather, currency, news widgets
  • GMI: Available for advanced custom application development (pending)
  • HD Audio: On handset and speakerphone
  • Module Support: Can power up to 4 GXP2200EXT modules (128x384 graphic LCD, 20 quick-dial/BLF keys with dual-color LED, 2 navigation keys, <1.2W per unit)
  • Mounting: 2 angle positions on base stand, wall mountable
  • Firmware & Provisioning: Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or encrypted XML configuration file
  • Languages: English, Arabic, Chinese, Croatian, Czech, Dutch, German, French, Hebrew, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Turkish
  • Environment: Temperature 0 ~ 40ºC (32 ~ 104ºF), humidity 10 ~ 90% (non-condensing)
  • Compliance: FCC Part 15 (CFR 47) Class B; EN55022/24, EN61000-3-2/3-3, EN60950-1, EN62479, AS/NZS CISPR 22/24, RoHS; UL 60950
  • Security: User/admin passwords, MD5 & MD5-sess authentication, AES secure config file, SRTP, TLS, 802.1x MAC
  • Power Adapter: Universal, Input: 100-240V; Output: +12V, 1.0A
  • Power Consumption: Max 6W (without modules), 10W (with 4 GXP2200EXTs)
  • Dimensions: 228mm (W) x 206mm (L) x 46.5mm (H)
  • Weight: Unit: 0.98kg; Package: 1.55kg
