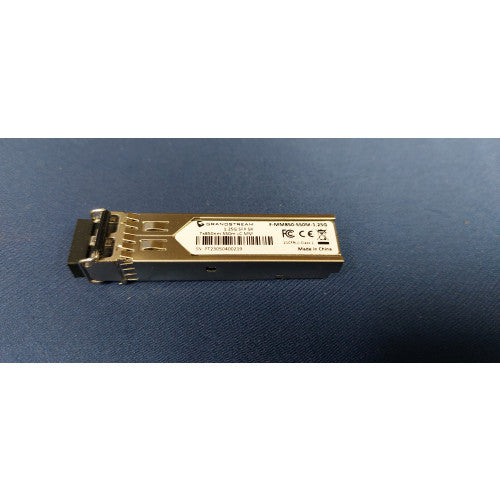

FIBRE MODULE MM 550M 1.25GB

FIBRE MODULE MM 550M 1.25GB

£15.84 GBP
Sale price: £15.84 GBP Regular price: £0.00 GBP
(VAT Incl.)
In stock, 5 units
EAN: 6947273704737.00
SKU: F-MM850-550M-1.25G
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Form Factor: SFP
  • Protocol / Bit Rate: Gigabit Ethernet
  • Media Type: Multimode
  • Reach: 0.550 km / 9 dB
  • Wavelength: 850 nm
  • Laser Type: VCSEL
  • Detector Type: PIN
  • Line Modulation: NRZ
  • Tx Power: -9 to -3 dBm
  • Rx Sensitivity: -18 dBm
  • Rx Overload Limit: -1 dBm
  • DDM: Yes
  • Connector: LC Duplex
  • Safety Class: Laser Class 1
  • Operating Temp. Range: 0°C to +70°C
  • Storage Temp. Range: -40°C to +85°C

FIBRE MODULE MM 550M 1.25GB

Overview

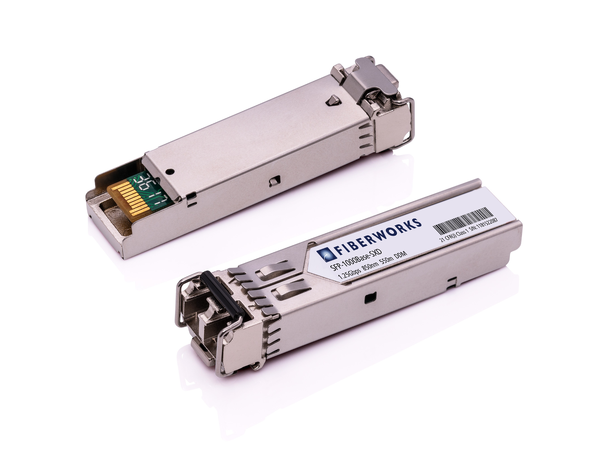

SFP Fiber Module (Multi-Mode, 850nm Wave-Length, 550-Meter, 1.25Gbps)


Technical Features
  • Compatible with Small-Form Pluggable (SFP) MSA
  • SFF-8472 Digital Diagnostic Function
  • Compatible with IEEE 802.3z
  • Compatible with ANSI specifications for Fibre Channel
  • Triple data-rate of 100 Mb/s, 1.25 Gb/s and 1.6025 Gb/s
  • Operating wavelength at 850 nm
  • Duplex LC connector type
  • 550 m transmission with 50/125 µm MM fiber
  • 270 m transmission with 62.5/125 µm MM fiber
  • 2 km transmission distance for 100Mb/s operation
  • Compatible with FCC 47 CFR Part, Class B Electromagnetic Interference (EMI)
  • Compatible with IEC 61000-4-2 and GR-1089-CORE Electrostatic Discharge (ESD)
  • +3.3V single power supply
  • Operating temperature 0ºC to 70ºC
