Fanvil-PA3

The Fanvil PA3 is s SIP Public Announcement system device for industry applications. The media stream transmission adopts standard IP/RTP/RTSP protocols. It has various functions and interfaces, such as Intercom, broadcast and recording, to adapt different application environments. Users can DIY the paging device easily. The design of the Fanvil PA3 fits to every installation, especially for public broadcasting. With HD Audio and function rich interfaces, the Fanvil PA3 can be used for real time and fix time MP3 broadcasting, and one touch intercom when connecting to the external devices. Its the perfect choice for users , they can DIY the paging device easily for the campus, shopping mall, railway station or building.

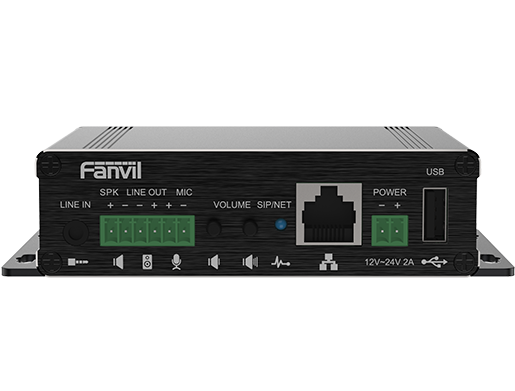

• Keypad - 3 Keys Including - 2 Volume Control Keys (Up/Down), 1 Reset Key (Soft Reset)
• DC Port x1 - DC Power Input, Port 2 Pin Terminal Socket
• RJ45 Port x1 - Connect the Network, PoE Enabled
• Blue LED x1 - SIP Status and Network Status
• Line in Port x1 - Connect Audio Line Input, Port - 3.5mm Standard Audio Port
• Line out Port x1 - Connect the Active Speaker, Out - Adjustable by Volume, max up to 1.2Vpp, Port - Terminal Socket
• MIC in Port x1 - Connect the MIC - Electret Condenser MIC is Recommended, Sensitivity: -38dB, Impedance 2.2k ohm, Bias Voltage 2.54Vpp, Port - Terminal Socket
• Passive Speaker Port x1 - Connect the Speaker, Output Power - 4Ω, PoE/10W, 12V/10W, 18V/20W, 24V/30W - Related to Power Supply Voltage, Wire Diameter - 18AWG or Higher, Port - Terminal Socket

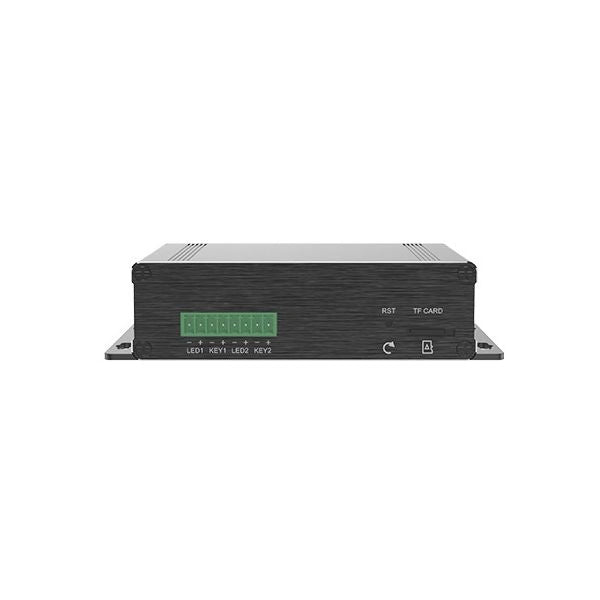

• DSS Keys Port x2 - Connect the External Buttons (Support LED), LED - Output 5.0Vdc/5mA, Port - 8 Pin Terminal Socket
• TF Card Slot x1 - Connect TF Card
• USB 2.0 Port x1 - Connect USB Flash Drive, Broadcast Local Audio Files
• DC Power Input - DC12V~24V/2A
• PoE Level - Class 4
