Fanvil-PA2-KIT

Fanvil-PA2-KIT

£103.80 GBP
Sale price: £103.80 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.

Plug-and-Play Intercom Kit

In stock, 16 units
EAN: 6937295601596
SKU: fanvil-pa2-kit
Vendor: Fanvil
Order within xx hours for delivery on
Quantity

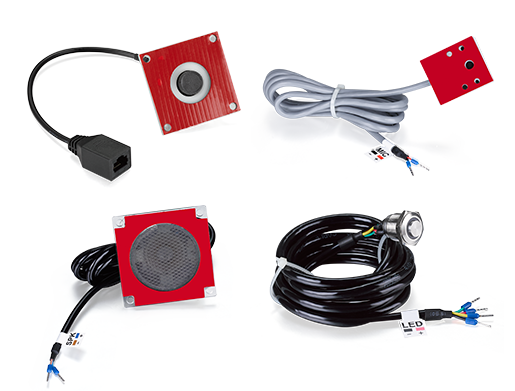

  • Includes: IP camera module, speaker module, microphone module, and button module.
  • Camera: 720p HD camera module; adjustable lens mounting height & angle; supports dual video stream; powered by PA2 LAN port (12 V DC).
  • Speaker: 5 W, 8 Ω loudspeaker (horn dia ~57 mm; height ~13.7 mm); 150 cm shielded cable.
  • Microphone: Waterproof/dustproof microphone; sensitivity −38 dB ±2; standard working voltage 3 V (max 10 V); output impedance ≤ 2.2 kΩ; 150 cm shielded cable.
  • Button Module: Weather-resistant push button for door-release / call initiation (plug-and-play).
  • Environment / Protection: Speaker and microphone modules are dustproof / waterproof (suitable for outdoor intercom use).
  • Compatibility: Designed specifically for Fanvil PA2 / PA2S SIP Paging Gateway (does not include the PA2 main unit).
  • 1 × 720p IP camera module (with adhesive / mounting)
  • 1 × 5W / 8Ω speaker module (with 150 cm shielded cable)
  • 1 × Waterproof microphone module (−38 dB ±2, 150 cm shielded cable)
  • 1 × Button module (weather-resistant push button)
  • 1 × Accessory mounting / screws / quick guide (varies by pack / vendor)

Datasheet

Overview

PA2-KIT is an accessory package for FANVIL SIP Intercom/Paging Gateway PA2. It includes IP camera module, speaker module, microphone module and button module. You can quickly build high quality audio/video intercom equipment by PA2-KIT, eliminating the components selection, matching test and reliability test cumbersome process.

Technical Features
  • Camera Module: 720p HD resolution, adjustable lens angle, dual video stream, powered via PA2 LAN port (12V DC)
  • Speaker Module: 5W output, 8Ω impedance, 57mm horn diameter, 150cm shielded cable
  • Microphone Module: Waterproof/dustproof, -38dB ±2 sensitivity, ≤2.2kΩ output impedance, 150cm cable
  • Button Module: Weather-resistant push button for call/door triggering
  • Compatibility: Designed for Fanvil PA2 / PA2S SIP Paging Gateway
  • Environmental Protection: Outdoor-ready, dustproof and waterproof components
  • Mounting: Adhesive or screw-based installation for all modules
