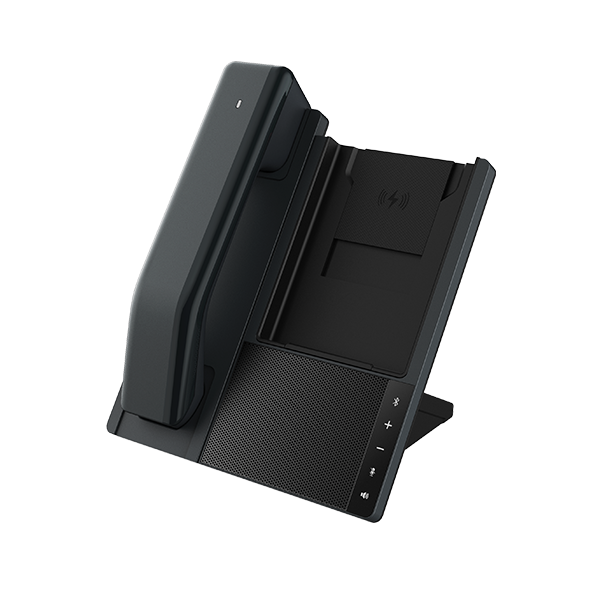

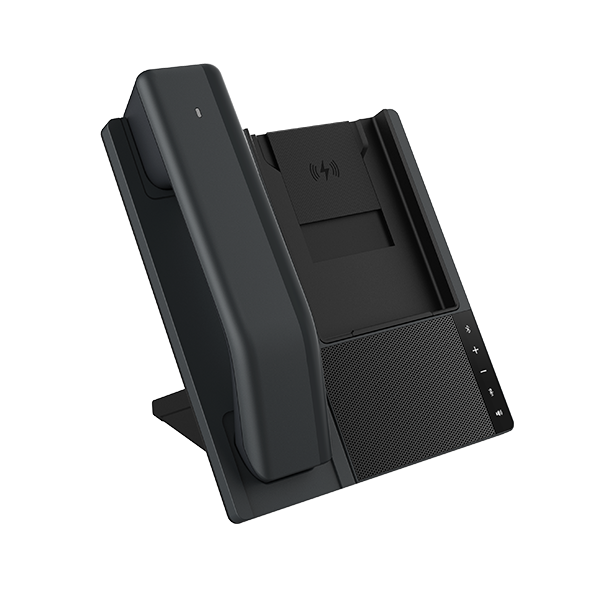

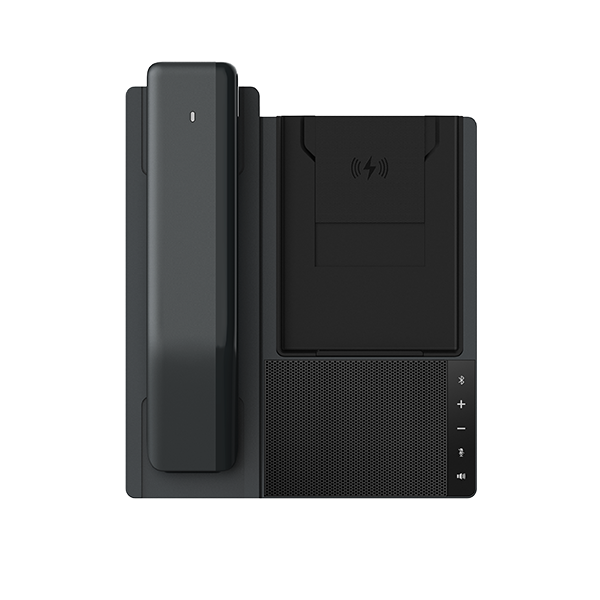

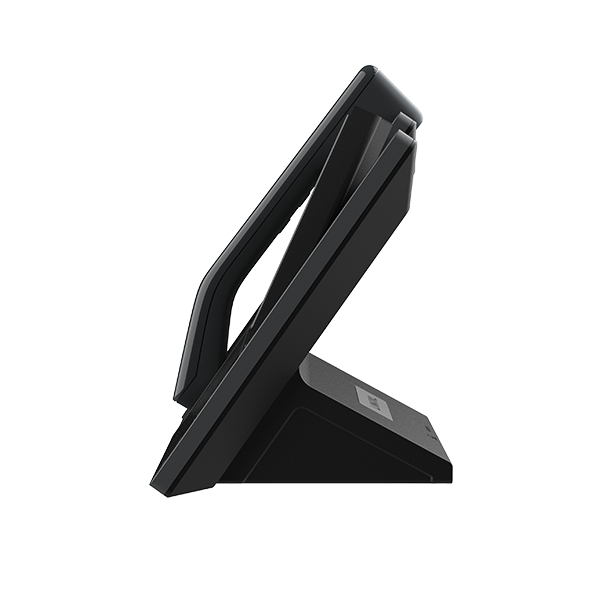

Fanvil DB20-H

• Connectivity: Base connects via USB‑C or Bluetooth; handset connects via Bluetooth 5.4.
• Speakerphone: Dual‑mic full‑duplex speakerphone. 2 omnidirectional analog microphones; pickup range up to 1.5 m; noise cancellation (ENC), noise suppression (ANS), AGC, beamforming and echo reduction
• Speaker: 40 mm driver, 3 W output, sound range 195 Hz–20 kHz.
• Wireless Handset: Bluetooth handset with 300 mAh Li‑polymer battery; ~18 hours talk time, ~21 hours standby. Hearing‑Aid Compatible (HAC).
• Wireless Charging: Built‑in 10 W wireless charging pad for smartphone; supports Qi‑enabled phones.
• Audio Codecs: Supports SBC for Bluetooth audio.
• Bluetooth: Version 5.4, profiles A2DP, HSP, HFP; up to 8 paired devices, 2 simultaneous connections, Bluetooth range ~10 m.
• Power Requirements: 12 V / 1.5 A power supply; max power consumption ~18 W.
• Physical Dimensions: Base: 204.8 × 174.9 × 114.8 mm. Handset: 203.7 × 45.8 × 47 mm.
• Operating Environment: Working temperature range: –10 °C to 60 °C; humidity 10–95 % RH.

• 1 × DB20‑H All-in-One Phone Station base unit
• 1 × Wireless Bluetooth handset
• 1 × Wireless charging pad / charging cradle (built in)
• 1 × Power adapter (12 V / 1.5 A)
• 1 × USB‑C (or USB) cable for PC connectivity
• Quick start guide & safety / declaration documents

Datasheet
