Fanvil LINKVIL CA400 Conference Solution

Name: Fanvil LINKVIL CA400 Conference Solution
Brand: Fanvil
SKU: CA400
Price: 427.87 GBP
Availability: InStock

£427.87 GBP

£427.87 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

All-in-One Design
8 Array Microphone & 3W Enhanced Speaker
Wireless 4K UHD Screen Sharing for Real Time Presentations
Camera with Auto Framing

In stock, 1 unit

EAN: 6975225010063

SKU: CA400

Vendor: Fanvil

Order within xx hours for delivery on

Product Specification

All in One Design
One Click Screen Share
Auto-Framing, Plug and Play
118.5° Field of View
Built in Privacy Cover on USB Camera
4K Camera, 8 Microphone Array
3W Vocal Enhanced Speaker
UVC Camera
BYOD (Bring your Own Device)
1/2.8 Inch Sony Sensor
5x e-PTZ, Universal Stand

Box Content

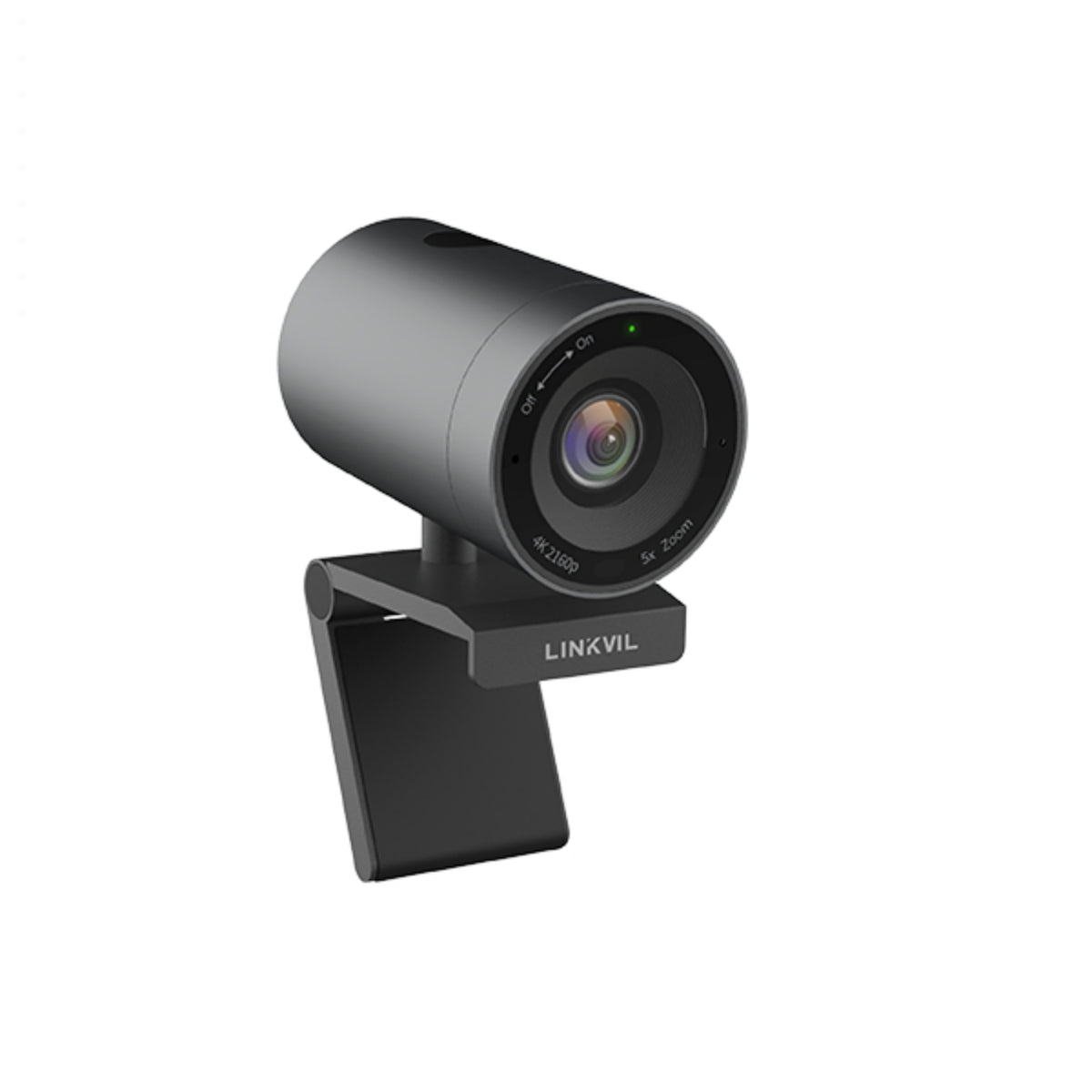

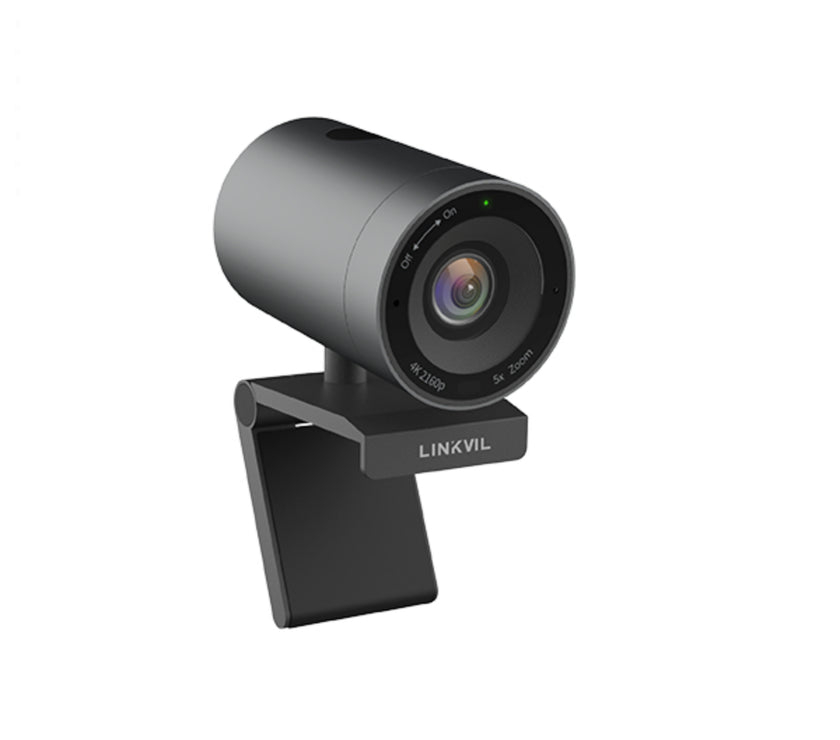

CM70 USB Camera

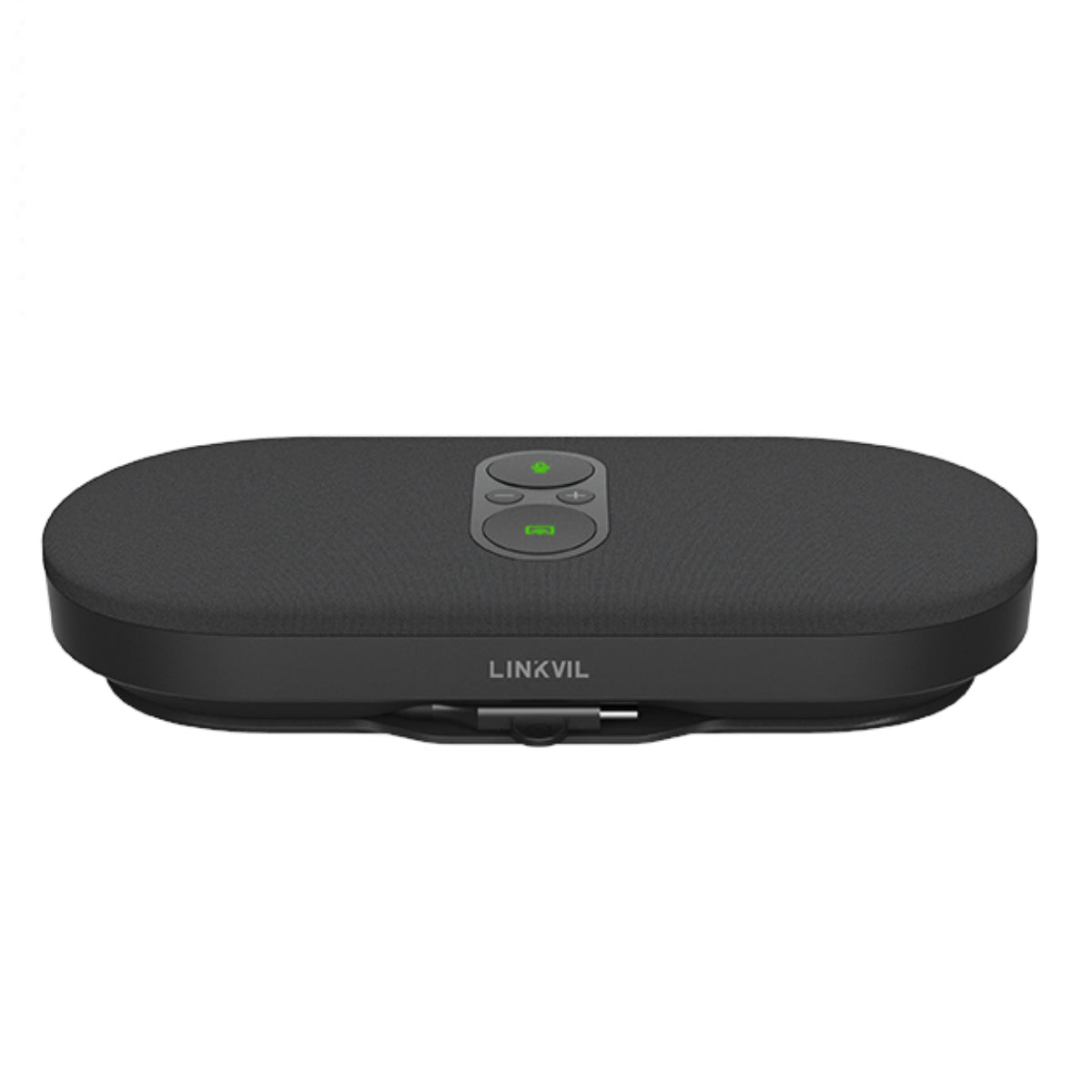

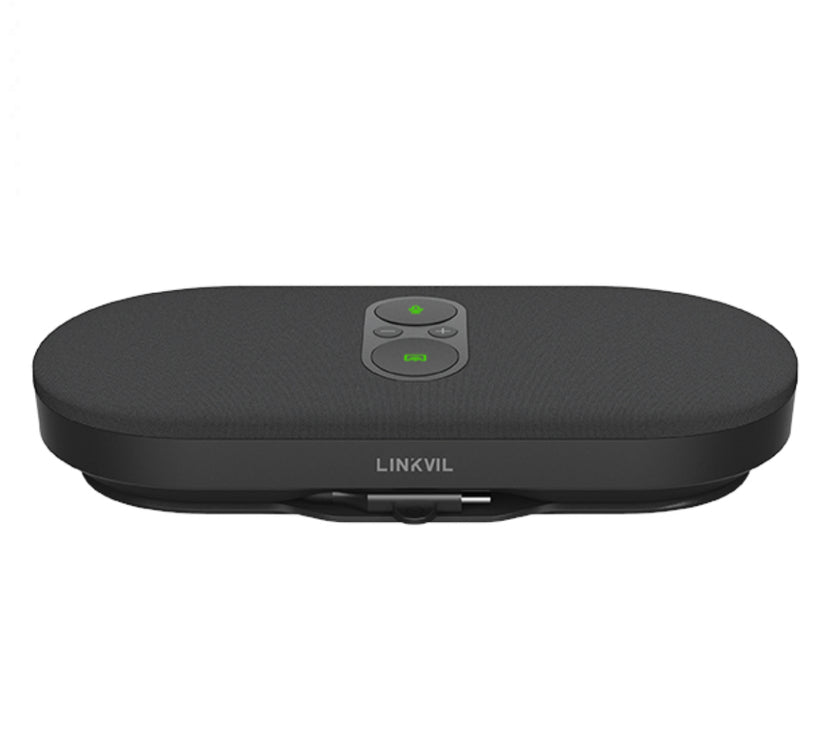

MS10 Screen Sharing Speakerphone

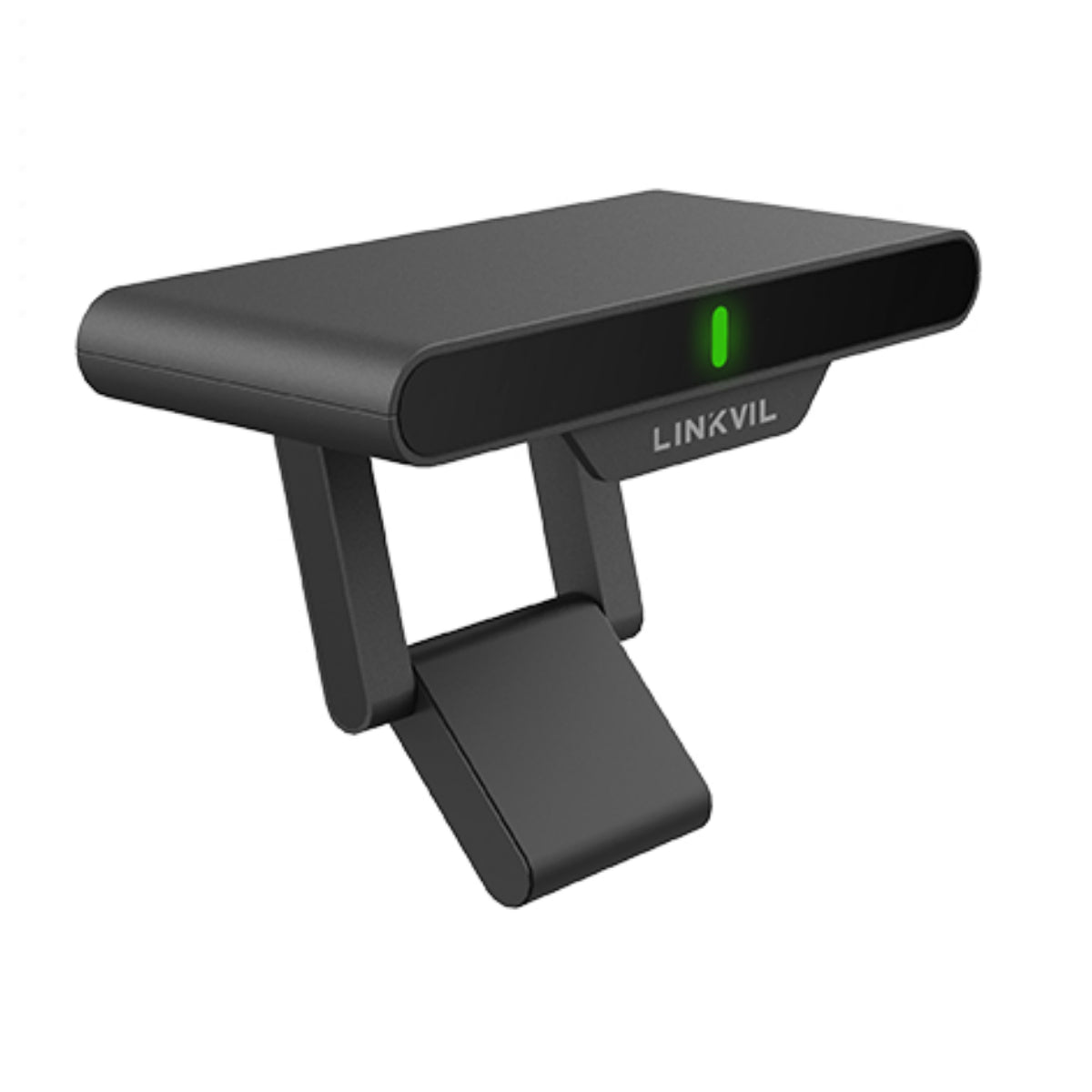

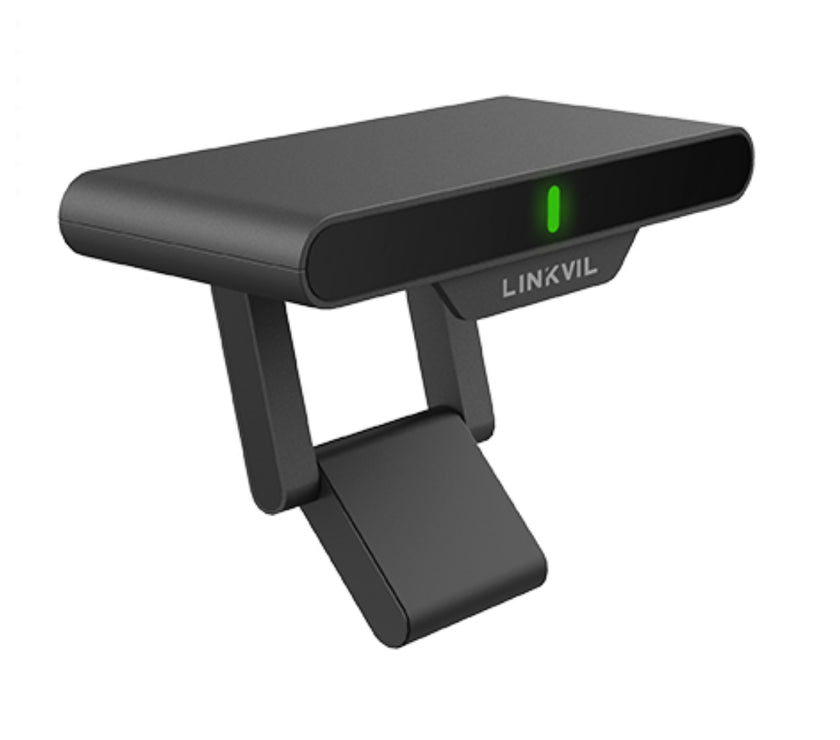

RC10 Receiver
Remote Control
Power Adapter - 5V / 2A
1.5m HDMI Cable
USB-C to HDMI & USB-A/C Adapter - 20cm Length
USB Extension Cable - 40m Length
Quick Start Guide

Documents

Datasheet

Technical Features

Microphone
- Maximum Screen Share Output Resolution - 1920 x 1080 @ 30fps
- Built in 8 MEMS Microphones for 360° Pickup
- 4M Pickup Range
- Signal to Noise Ratio (SNR) - 64.5dB(A)
- Sensitivity: -26dBFS@1kHz(0dB=1V/Pa)
- Acoustic Overload Point - 119dB SPL <10%@1kHz
- Frequency - 20Hz-10KHz
- Duplex, Beamforming
- Automatic Noise Suppression
- Acoustic Echo Cancellation
- Automatic Gain Control
Speaker
- Speaker - 4Ω 3W
- Speaker Size - 50mm
- Sensitivity - 1KHz 85 dB ± 3dB @1m, 3W
- Signal to Noise Ratio (SNR) - 50dB
- Frequency Range - 200Hz-10KHz MAX 5%
- Max. Sound Pressure Level: 85dB SPL@1m @3W
- Background Noise - <30dB
- Total Harmonic Distortion - 200Hz-10KHz MAX 5%
Camera
- Sensor Type - IMX 415(1/2.8") 3840*2160
- Output Resolution - MJPEG/ H264/ H265/YUV/ NV1230P (YUV and NV12 Don‘t Support 4K and 2K Resolutions)
- FOV - DFOV 118.5°/HFOV 109.9°/VFOV74.6°
- Auto Framing - Auto, F/No - F2.5
- Zooming - 5x Digital Zoom
- Maximum Resolution - USB3.0:3840*2160p30/ USB2.0:1920*1080 p30
- Security Protection - Manual Camera Lens Cover

Fanvil LINKVIL CA400 Conference Solution

£427.87 GBP

£427.87 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

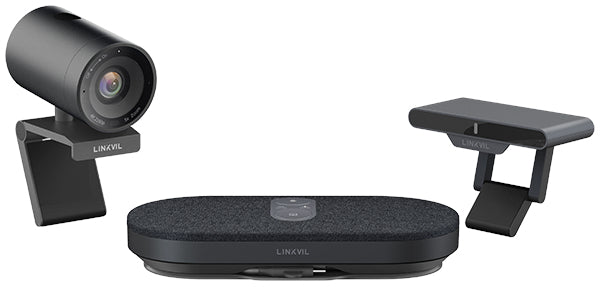

Designed for small and medium meeting rooms up to 32m², the Fanvil Linkvil CA400 consists of Speakerphone, a USB Camera and a Receiver Hub. Its a cutting edge solution for seamless 4K UHD Screen Sharing and Dynamic Presentation. With its simple one press functionality, users can effortlessly connect to a 4K Display, enhancing productivity and collaboration. The Fanvil CA400 Integrates Audio, Video and Screen Sharing making meetings more efficient, BYOD (Bring your Own Device) support and wireless connectivity eliminate the need for messy cables. The Noise Cancelling Technology, 8 Array Microphones and 3W enhanced Speaker ensures superior audio is delivered to each and every participant. The USB Webcam has a Wide Angled Lens, a 5x Digital Zoom and Auto Framing, and will automatically zoom in or out to frame all participants. The Fanvil Linkvil CA400 supports Wireless Casting at 4K and Full HD Video Streaming, making it the ideal choice for Video Conferences and Presentations.
