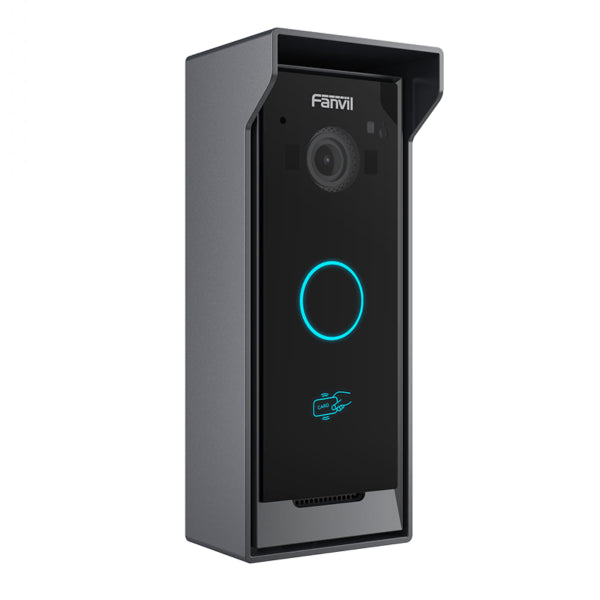

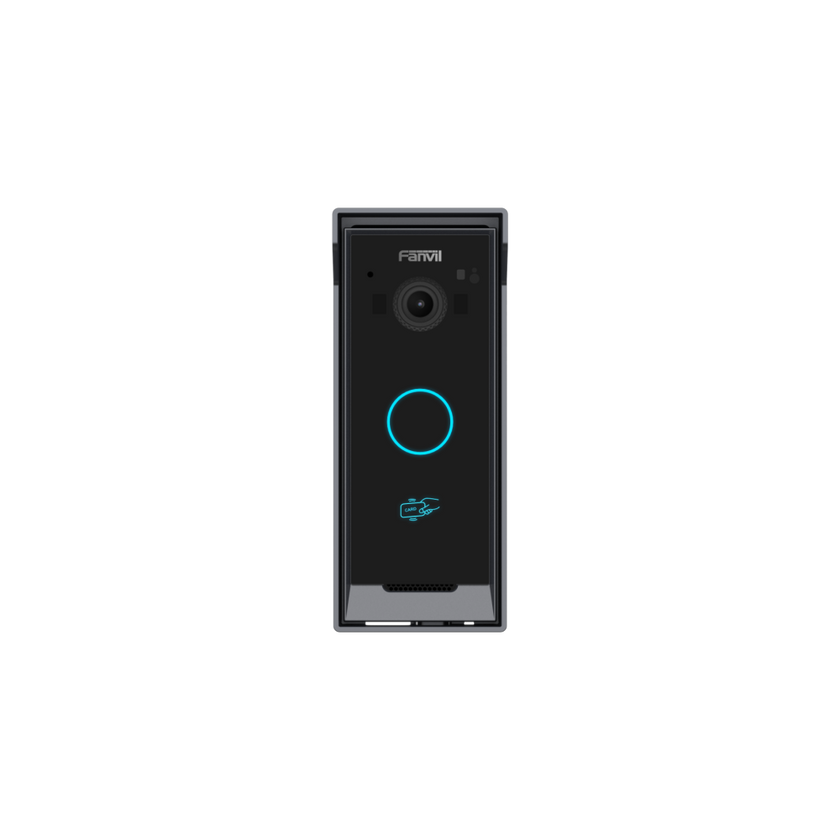

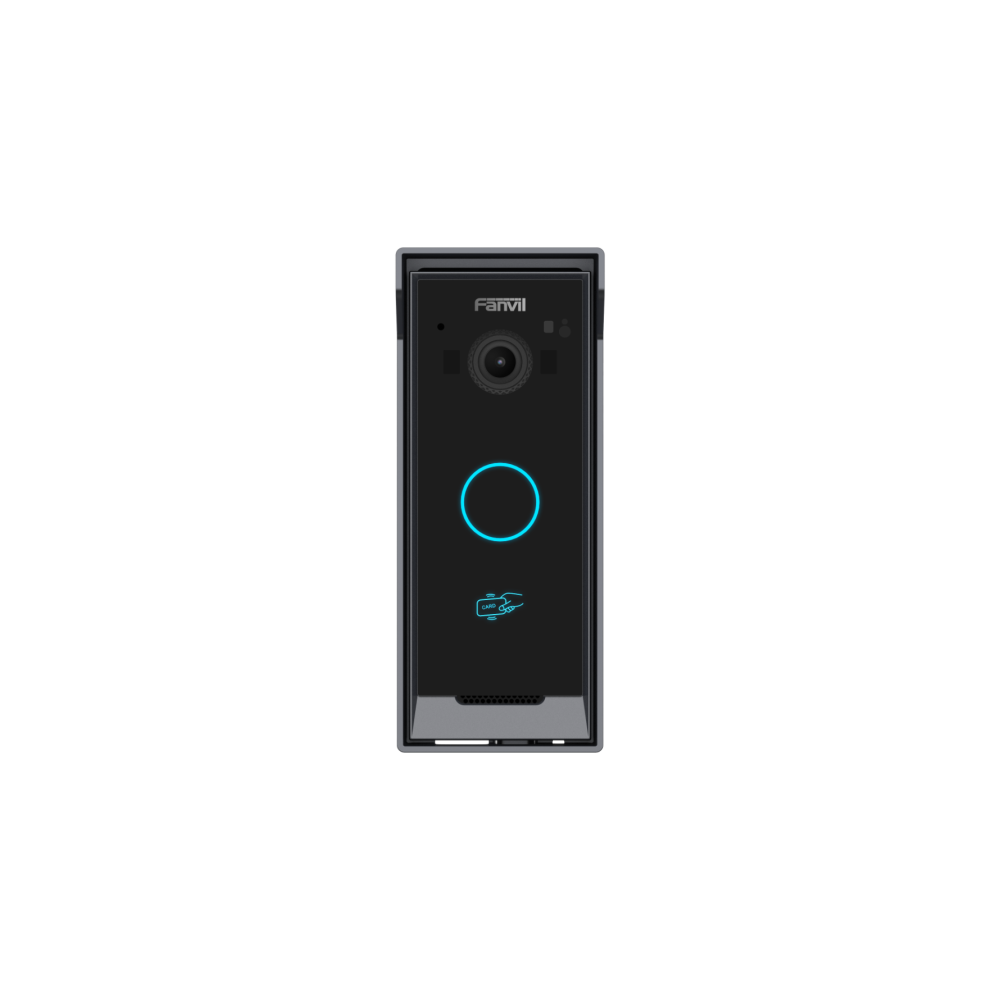

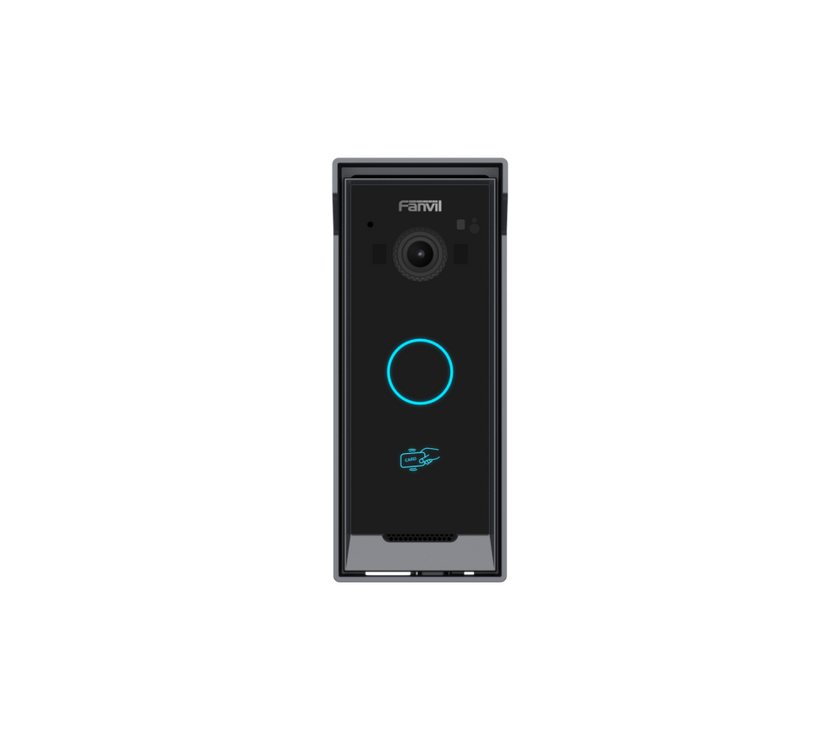

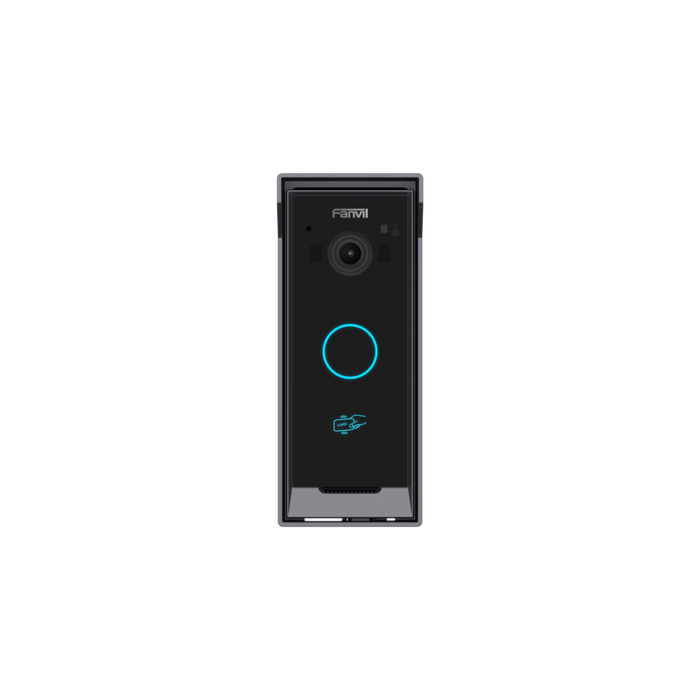

Fanvil i60 Compact Intercom

Fanvil i60 Compact Intercom

£69.20 GBP
Sale price: £69.20 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 2 Mega Pixel HDR Wide Angled Camera with Infrared Night Vision
  • Compatible with ONVIF Standard Protocol
  • Rich Interfaces for Security Device Connectivity
  • One Speed Dial Button
In stock, 34 units
EAN: 6937295605358
SKU: i60
Vendor: Fanvil
Order within xx hours for delivery on
Quantity
  • High Protection Level: IP65 and Wide Temperature Range from -40°C to 70°C
  • Multiple Access Methods: Mobile App, BLE, IC Cards, DTMF, Indoor Switches
  • Camera: 2 Mega Pixel HDR Wide Angled Camera with Infrared Night Vision
  • Compatibility: ONVIF Standard Protocol Providing High Flexibility and Compatibility
  • Connectivity: Rich Interfaces for Security Device Connectivity
  • Speed Dial: One Speed Dial Button
  • Fanvil i60 SIP Video Door Phone
  • Mounting Template
  • Bracket, Connector
  • Rain Cover
  • Cable Outlet Cover
  • Quick Installation Guide

Datasheet

Overview

Fanvil i60K is a SIP door phone with a speed dial button, a numeric keypad, and an IP65 rating for indoor and outdoor use. It supports various door-opening methods such as password, Bluetooth, IC/ID card, and DTMF Code for streamlined access management and is equipped with a 2 mega-pixel camera for audio and video communication. Compatible with SIP and ONVIF, it integrates with security systems and is ideal for villas, apartments, and communities.

Technical Features
  • Supported Protocols: SIP 2.0 over UDP/TCP/TLS
  • Access Methods: IC Card, DTMF Code, Remote Door Opening, BLE
  • Interface: Wiegand Input / Output, Short Circuit Input / Output
  • Supported Wiegand: 26, 34 bit
  • Supported ONVIF Types: Profile S
  • Supported Standards: DTMF, IC Card, Indoor Switch, BLE, Cards 13.56 MHz
  • Speaking Mode: Full Duplex (High Definition)
  • Additional: Built-in Relay, Motion Detection, Tamper Alarm, TF Card, Open API
  • Body Material: ABS & OC
  • Colour: Black Panel, Gunmetal Housing
  • Sensor: 1/2.9-inch, CMOS
  • Camera: 2 Megapixel, Supports Infrared
  • Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical)
  • Output Video: H.264 (Baseline, Main Profile)
  • Light Sensitivity: 0.1Lux
  • Card Storage: 1,0000
  • Power Consumption: PoE: 1.63~6.93W, Adapter: 1.51~6.16W
  • Power Supply: DC 12V / 1A, PoE 802.3af Class 3
  • IP Level: IP65
  • Panel Size: 50mm x 130mm x 30mm (L x W x D)
  • Installation: Wall Mount, Rain Cover Included
  • Keyboard: 1 Speed Dial Button
