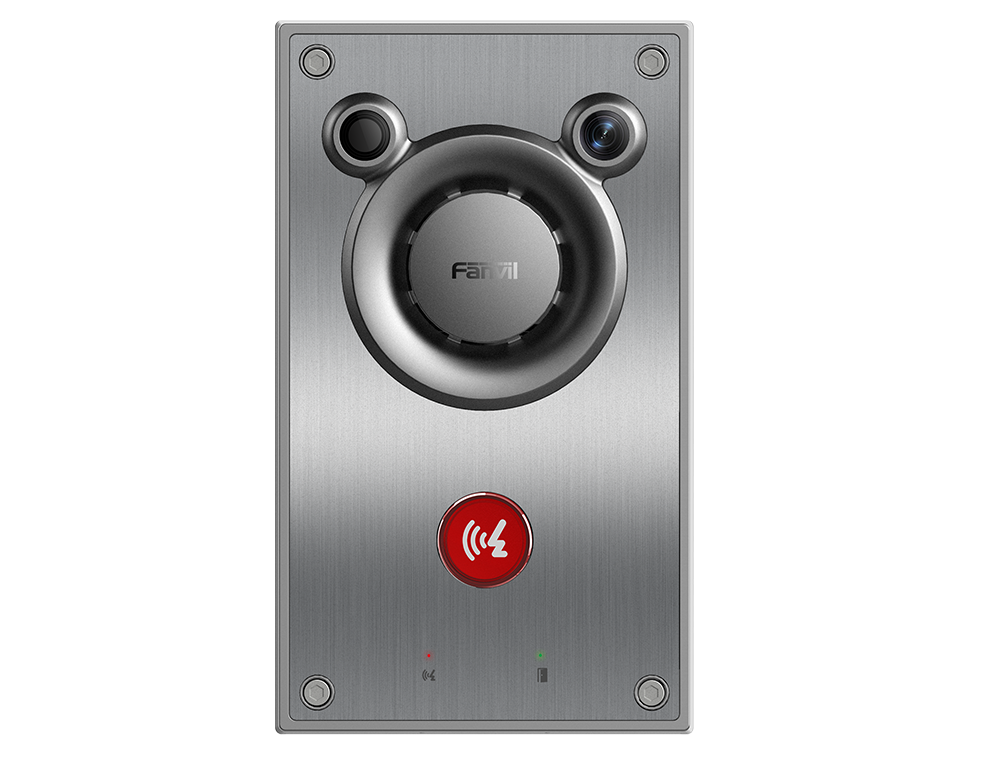

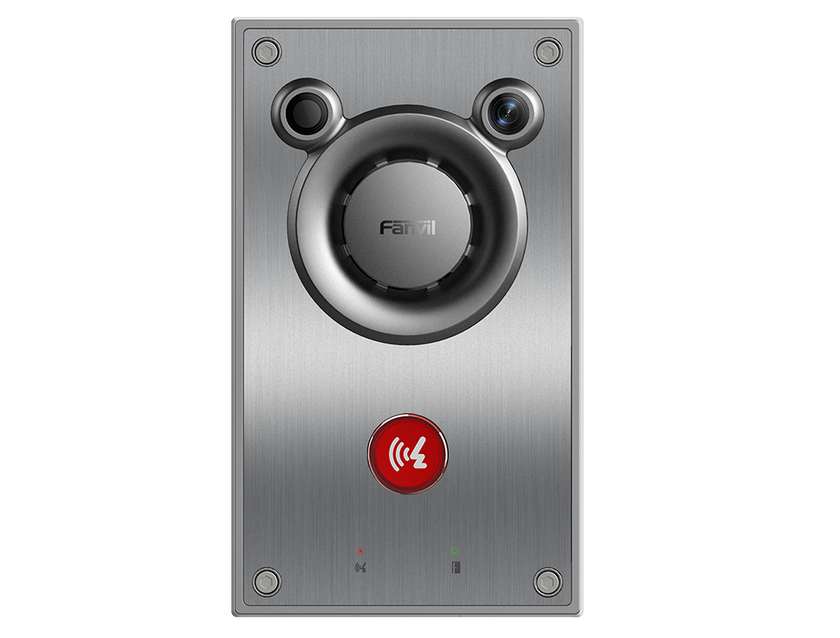

Fanvil A12V Video Intercom

Fanvil A12V Video Intercom

£428.38 GBP
Sale price: £428.38 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • HD Video - Built-in 4MP Starlight HD
  • Equipped with AEC, ANR, AGC, AVC
  • IP66 waterproof and dustproof grade
In stock, 15 units
EAN: 6937295606485
SKU: fanvil-a12v
Vendor: Fanvil
Order within xx hours for delivery on
Quantity
  • HD Video - Built-in 4MP Starlight HD camera and infrared light, enabling high-definition video calls
  • Excellent Sound Quality - With a unique turbine cavity design, bringing extraordinary audio
  • Intelligent Audio - Equipped with AEC, ANR, AGC, AVC speech algorithms to ensure clear communication in complex environments
  • Loud Sound - 10W speaker, 90dB hands-free call and 100dB broadcast, producing thunderous and immersive sound
  • Remote Pickup - Remote pickup can reach up to 5m and accurately captures every word
  • Self-Check Function - Voice loop self-check, simplify maintenance, reduce costs
  • Recording Broadcast - Built-in SD card slot supports recording and preset broadcast, flexible and diverse
  • Protection Grade - IP66 waterproof and dustproof grade, suitable for all kinds of harsh environments
  • Friendly Interaction - 27mm backlit big button, dual status indicator (call, control), intuitive and friendly operation
  • High Compatibility

Fanvil A12V Video Intercom

Datasheet

Overview

Fanvil A12V Video Intercom is a brand-new intercom featuring a 10W speaker and turbo sound chamber for powerful sound quality. With Fanvil’s advanced dual-microphone noise reduction and voice enhancement technology, it captures clear audio even in challenging environments. Equipped with a 4MP starlight wide-angle camera with built-in infrared lighting and HDR technology, it ensures excellent imaging. Designed with a unique combination of a stainless-steel panel and integrated aluminum alloy structure, the A12V stands out with exceptional corrosion resistance and a high protection rating, making it highly durable and adaptable to diverse environments.

Technical Features
  • SIP Line: 2×
  • Tamper-Proof: Yes
  • Link with Third Party System: Yes
  • Integration with Third Party Systems: Yes
  • Auto-Provisioning via DHCP / TR069 / SIP PNP: Yes
AUDIO FUNCTION
  • HD Audio: Yes
  • Wideband Codec: G.722, Opus
  • Narrowband Codec: G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
  • Power Amplifier: 10W
  • Noise Reduction: Yes
  • SPL: 100dB (1m/1W)
  • 1m Full-Duplex: 90dB
  • 1m Half-Duplex: 100dB
  • 1m Broadcast: 100dB
  • AVC: Yes
  • AEC: Yes
  • ONVIF: Yes
  • RTSP: Yes
VIDEO FUNCTION
  • Image Sensor: 1/2.9” Colour CMOS
  • Video Codec: H.264
  • Built-In Camera: Yes (4MP)
  • Lens: F2.0, Fixed Iris
  • Resolution: 720p / 1080p
  • Minimum Illumination: 0.05 Lux
  • Fill Light: Infrared Lighting
  • Field of View: Horizontal: 103°, Vertical: 54.8°
HARDWARE
  • PoE Power Supply: Yes
  • DC Power Port: DC12~24V 2A
  • TF Card Slot: Yes
  • USB Interface: Yes
  • Button Backlight: Yes
  • Microphone: Dual Microphone
  • Audio Line-Out: 1×
  • Short-Circuit Output Interface: 2×
  • Short-Circuit Input Interface: 2×
  • RS485 Interface: 1×
  • Ethernet Interface: RJ45 PoE
  • Dimensions: 205 × 120 × 47mm
