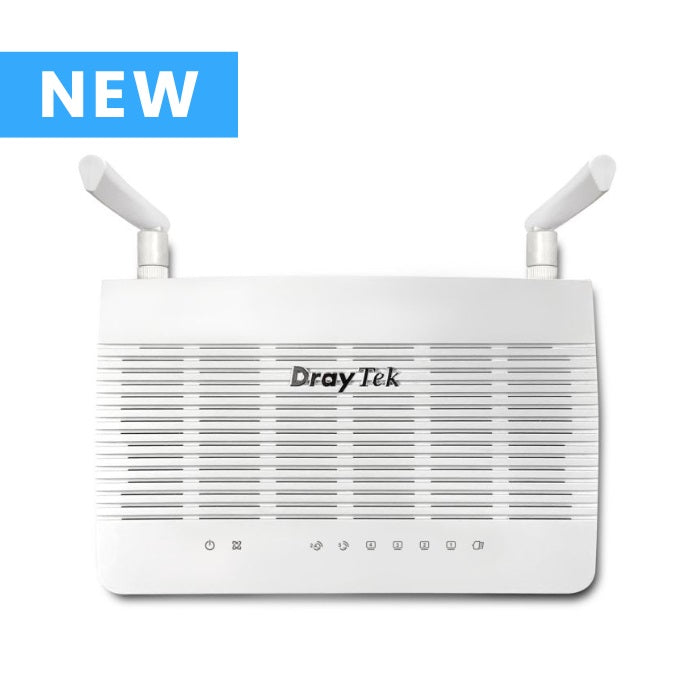

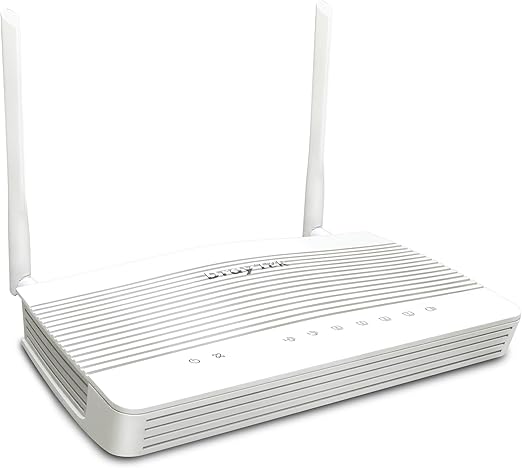

DrayTek V2136AX-K 2.5G Router
Regular price
£154.66 GBP
Sale price:
£154.66 GBP
Regular price:
(VAT Excl.)
Shipping calculated at checkout.
- IPsec throughput up to 390 Mbps
- Delivers link rate up to 3 Gbps
In stock, 135 units
Ethernet LAN features
| Ethernet WAN | Yes |
|---|---|
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
DSL features
| DSL WAN | No |
|---|
Mobile network
| SIM card slot | No |
|---|---|
| 3G/4G USB modem compatibility | Yes |
Network
| Wake-on-LAN ready | Yes |
|---|---|
| Routing protocols | BGP, OSPF, RIP |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
| VPN tunnels quantity | 4 |
| VPN support | IPsec IKEv1, IKEv2, IKEv2 EAP, IPsec-XAuth, OpenVPN, WireGuard |
| Port forwarding | Yes |
| Networking standards | IEEE 802.1Q |
| Port triggering | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| VPN server | yes |
| Static route | Yes |
| SSID-based VLAN assignment | Yes |
| Multicast support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Port mirroring | Yes |
| VPN throughput | 390 Mbit/s |
Management features
| Universal Plug and Play (UPnP) | Yes |
|---|---|
| WPS push button | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Bandwidth control | Yes |
| Intelligent Mesh technology | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
Security
| URL filtering | Yes |
|---|---|
| System event log | Yes |
| Security algorithms | 3DES, AES, HTTPS, SSH, SSID, TLS, WPA2, WPA2-PSK, WPA2-Personal, WPA2-RADIUS, WPA3, WPA3-Personal |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Firewall | Yes |
| DoS attack prevention | Yes |
| Schedule access | Yes |
| Parental control | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Access Control List (ACL) | Yes |
| DDoS protection | Yes |
WAN connection
| WAN connection type | RJ-45 |
|---|
Wireless LAN features
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
|---|---|
| WLAN data transfer rate (max) | 3000 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |

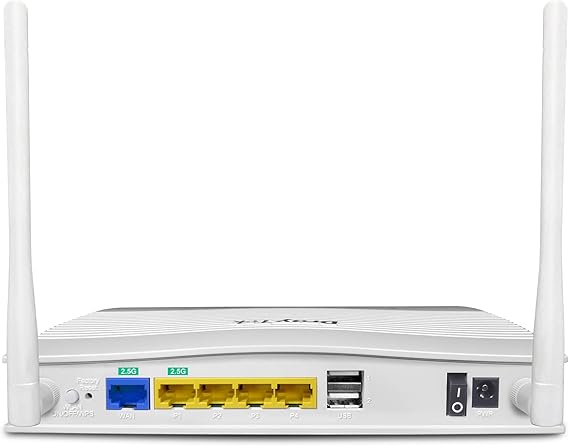

Ports & interfaces
| USB port | Yes |
|---|---|
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
Protocols
| DHCP server | Yes |
|---|---|
| DHCP client | Yes |
Design
| Product type | Desktop/pole router |
|---|---|
| Wall mountable | Yes |
| On/off switch | Yes |
| LED indicators | Activity, LAN, Power, USB, WLAN |
| Housing material | Plastic |
| Indication light | Yes |
Certificates
| PSTI certified | Yes |
|---|
Packaging content
| Cables included | LAN (RJ-45) |
|---|---|
| AC adapter included | Yes |
| Antenna included | Yes |
| Packaging content | •Vigor 2136ax series router •Quick Start Guide •Screws & wall plugs for wall mounting •2m Cat-5e RJ-45 Network Cable •2x Detachable Wireless LAN Antennas •DC 12V Power Supply with UK Plug |
Antenna
| Antenna design | External |
|---|---|
| Detachable antenna(s) | Yes |
| Antenna gain level (max) | 2.7 dBi |
| Antenna connector type | RP-SMA |
| Antenna direction type | Omni-directional |
| Antenna type | 2x2 |
Power
| Power over Ethernet (PoE) | No |
|---|---|
| Power consumption (typical) | 18 W |
Operational conditions
| Storage temperature (T-T) | -25 - 70 °C |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Width | 207 mm |
|---|---|
| Weight | 508 g |
| Height | 42 mm |
| Depth | 131 mm |
Documents
DrayTek V2136AX-K 2.5G Router
Regular price
£154.66 GBP
Sale price:
£154.66 GBP
Regular price:
(VAT Excl.)
Overview
The DrayTek Vigor 2136ax Firewall VPN routers allow you to make the most of FTTP Fibre Broadband with future-proof 2.5 Gigabit WAN interfaces, extensive Firewall, Content Filtering, VPN client/server and Quality of Service controls.
