DRAYTEK ANT-1205W 5DB WIFI AERIAL WHITE

Name: DRAYTEK ANT-1205W 5DB WIFI AERIAL WHITE
Brand: DrayTek
SKU: 251406
Price: 12.99 GBP
Availability: OutOfStock

£12.99 GBP

£12.99 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

High-Gain Aerial
Suitable for indoor use only

Out of stock

EAN: 4710484740694

SKU: 251406

Vendor: DrayTek

Order within xx hours for delivery on

Product Specification

Operation Band: 2.4GHz and 5GHz
Standard: IEEE 802.11a/b/g/n/ac/ax
2.4GHz Frequency Range: 2400 to 2500 MHz
5GHz Frequency Range: 5150 to 5850 MHz
2.4GHz Gain: 5 dBi
5GHz Gain: 4.5 dBi
HPBW Horizontal: 360°
HPBW Vertical at 2.4GHz: 30°
HPBW Vertical at 5GHz: 25°
2.4GHz VSWR: < 2.0
5GHz VSWR: < 2.0
Polarization: Linear

Box Content

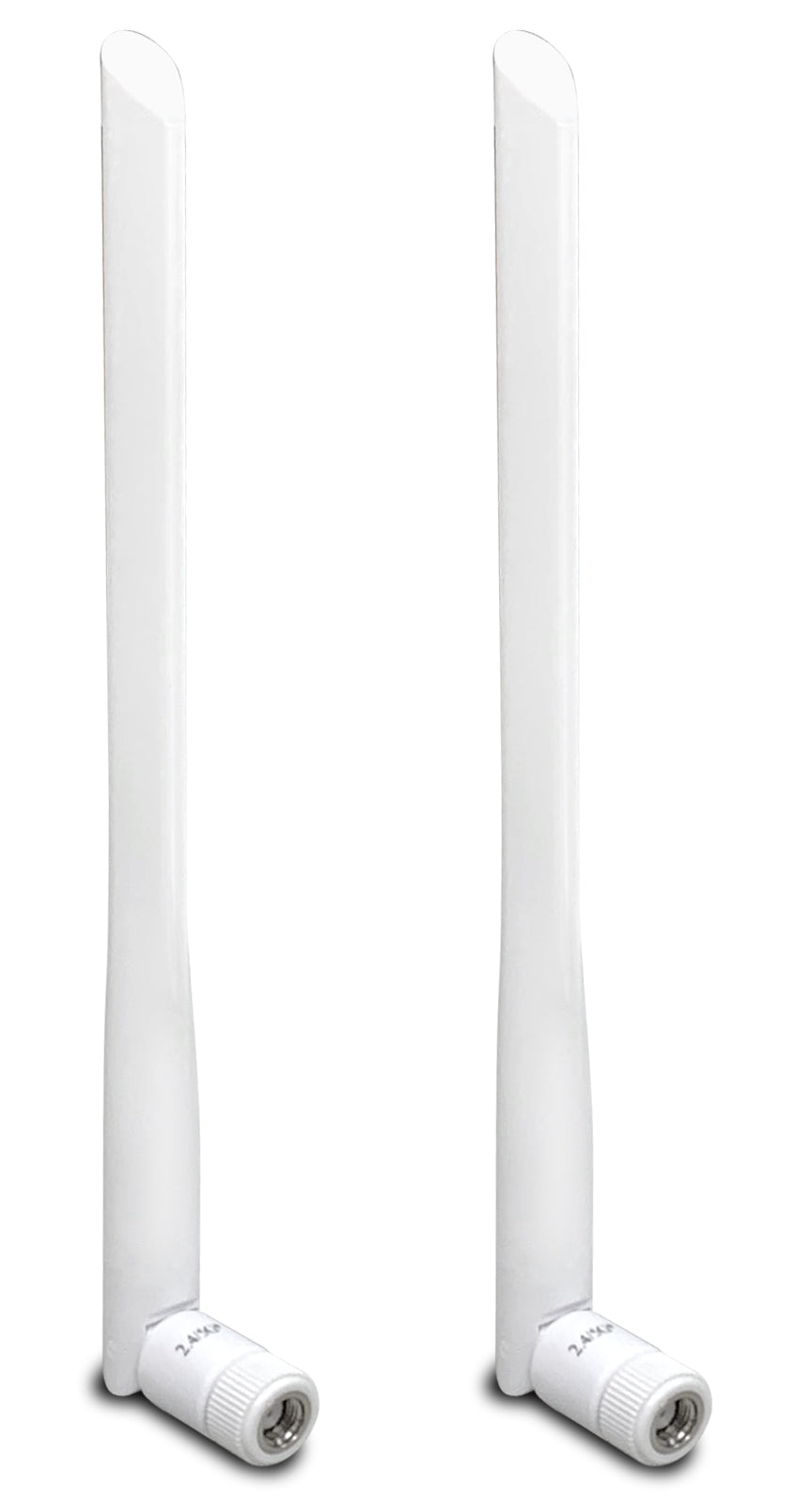

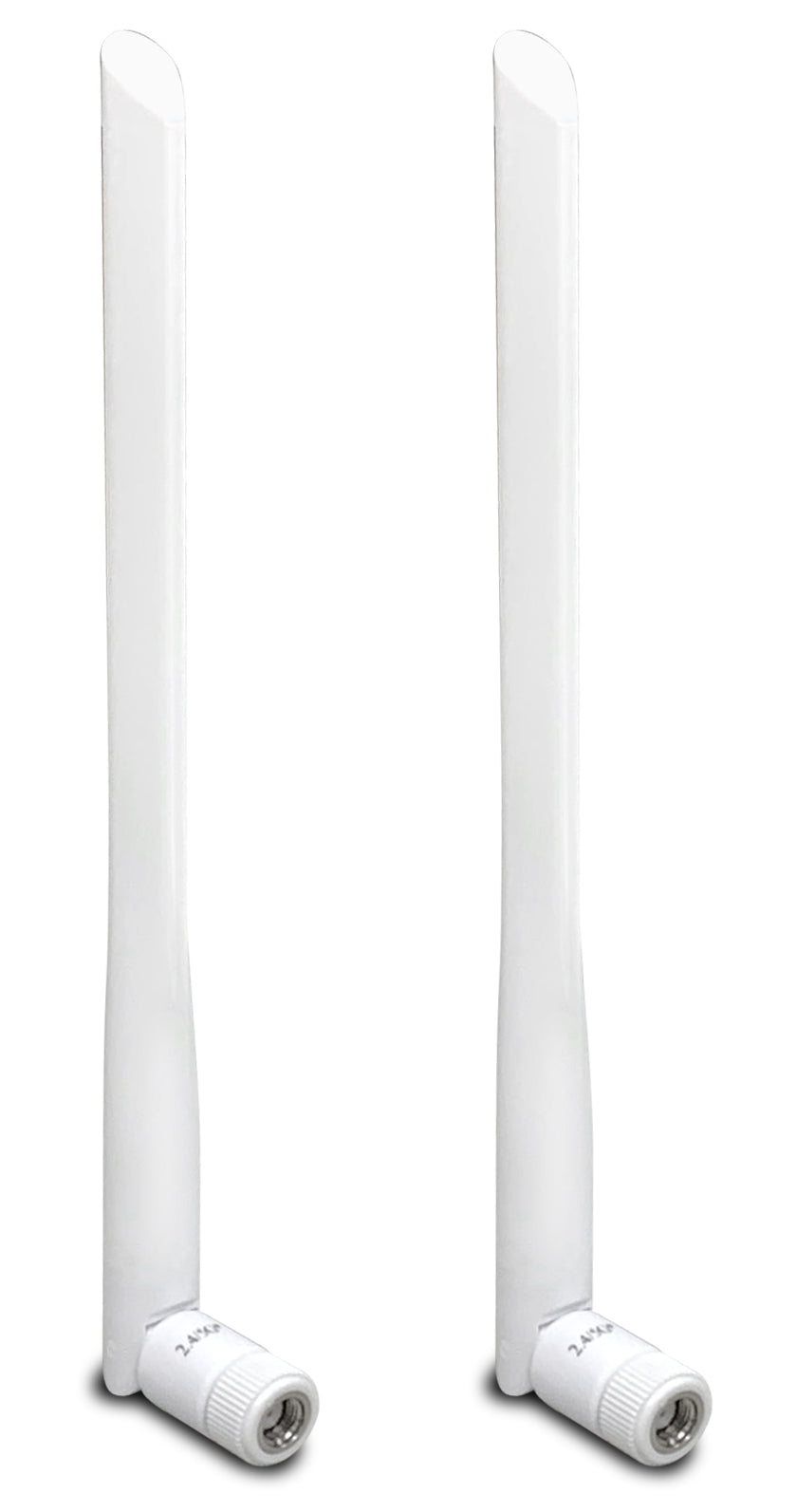

2x ANT-1205 Antennas

Documents

Datasheet

Technical Features

High-Gain Dual-Band Aerials: Set of 2 antennas
Color Options: Available in white or black
Improved Wireless Performance: Can improve range and coverage of wireless signal
Compatibility: Suitable for all DrayTek routers & access points
Wi-Fi Standards: Suitable for 802.11ac & 802.11ax (Wi-Fi 6)
Frequency Range: 2400-2500 MHz & 5150-5850 MHz
Gain: 4.5dBi at 5.8GHz, 5dBi at 2.4GHz
Connector Type: RP-SMA
Usage: Suitable for indoor use only
Optional Accessories: Optional magnetic/extension base

DRAYTEK ANT-1205W 5DB WIFI AERIAL WHITE

£12.99 GBP

£12.99 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The DrayTek ANT-1205 is a replacement aerial (antenna) for any DrayTek router or wireless access point. It provides up to a 5dBi gain (vs. the 2 or 3 dBi standard aerial supplied with the product).The ANT-1205 can increase coverage in your environment, creating a stronger signal for your WiFi coverage. A high-gain aerial achieves this by creating a narrower and therefore more concentrated radiation pattern. It is still an omnidirectional aerial, i.e. signal radiates in all directions (360 degrees) perpendicular to the aerial's length.
