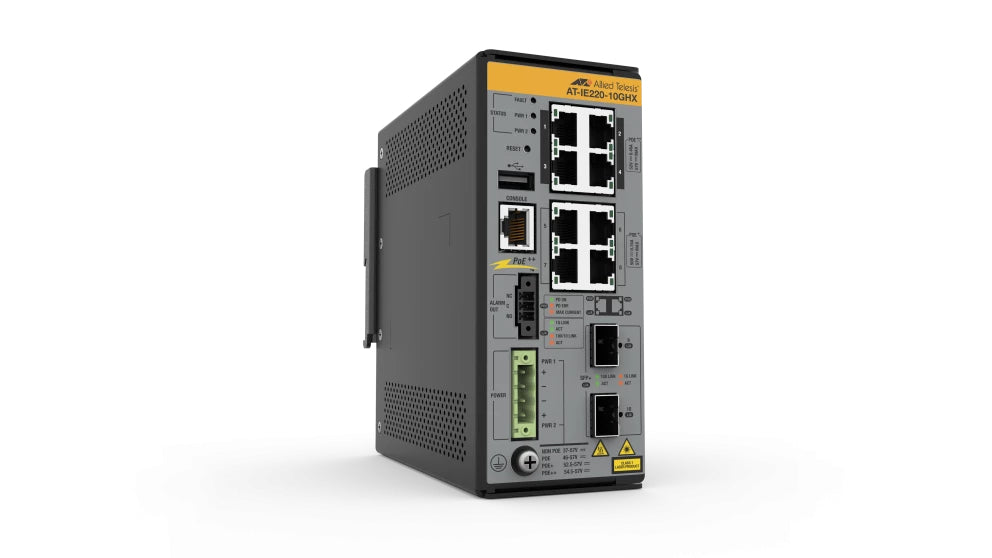

Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Regular price
£882.12 GBP
Sale price:
£882.12 GBP
Regular price:
(VAT Excl.)
Shipping calculated at checkout.
- Graceful Thermal Shutdown
- Fanless Design
Out of stock
Management features
| Traffic shaping | Yes |
|---|---|
| Traffic classification | Yes |
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 10 |
| USB 2.0 ports quantity | 1 |
Network
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.3bt |
|---|---|
| Full duplex | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| IGMP snooping | Yes |
Data transmission
| Throughput | 41.7 Mpps |
|---|---|
| Packet buffer memory | 2 MB |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
Security
| BPDU filtering/protection | Yes |
|---|---|
| Authentication | MAC-based authentication, Port-based authentication |
| Security algorithms | 802.1x RADIUS |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP snooping |
Protocols
| Management protocols | SNMPv1/v2c/v3 |
|---|
Design
| Wall mountable | Yes |
|---|---|
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Product colour | Grey |
| Housing material | Aluminium, Metal |
| Rack mounting | No |
Performance
| Internal memory | 512 MB |
|---|---|
| Flash memory | 128 MB |
| Export Control Classification Number (ECCN) | 5A992C |
| Harmonized System (HS) code | 8517.62.0050 |
Power
| Power consumption (max) | 18.5 W |
|---|---|
| Input voltage | 37 - 57 V |
| Power source | DC/PoE |
Power over Ethernet (PoE)
| Power over Ethernet plus (PoE+) ports quantity | 8 |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
Weight & dimensions
| Width | 65 mm |
|---|---|
| Depth | 137 mm |
| Height | 155 mm |
Documents
Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Regular price
£882.12 GBP
Sale price:
£882.12 GBP
Regular price:
(VAT Excl.)
Overview
Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinksRuggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
