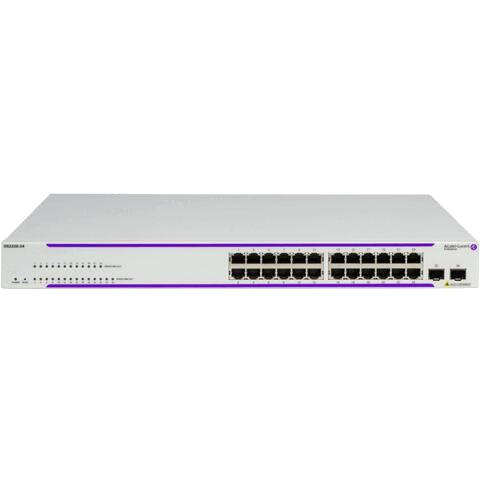

Alcatel-Lucent Enterprise OmniSwitch 2360-P24 Stackable Gigabit Ethernet LAN switch
Regular price
£499.86 GBP
Sale price:
£499.86 GBP
Regular price:
(VAT Excl.)
Shipping calculated at checkout.
Out of stock
Management features
| ARP inspection | Yes |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
Ports & interfaces
| SFP module slots quantity | 4 |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Network
| Auto-sensing | Yes |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 1024 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | Tagged VLAN |
| IGMP snooping | Yes |
Data transmission
| Number of static routes | 48 |
|---|---|
| Packet buffer memory | 16 MB |
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
Security
| Authentication | MAC-based authentication |
|---|---|
| SSH/SSL support | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | Strict Priority Queue (SPQ), Weighted Round Robin (WRR) |
| Authentication type | RADIUS |
| DHCP features | DHCP Option 82, DHCP client, DHCP relay, DHCP server |
Design
| Form factor | 1U |
|---|---|
| Product colour | Stainless steel |
| Stackable | Yes |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 1 fan(s) |
Performance
| Processor frequency | 1000 MHz |
|---|---|
| Noise level | 40 dB |
| Mean time between failures (MTBF) | 625000 h |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
Power
| Power consumption (max) | 63.2 W |
|---|---|
| Power supply included | Yes |
| Power source | AC |
Power over Ethernet (PoE)
| Power over Ethernet plus (PoE+) ports quantity | 48 |
|---|---|
| Total Power over Ethernet (PoE) budget | 453.3 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Storage temperature (T-T) | -20 - 60 °C |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 216 BTU/h |
Weight & dimensions
| Width | 440 mm |
|---|---|
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 4.2 kg |
Documents
Alcatel-Lucent Enterprise OmniSwitch 2360-P24 Stackable Gigabit Ethernet LAN switch
Regular price
£499.86 GBP
Sale price:
£499.86 GBP
Regular price:
(VAT Excl.)
Overview
The Alcatel-Lucent OmniSwitch 2360 operates on the field-proven Alcatel-Lucent Operating System (AOS) software supporting simple device management through command-line interface (CLI), inbox web browser graphical user interface (GUI) WebView 2.0, Alcatel-Lucent OmniVista® 2500 Network Management System (NMS), and the cloud-enabled Alcatel-Lucent OmniVista Cirrus Network Management as a Service.
