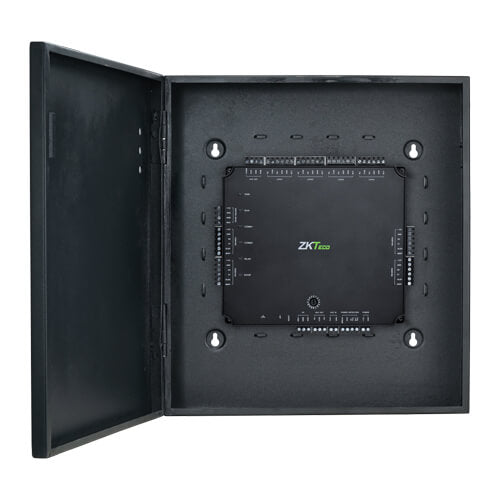

ZKTECO ATLAS-400 4 DOOR CONTROLLER METAL

Name: ZKTECO ATLAS-400 4 DOOR CONTROLLER METAL
Brand: ZKTECO
SKU: CON-ATLAS-400-METALBOX-2
Price: 673.94 GBP
Availability: InStock

£673.94 GBP

£673.94 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Smart Multi-Door Access Control

In stock, 2 units

EAN: 8435452807310

SKU: CON-ATLAS-400-METALBOX-2

Vendor: ZKTECO

Order within xx hours for delivery on

Product Specification

Model: ZKTeco ATLAS-400
Controller Type: 4-Door Access Control Panel
Enclosure: Powder-Coated Metal Cabinet
Doors Controlled: 4 Doors
Readers Supported: Up to 8 (Wiegand / OSDP)
Reader Compatibility: ZKTeco KR Series & Third-Party Readers
User Capacity: 5,000 Users
Event Storage: 10,000 Transactions + Unlimited Archive
Inputs: 9 (4 Exit Buttons, 4 Door Sensors, 1 Auxiliary)
Outputs: 5 Relay Outputs (4 Lock + 1 Auxiliary)
Communication: TCP/IP, Wi-Fi, RS-485, Wiegand, OSDP
Security: SSL/TLS Encrypted Communication
Power Supply: 12V DC 3A / PoE Supported
Mounting: Wall Mount
Dimensions (Bundle): 380 × 80 × 280 mm
Board Size: 197 × 171 mm
Weight: Approx. 4.2 kg
Browser Support: Chrome, Edge, Firefox

Box Content

ZKTeco ATLAS-400 4 Door Access Control Panel
Metal Enclosure Cabinet
Power Supply Unit

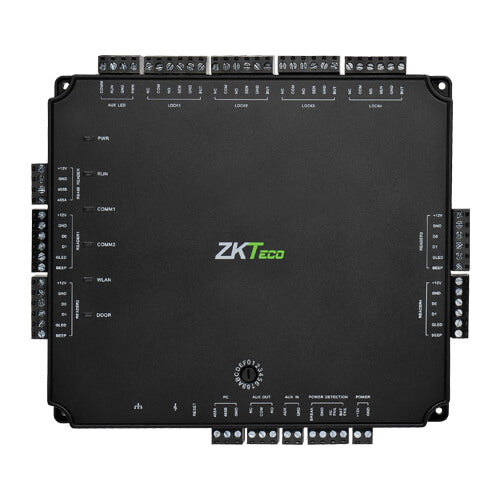

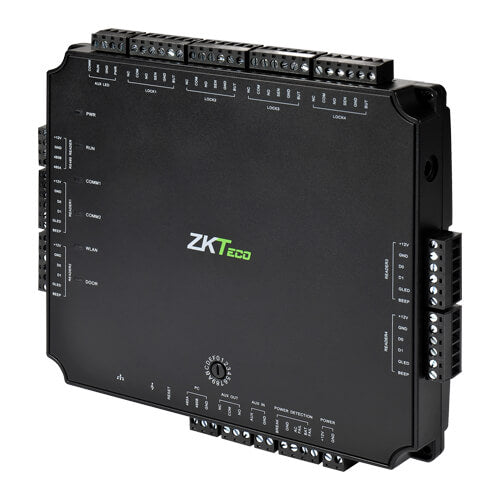

Main Control Board (Pre-installed)
Mounting Accessories (Screws & Wall Plugs)
Connection Terminals
Wiring Diagram Sheet

Documents

Technical Features

Built-in web application – no software installation required
Supports ZKTeco and third-party access readers
Advanced access rules including anti-passback and multi-card opening
Remote door unlock and monitoring via mobile app
Secure TCP/IP communication with SSL/TLS encryption
Expandable system supporting up to 84 doors
User-programmable auxiliary relays for alarms and automation
Real-time monitoring, reporting, and event management
Durable metal enclosure for secure installations

ZKTECO ATLAS-400 4 DOOR CONTROLLER METAL

£673.94 GBP

£673.94 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ZKTeco ATLAS-400 4 Door Controller Metal is an enterprise-grade access control solution designed for centralized door management in offices, commercial buildings, warehouses, and secure facilities. The controller includes an embedded web server, allowing administrators to configure and manage access directly through a browser without installing additional software.

Supporting Wiegand, OSDP, and RS-485 communication protocols, the Atlas-400 works with ZKTeco readers as well as third-party devices, offering high flexibility for new or existing installations. The system enables advanced features such as anti-passback, multi-card opening, lockdown control, reporting, and remote door operation via mobile application.

Its powder-coated metal cabinet provides durability and secure wall mounting, while TCP/IP networking with SSL/TLS encryption ensures reliable and secure communication across wired or wireless networks. The scalable architecture allows expansion up to 84 doors using additional panels, making it suitable for growing security infrastructures.
