YEALINK MB-12X PRO CAMERA
Product Specification
Box Content
Documents
Overview

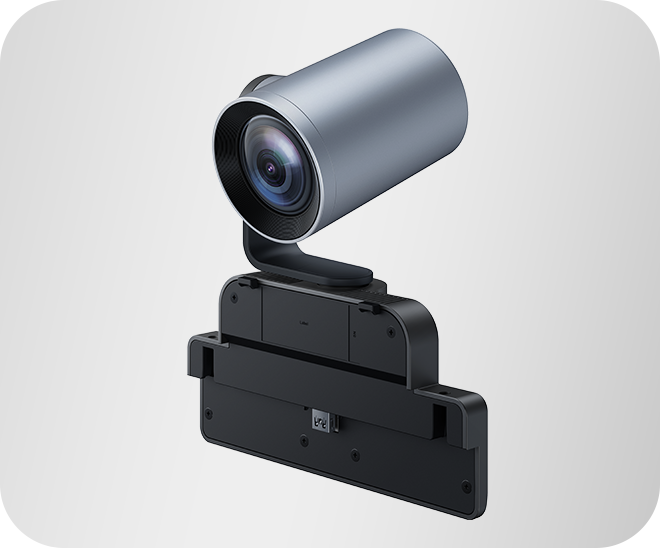

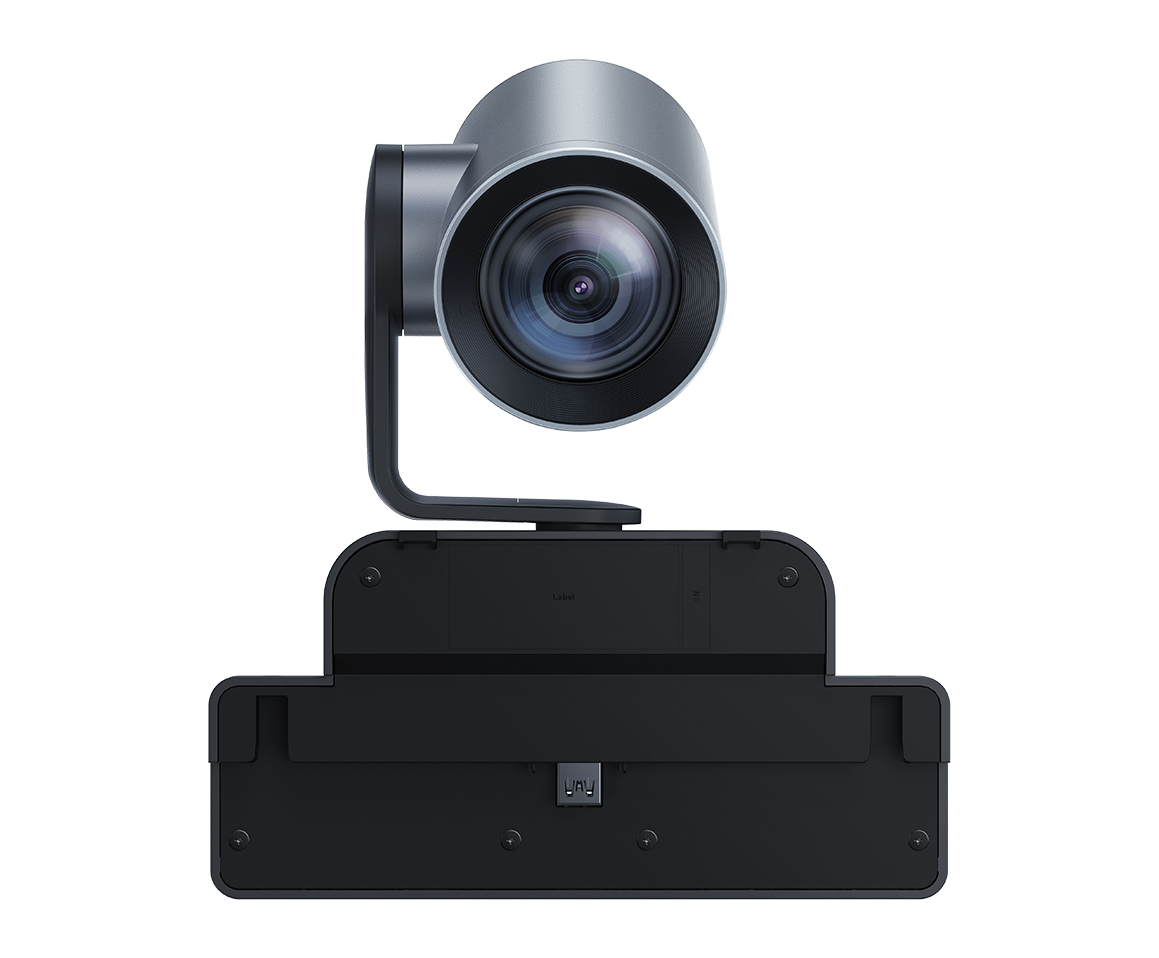

The Yealink MB-12X Pro Camera is a premium 4K PTZ optical zoom camera module built to extend the video capabilities of Yealink MeetingBoard Pro systems. Designed for medium and large conference rooms, it integrates directly into the MeetingBoard using a dedicated slot interface, allowing fast plug-and-play installation without additional cables or brackets. Equipped with a powerful 12× optical zoom lens and AI-driven tracking technology, the camera automatically detects speakers, adjusts framing, and maintains optimal viewing angles throughout meetings. Working alongside the MeetingBoard’s built-in cameras, it forms an intelligent multi-camera system that enables voice positioning, auto-framing, and smooth collaboration experiences with ultra-high-definition video clarity.
Technical Features
- Brand: Yealink
- Model: MB-12X Pro
- Product Type: PTZ Video Conferencing Camera Module
- Compatibility: Yealink MeetingBoard Pro (2nd Generation)
- Video Resolution: 3840 × 2160 (4K UHD)
- Camera Sensor: 8 MP
- Optical Zoom: 12× Optical Zoom
- Frame Rate: Up to 30 fps
- Field of View: 90°
- Pan Range: ±100°
- Tilt Range: 0° to −90°
- Focus: Manual/Auto Focus Support
- Installation: Custom top-mount slot (plug & play)
- Power Supply: Via MeetingBoard connection
- Part Number: 1303128
