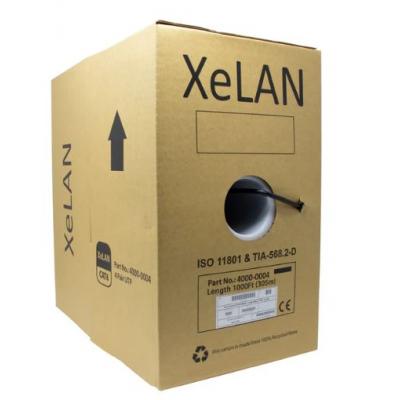

XeLAN CAT6 EXTERNAL CABLE 305M BLACK
Product Specification
Box Content
Documents
Overview

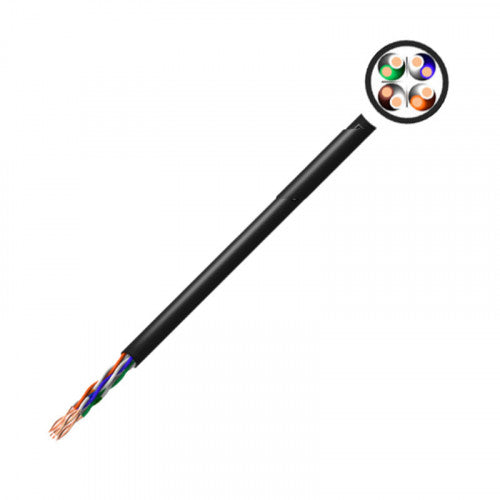

The XeLAN CAT6 External Cable 305M Black is a professional-grade Ethernet installation cable engineered for outdoor networking and structured cabling applications. Built with solid copper conductors and precision twisted pairs, it supports high-speed data transmission up to 1 Gigabit Ethernet with a bandwidth of 250 MHz. The durable polyethylene (PE) outer sheath provides resistance against UV exposure, moisture, and harsh environmental conditions, making it ideal for external routing, ducts, and between-building connections. Classified with CPR Euroclass Fca fire rating, the cable ensures compliance with safety standards while maintaining excellent signal integrity. Sequential metre markings simplify installation and reduce waste during deployment. Its robust construction makes it suitable for CCTV systems, enterprise LAN networks, and professional data infrastructure projects.
Technical Features
- Cable Type: Category 6 UTP External Cable
- Cable Length: 305 Metres (1000ft)
- Bandwidth: Up to 250 MHz
- Data Speed Support: Up to 1 Gbps (Gigabit Ethernet)
- Conductor Material: Solid Copper (Class 1)
- AWG Size: 23 AWG
- Number of Pairs: 4 Twisted Pairs (8 Cores)
- Outer Sheath Material: Polyethylene (PE)
- Fire Rating: CPR Euroclass Fca
- Outer Diameter: Approx. 6.3–6.7 mm
- Operating Temperature Range: -10°C to 75°C
- Colour: Black
- Installation Type: External / Duct Grade
