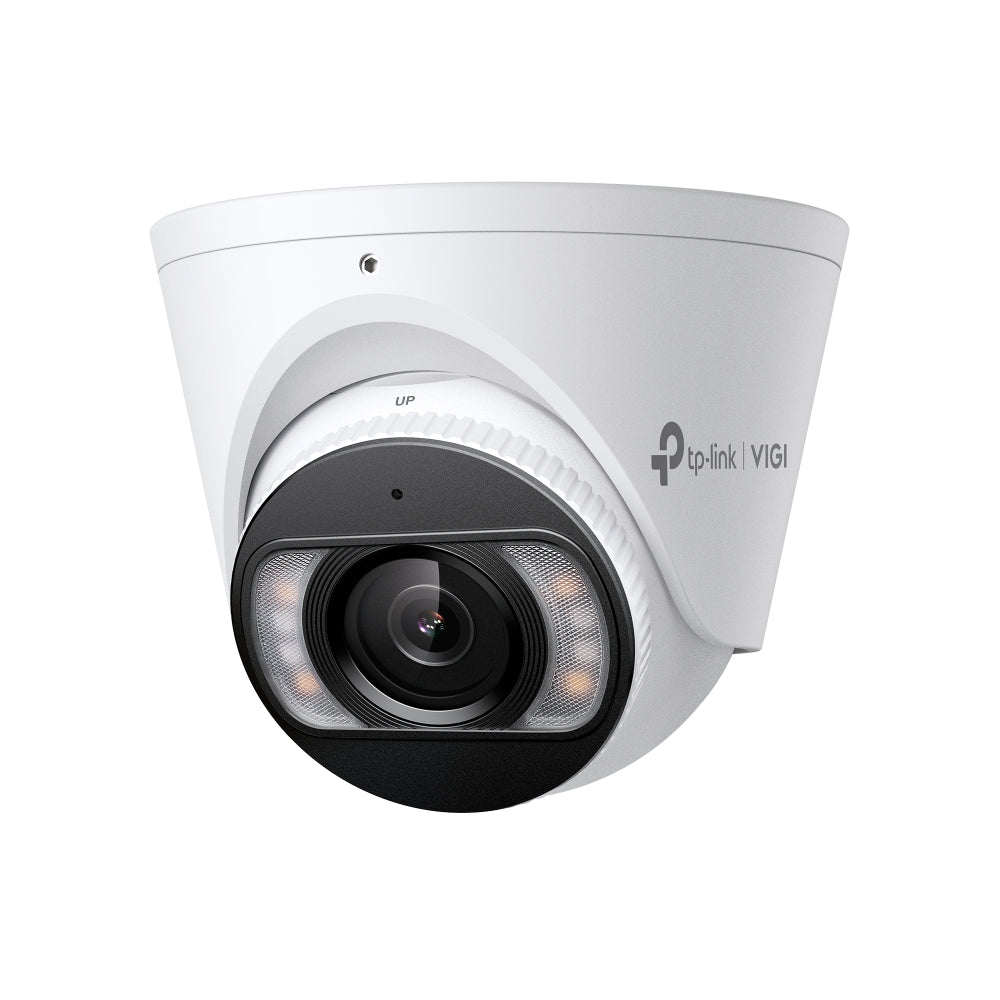

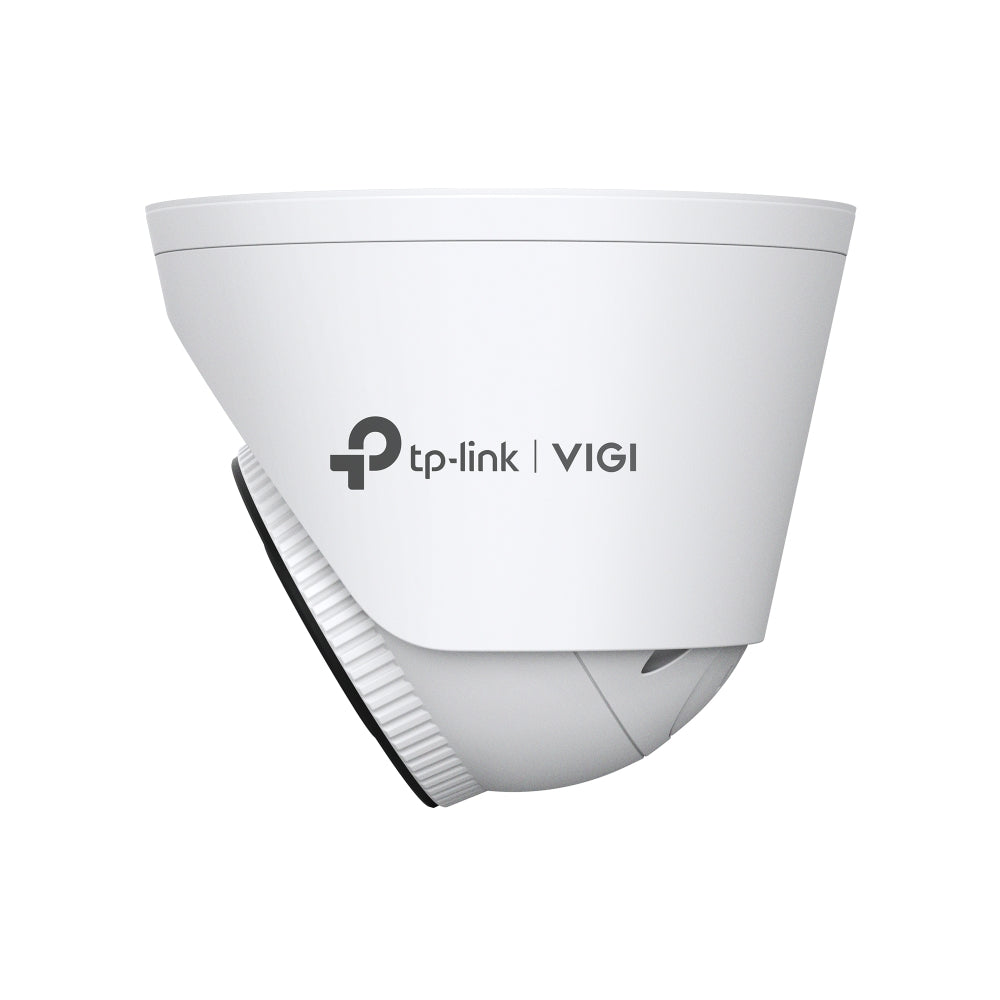

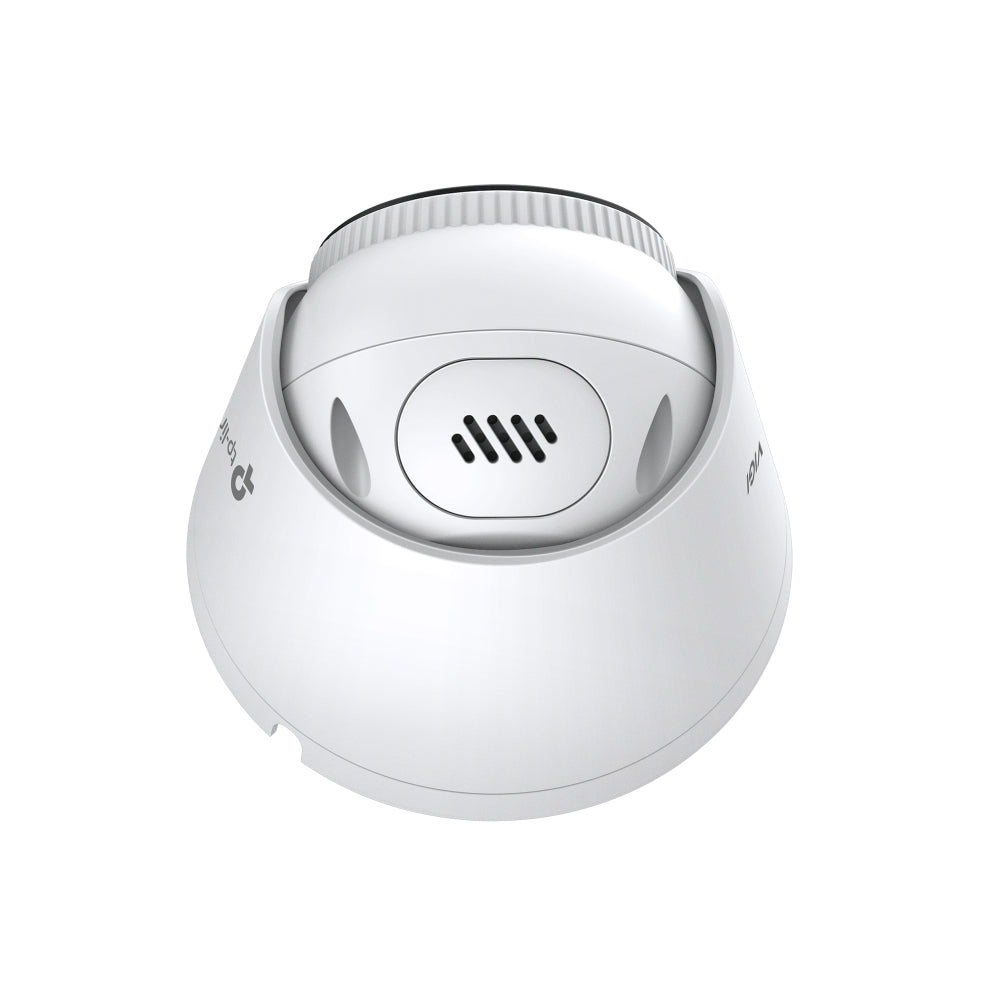

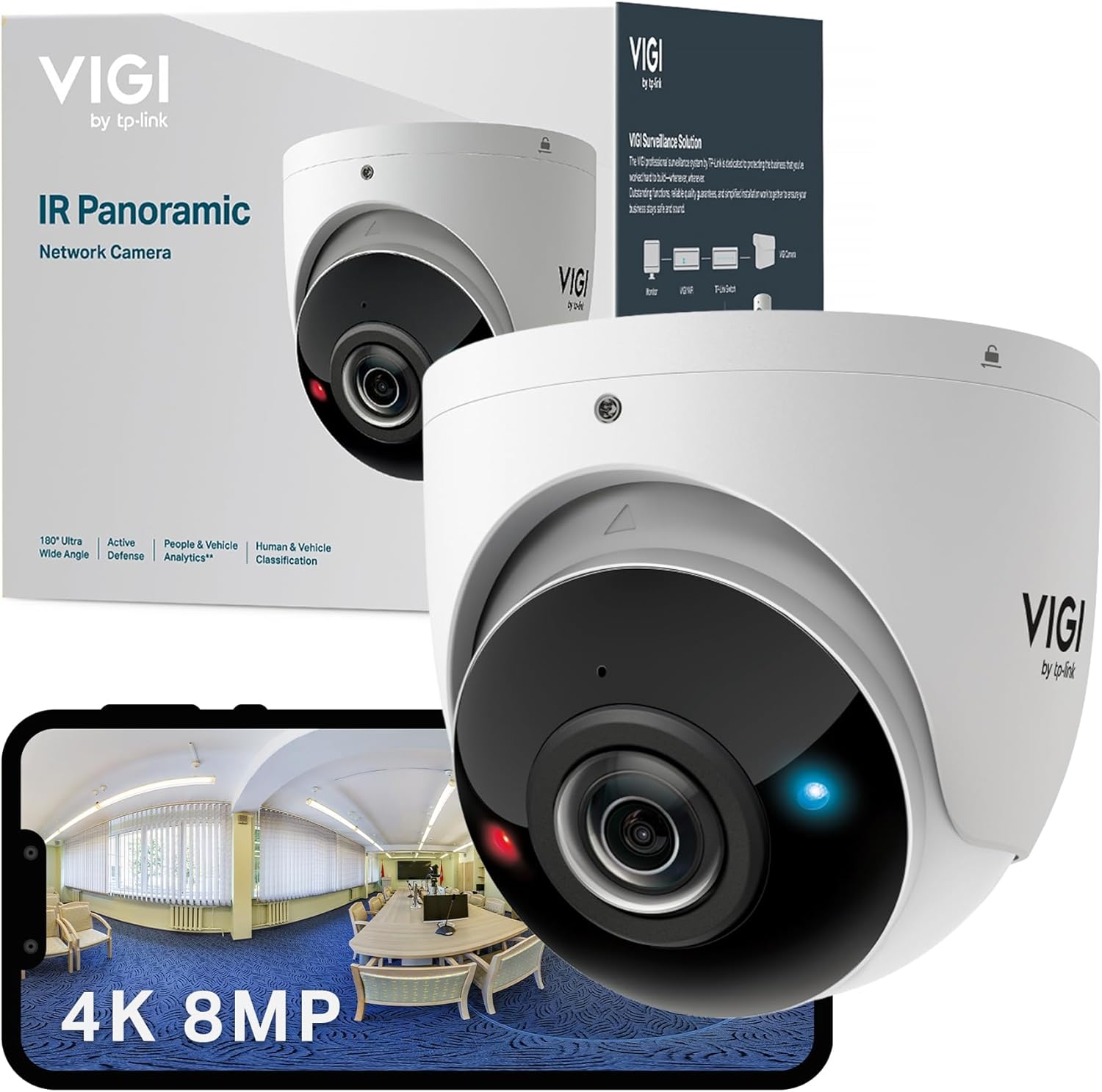

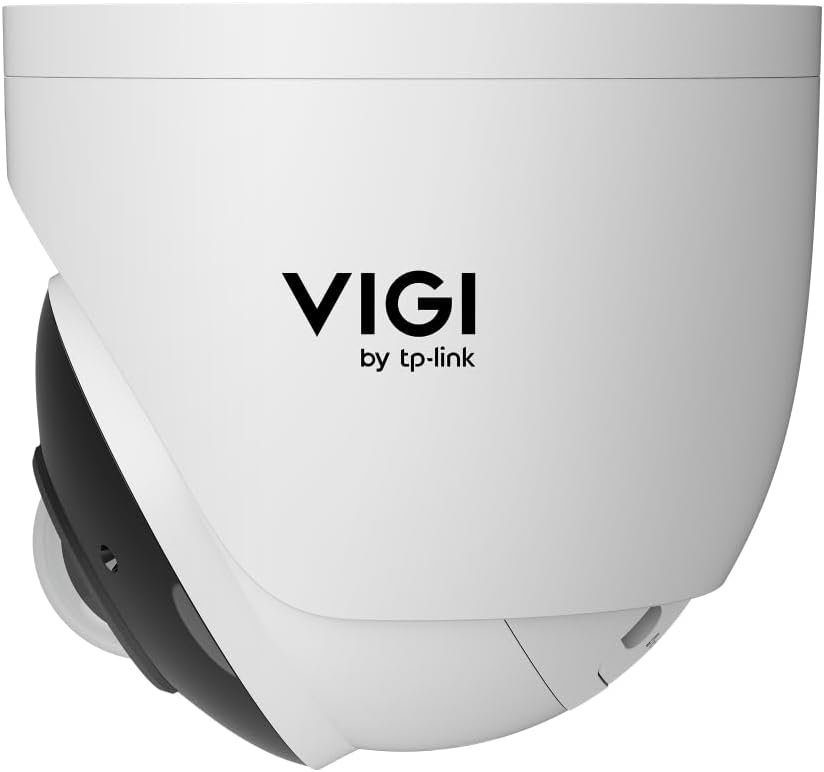

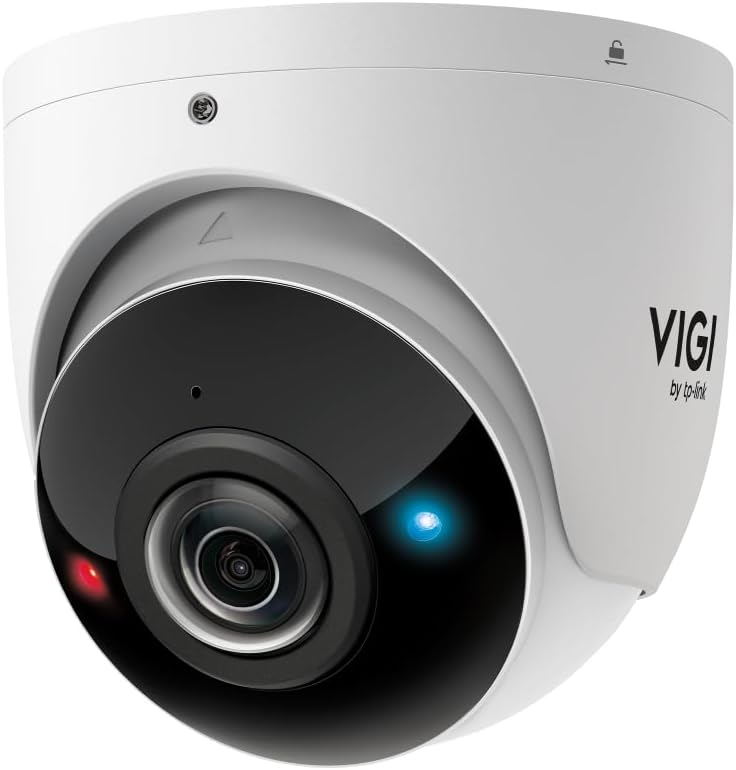

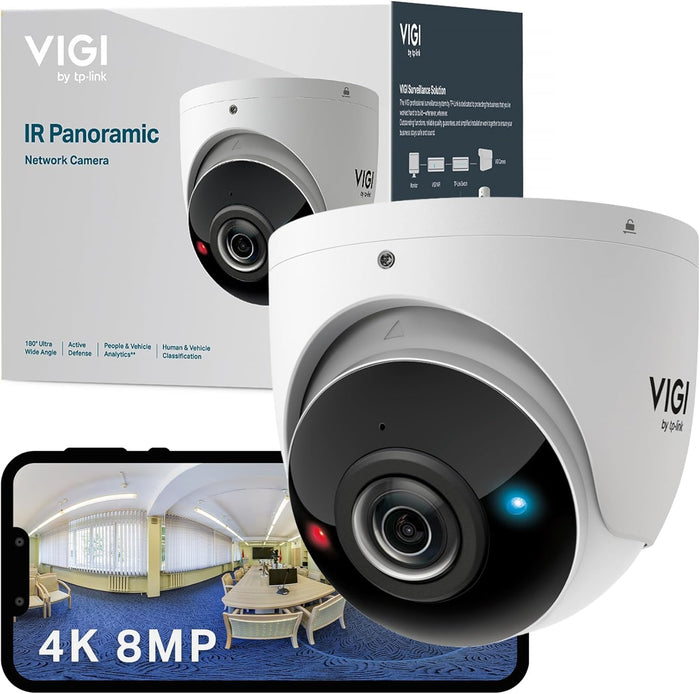

VIGI 8MP IR PANO TURRET NETWORK CAMERA

The VIGI 8MP Full-Color Turret Network Camera delivers ultra-clear 4K surveillance with vibrant, true-color images day and night. Equipped with advanced white-light illumination, smart human and vehicle detection, and wide dynamic range, it ensures accurate monitoring in all lighting conditions. Its durable IP67 metal housing makes it ideal for reliable indoor and outdoor security applications

CAMERA

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000 s
• Slow Shutter: Yes
• Minimum Illumination: 0.005 Lux; 0 Lux with IR/White light
• Day/Night Mechanism: IR Cut Filter
• Day/Night Switch: Unified / Scheduled / Auto

LENS

• Type: Fixed Focal Lens
• Focal Length: 2.8 mm / 4 mm
• Aperture: F1.6
• Field of View:
  • 2.8 mm – H: 111.4°, V: 58.8°, D: 134°
  • 4 mm – H: 91.5°, V: 46.1°, D: 109.6°
• Lens Mount: M12 × P0.5

DORI DISTANCE

• 2.8 mm: Detect 85 m | Observe 35 m | Recognize 17 m | Identify 8 m
• 4 mm: Detect 107 m | Observe 44 m | Recognize 21 m | Identify 11 m

ANGLE ADJUSTMENT

• Pan: 0°–360°
• Tilt: 0°–85°
• Rotation: 0°–360°

ILLUMINATOR

• IR LEDs: 4 LEDs, 850 nm, up to 30 m
• White LEDs: 4 LEDs, up to 30 m
• Control: Auto / Scheduled / Always On / Always Off

VIDEO

• Max Resolution: 3840 × 2160 (4K)
• Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: Up to 25 fps (20 fps with rotation or 120 dB WDR enabled)
• Bit Rate: Main Stream 256 Kbps–6 Mbps | Sub Stream 64–512 Kbps


• 120 dB True WDR
• BLC / 3D DNR / HLC / SmartIR
• Privacy Mask: Up to 4 zones
• ROI: 1 region

AUDIO

• Two-way audio with built-in microphone & speaker
• Audio Compression: G.711 alaw
• Sampling Rate: 8 kHz
• Noise Filtering: Supported

NETWORK

• Protocols: TCP/IP, HTTP/HTTPS, RTSP, ONVIF Profile S
• Clients: VIGI App, VIGI VMS, Web UI
• Cloud Support: Yes
• Security: HTTPS, IP Filter, Password Protection

SMART EVENTS

• Human & Vehicle Classification
• Intrusion, Line-Crossing, Region Entry/Exit
• People & Vehicle Detection
• Motion & Tampering Detection

INTERFACES

• 1 × RJ45 10/100 Mbps Ethernet (PoE)

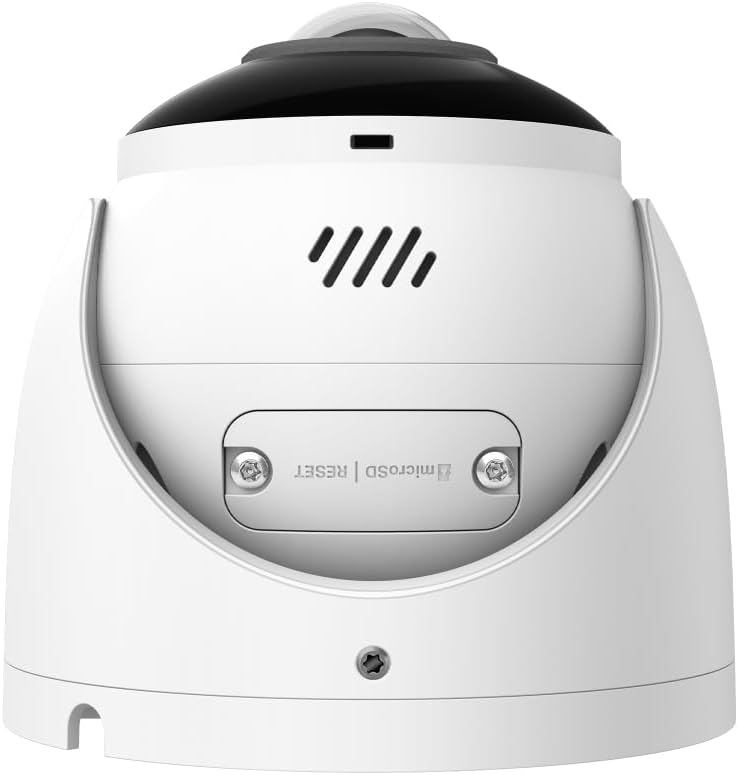

• MicroSD Slot: Up to 256 GB
• Reset Button: Yes

GENERAL

• Power: 12V DC ±5% / PoE 802.3af/at
• Max Power Consumption: 12.5 W
• Protection: IP67
• Material: Metal
• Operating Temp: -30°C to 60°C
• Dimensions: 111 × 111 × 83.7 mm
• Weight: 0.48 kg
