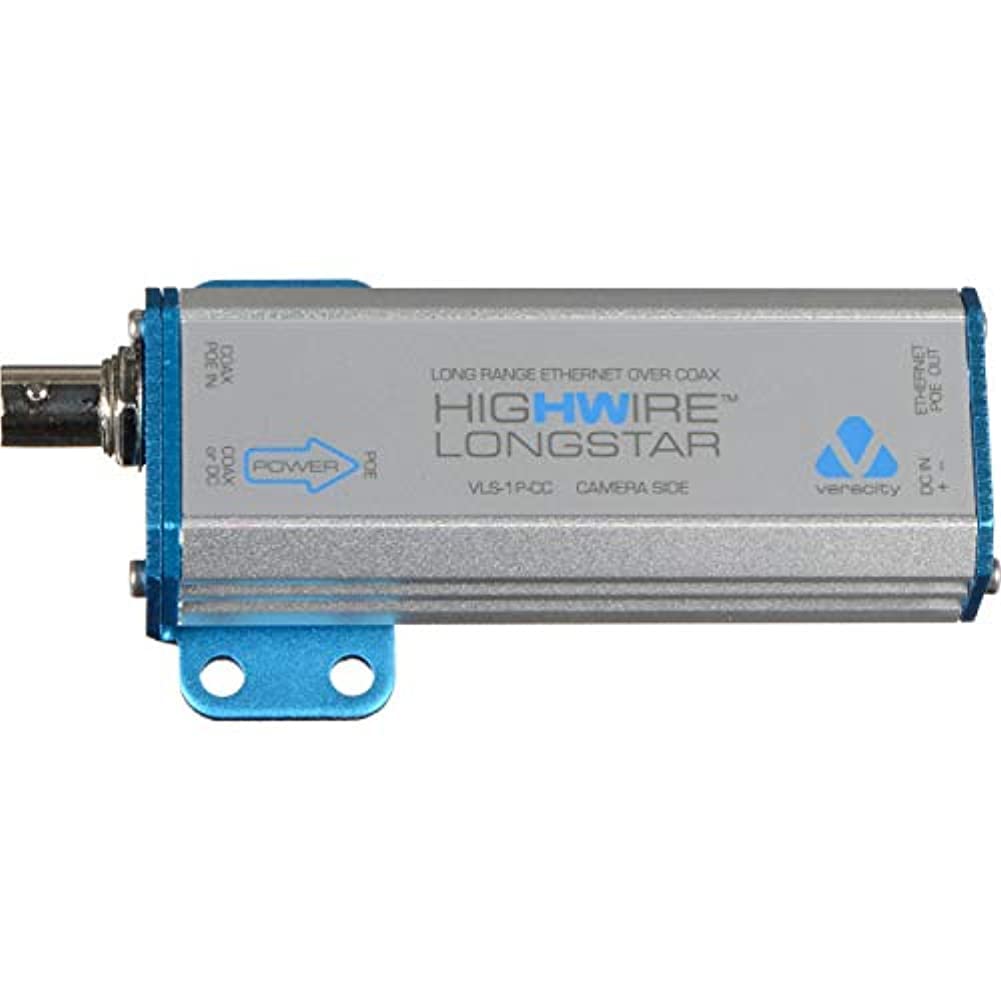

VERACITY VLS-1P-CC

Name: VERACITY VLS-1P-CC
Brand: VERACITY
SKU: VLS-1P-CC
Price: 301.15 GBP
Availability: InStock

£301.15 GBP

£301.15 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Cable range up to 200 metres
Up to 25W PoE

In stock, 5 units

EAN: 892314002562

SKU: VLS-1P-CC

Vendor: VERACITY

Order within xx hours for delivery on

Product Specification

Environment: Indoor
Connections: 10/100 RJ-45 Ethernet connection
Power Output: IEEE 802.3af (POE) or IEEE 802.3at (POE Plus)
Power Consumption: 1.0W
Dimensions: 115mm x 55mm x 27mm (including mounting brackets)
Weight: 112g
Mounting Methods: Lugs attached for wall mounting; rack mountable with kit (VLS-1U)
Operating Temperatures: -40 to 70°C

Box Content

VERACITY VLS-1P-CC

Documents

Datasheet

Technical Features

Transmission Range: Provides reliable transmission of data and power at a distance of up to 1.4km
Power Supply: Powered by network connection – no localised power supply required
Cabling: Uses existing coax cabling – reducing installation costs
Status Indicators: SafeView LEDs give an instant indication of power status
Rack-Mounting: Up to 24 units can be rack-mounted using an additional mounting kit – ideal for large installations

VERACITY VLS-1P-CC

£301.15 GBP

£301.15 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The Veracity Longstar network extender uses existing coaxial cabling to transmit data and power over distances up to 1.4km. A Veracity PSU power supply can be connected (selectable from the dropdown menu) or the unit can connect to PoE or PoE+, receiving power through the network connection. As this unit makes use of coax cabling, rewiring is not required – allowing for cost-effective and straightforward integration. Power status can also be easily checked using the SafeView LEDs. Furthermore, up to 24 Longstar units can be rack-mounted using the Veracity 1U kit (sold separately) – ideal for large installations requiring multiple units.
