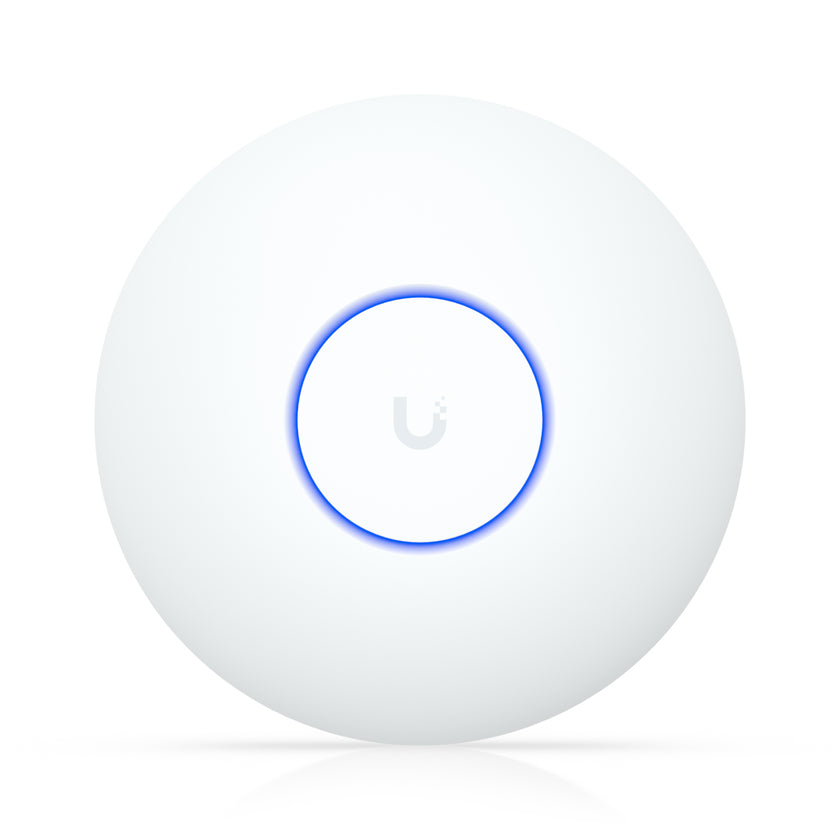

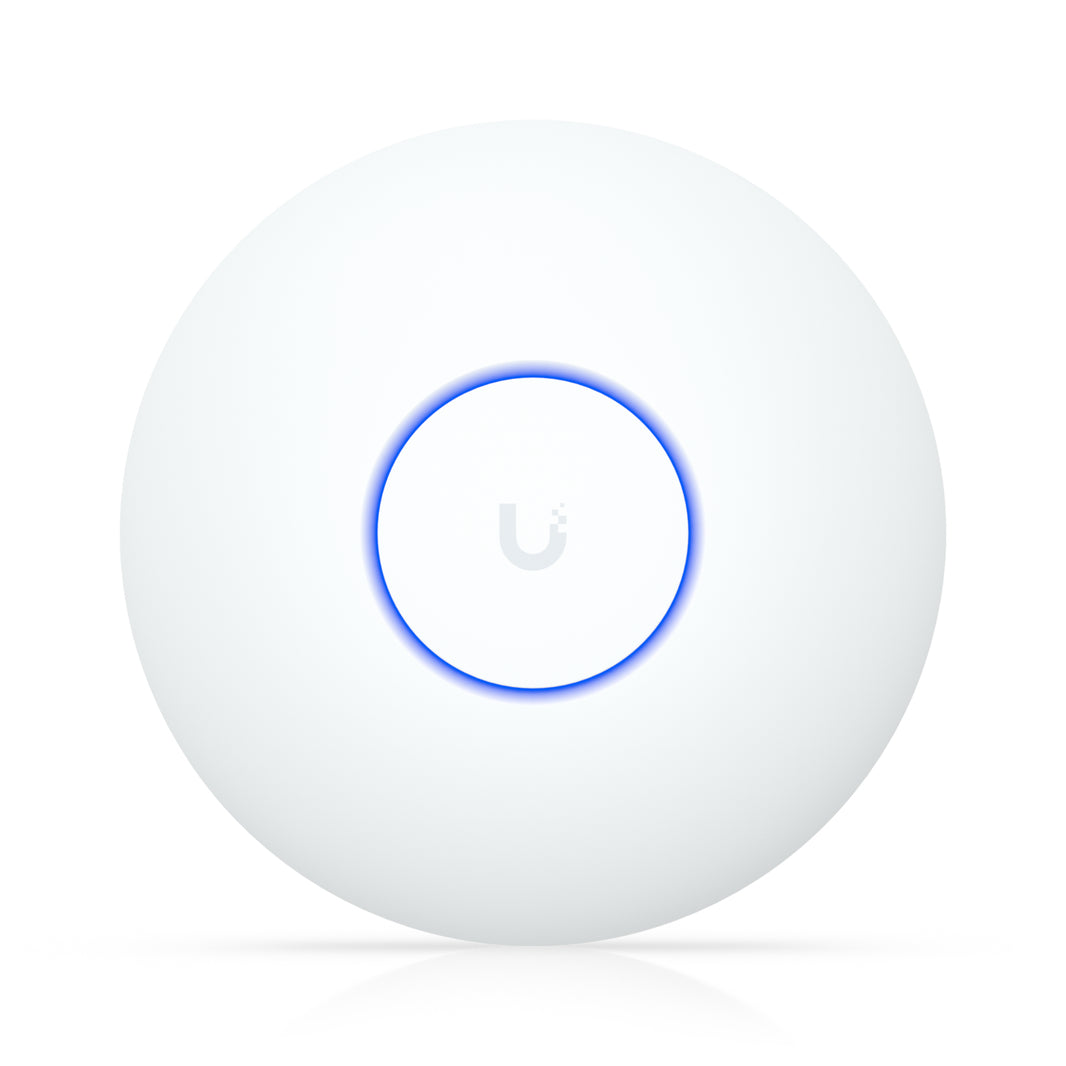

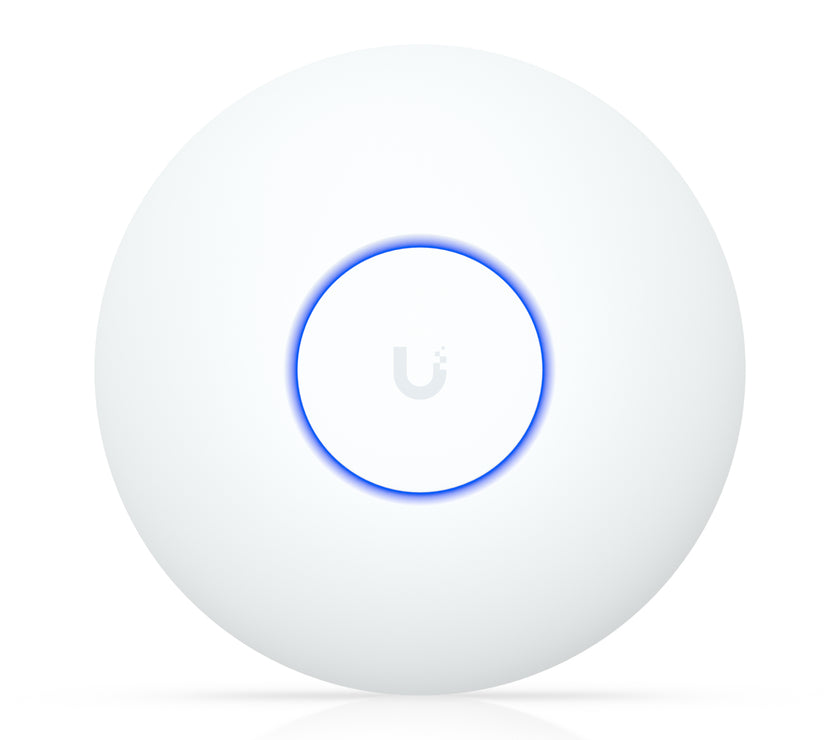

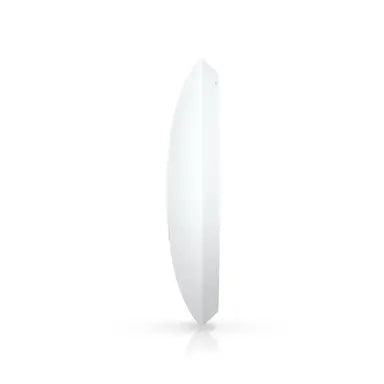

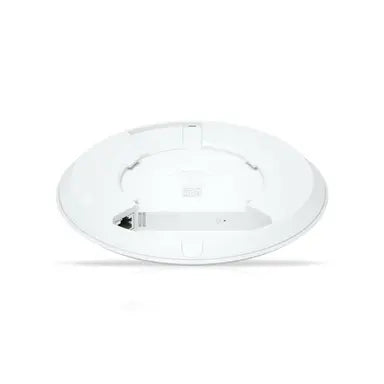

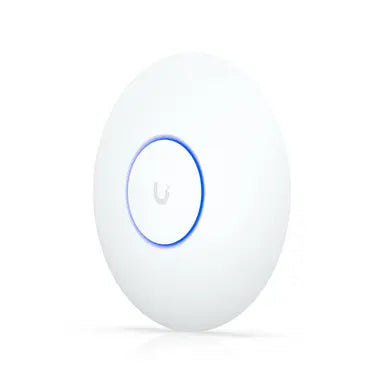

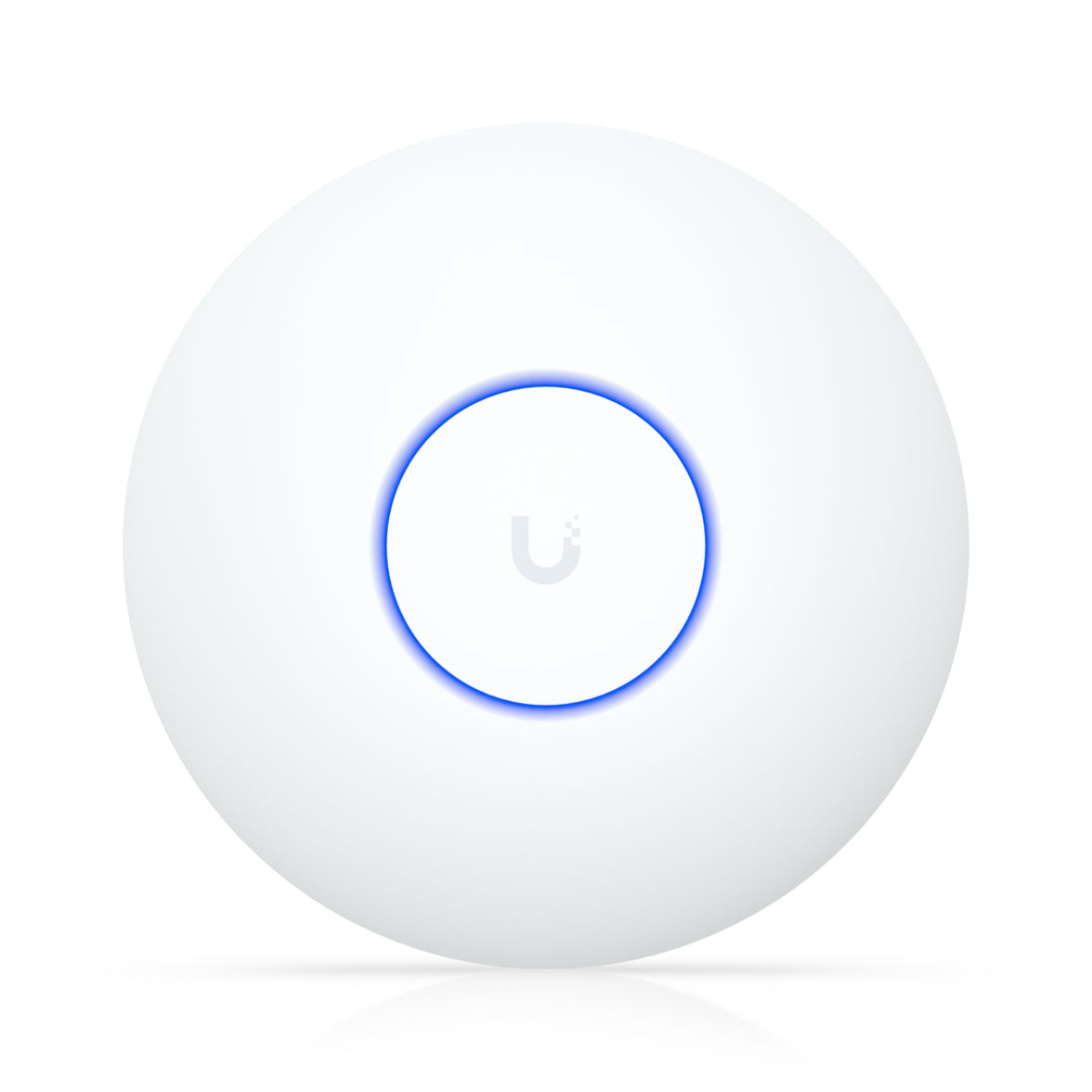

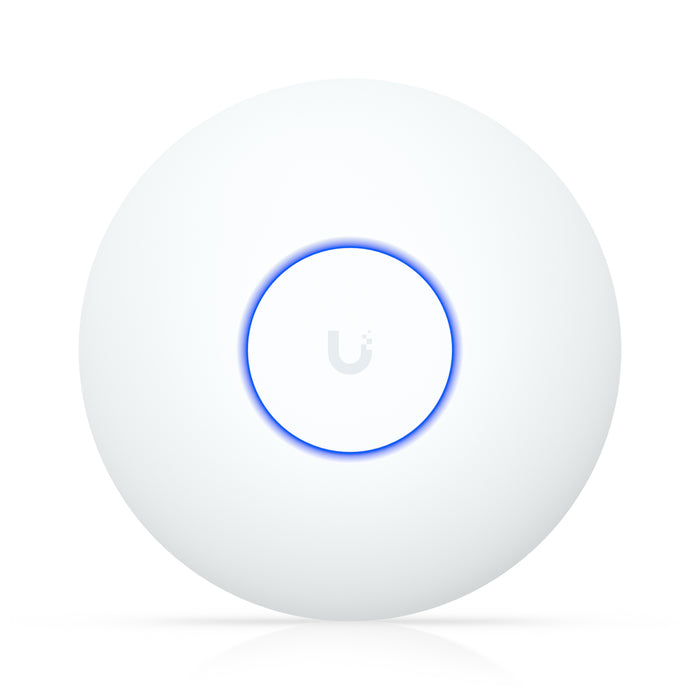

Ubiquiti UniFi U7 Lite - Radio access point - Wi-Fi 7 - Wi-Fi 7 - 2.4 GHz 5 GHz - wall ceiling mountable

Ubiquiti UniFi U7 Lite - Radio access point - Wi-Fi 7 - Wi-Fi 7 - 2.4 GHz 5 GHz - wall ceiling mountable

£89.34 GBP
Sale price: £89.34 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Wireless Meshing
  • WiFi Scheduling
  • Fast Roaming
    • In stock, 188 units
    EAN: 810084698747
    SKU: U7-LITE
    Vendor: Ubiquiti
    Order within xx hours for delivery on
    Quantity
    • WiFi Standard: WiFi 7 with 6 GHz support
    • Spatial Streams: 6
    • Coverage: Up to 140 m (1,500 ft)
    • Connected Devices: Supports 300+ concurrent connections
    • Power Method: PoE+
    • Uplink: 2.5 GbE
    • Ubiquiti UniFi U7 Pro Wifi 7 Access Point
    • Mounting Plate
    • Hardware Kit

    Datasheet

    Overview

    The Ubiquiti UniFi U7-LITE is a WiFi 7 (802.11be) dual-band access point, capable of delivering an aggregate wireless speed of up to 4988Mbps across the 2.4 and 5GHz bands, and able to support over 200 simultaneously connected devices over an area of 115 m² (1,250 ft²). Like all other Ubiquiti APs, the U7-LITE is compatible with the full suite of UniFi wireless and security features to streamline provisioning, monitoring, management and effortless integration into a wider Ubiquiti installation. Ubiquiti's U7-LITE is part of the UniFi WiFi 7 range, offering high-speed wireless connectivity and a wide variety of security, software and management features for both commercial and residential deployments. The U7-LITE is capable of leveraging multiple bands simultaneously to deliver wireless speeds of up to 688Mbps on the 2.4 GHz and 4300Mbps on the 5GHz frequencies, and supports four spatial streams and 2x2 DL/UL MU-MIMO to maximise smooth, buffer-free wireless performance even in the most client-dense installation locations like commercial spaces, office environments, or home offices. The U7-LITE can be either ceiling or wall mounted by virtue of its included mounting kit, ensuring maximum coverage by being mounted high on the wall or on the ceiling.

    Technical Features
    • Enclosure Material: Polycarbonate, metal
    • Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
    • Networking Interface: (1) 1/2.5 GbE RJ45 port
    • Management Interface: Ethernet
    • Power Method: PoE+
    • Power Supply: UniFi PoE switch
    • Supported Voltage Range: 44–57V DC
    • Max Power Consumption: 21W
    • Max TX Power (2.4 GHz): 22 dBm
    • Max TX Power (5 GHz): 26 dBm
    • Max TX Power (6 GHz): 23 dBm
    • MIMO (2.4 GHz): 2 x 2 (DL/UL MU-MIMO)
    • MIMO (5 GHz): 2 x 2 (DL/UL MU-MIMO)
    • MIMO (6 GHz): 2 x 2 (DL/UL MU-MIMO)
    • Max Data Rate (2.4 GHz): 688 Mbps (BW40)
    • Max Data Rate (5 GHz): 4.3 Gbps (BW240)
    • Max Data Rate (6 GHz): 5.7 Gbps (BW320)
    • Antenna Gain (2.4 GHz): 4 dBi
    • Antenna Gain (5 GHz): 6 dBi
    • Antenna Gain (6 GHz): 5.8 dBi
    • LEDs: White/blue
