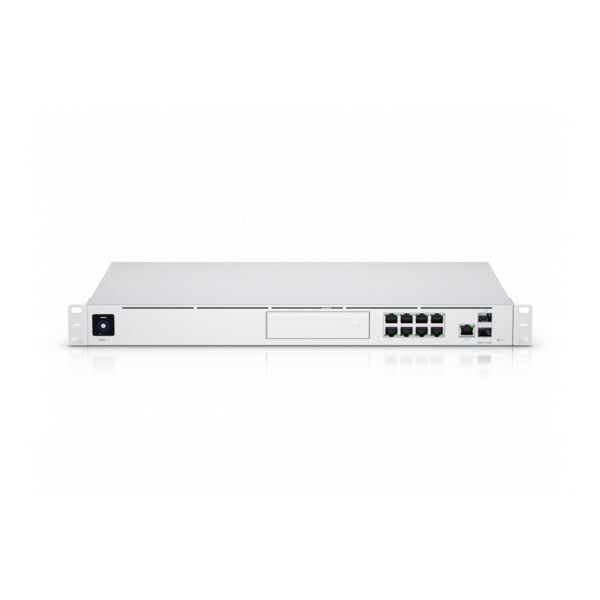

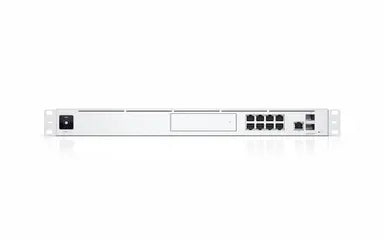

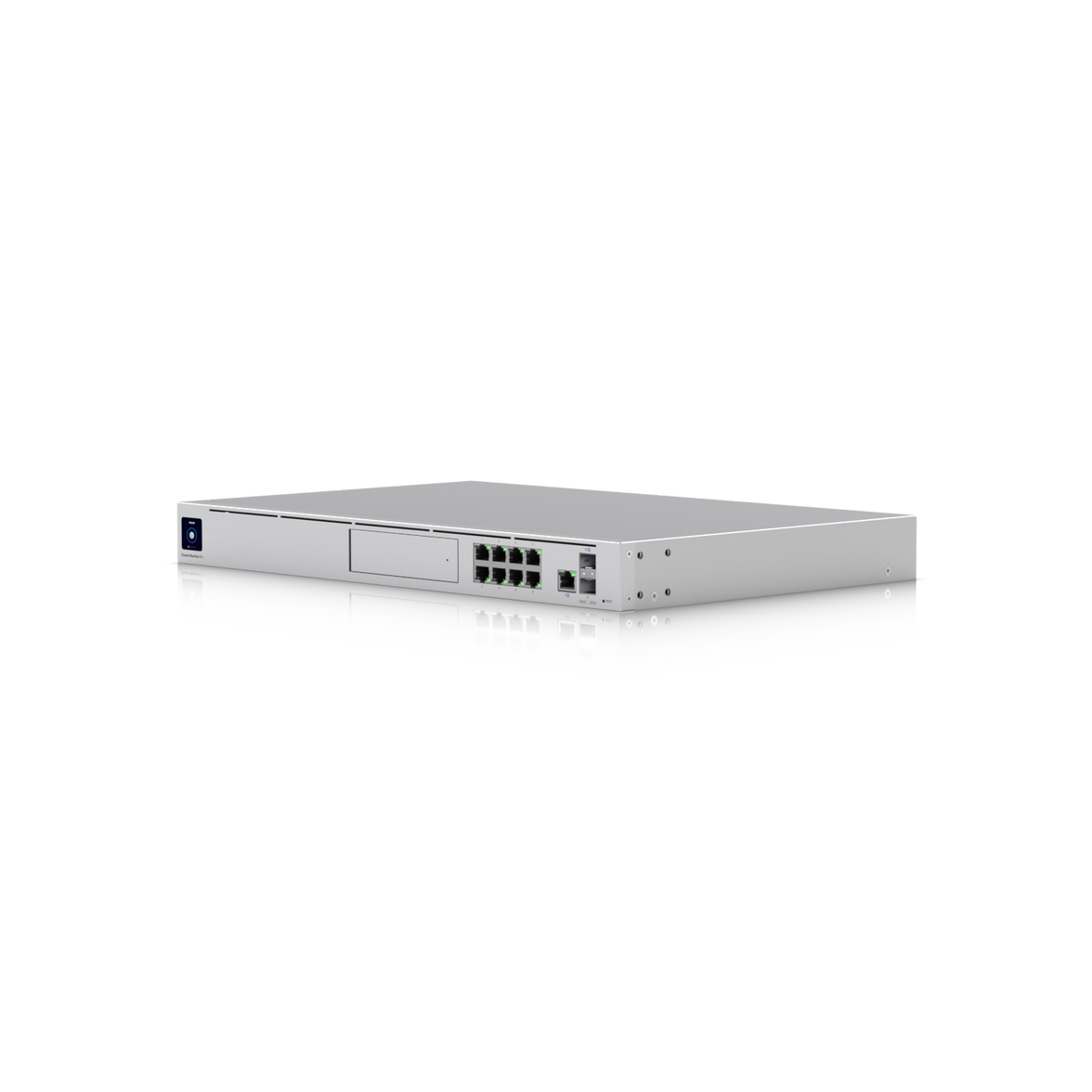

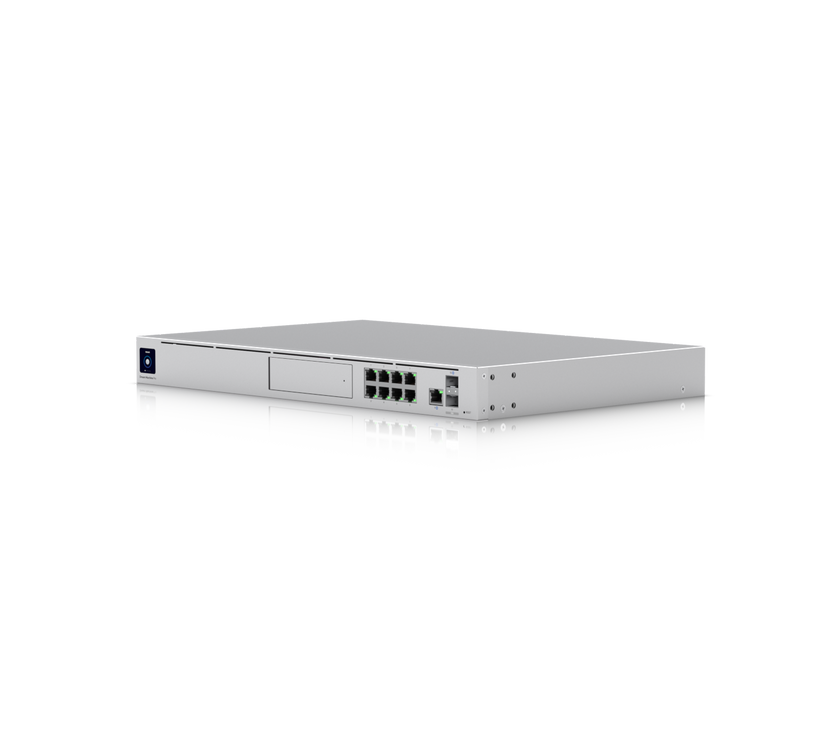

Ubiquiti UniFi Dream Machine Pro Managed Gigabit Ethernet (10/100/1000) White

Ubiquiti UniFi Dream Machine Pro Managed Gigabit Ethernet (10/100/1000) White

£364.13 GBP
Sale price: £364.13 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • UniFi OS application
  • 8-port switch
  • Enterprise-class internet
    • In stock, 10 units
    EAN: 817882027373
    SKU: UDM-PRO
    Vendor: Ubiquiti
    Order within xx hours for delivery on
    Quantity
    • Dimensions: 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
    • Weight: 3.9 kg (8.6 lb)
    • Enclosure Material: Aluminium CNC, SGCC steel
    • Mount Material: SGCC steel
    • Hardware:
    • Processor: Quad-core ARM® Cortex®-A57 at 1.7 GHz
    • System Memory: 4 GB DDR4
    • On-Board Storage: 16 GB eMMC
    • Management Interface: Ethernet, Bluetooth
    • Networking Interface:
    • LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port
    • WAN: (1) GbE RJ45 port, (1) 10G SFP+ port
    • IDS/IPS Throughput: 3.5 Gbps (measured with iPerf3)
    • Power Method: (1) Universal AC input, 100–240V AC, 50/60 Hz; (1) USP-RPS DC input
    • Power Supply: AC/DC internal, 50W
    • Supported Voltage Range: 100–240V AC
    • Max Power Consumption: 33W
    • ESD/EMP Protection: Air: ±15kV, Contact: ±8kV
    • LCM Display: 1.3" touchscreen
    • Button: Factory reset
    • Operating Temperature: -10° to 40°C (14° to 104°F)
    • Operating Humidity: 5 to 95% noncondensing
    • Certifications: CE, FCC, IC
    • Ubiquiti UniFi Dream Machine Pro
    • (2) Rackmount Brackets
    • (8) Bracket Screws
    • (4) Mounting Screws
    • (4) Cage Nuts
    • Security Screw
    • (4) 2.5" HDD Screws
    • Power Cord
    • (4) Rubber Feet

    Datasheet

    Overview

    The Ubiquiti UniFi Dream Machine Pro (UDM-PRO) is an all-in-one enterprise security gateway and network appliance, suitable for small to medium businesses with larger networks. The UDM-PRO can integrate easily with existing UniFi controllers and any upcoming controllers to meet scalable network requirements. This security gateway features a built-in 8 gigabit port switch with 10G SFP+. The UDM-PRO is an advanced security gateway that is powered by a fast 1.7 GHz quad-core processor. It has the UniFi Network Controller software embedded, providing remote access to help manage the UniFi devices within your network. The UDM-PRO can also run the UniFi Protect software, helping you to monitor and manage your camera surveillance system. The built-in NVR (hard-drive not included) stores video recordings which you can easily access via the UniFi Protect mobile app for remote access viewing.

    Technical Features
    • Interfaces: (8) 10/100/1000 RJ45 LAN ports, (1) 10/100/1000 RJ45 WAN port, (1) 1/10G SFP+ LAN port, (1) 1/10G SFP+ WAN port
    • Management Interfaces: Ethernet In-Band, Bluetooth BLE
    • Operating Environment: Temperature: -10° to 40°C (14° to 104°F); Humidity: 5 to 95% noncondensing
    • Max Power Consumption: 33W
    • Voltage Range: 100 to 240VAC
    • Power Method: Universal AC input, 100-240VAC, 50/60 Hz
    • Redundant Power: RPS DC input
    • Power Supply: Internal 50W / 12V
    • ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
    • IDS/IPS Throughput: 3.5 Gbps
    • Processor: Quad ARM Cortex-A57 core at 1.7 GHz
    • System Memory: 4 GB DDR4
    • On-Board Flash Storage: 16 GB eMMC
