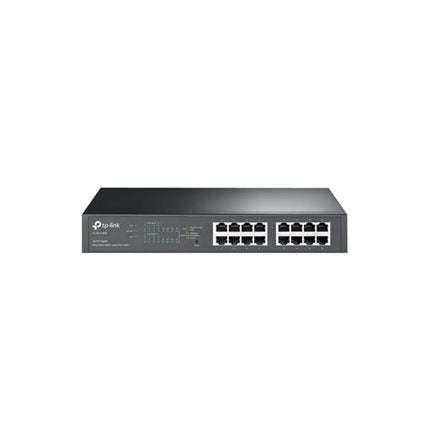

TP-Link TL-SG1016PE - Switch - smart - 8 x 10 100 1000 (PoE ) 8 x 10 100 1000 - desktop rack-mountable - PoE (110 W)

TP-Link TL-SG1016PE - Switch - smart - 8 x 10 100 1000 (PoE ) 8 x 10 100 1000 - desktop rack-mountable - PoE (110 W)

£144.67 GBP
Sale price: £144.67 GBP Regular price: £0.00 GBP
(VAT Incl.)
In stock, 45 units
EAN: 6935364098865
SKU: TL-SG1016PE
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
  • Interface: 16 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
  • Network Media:
    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)

    100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)

    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: 1
  • Physical Security Lock: Yes
  • PoE Ports (RJ45): Standard: 802.3 at (30W), PoE Ports: Port 1 - Port 8, Total PoE Power Budget: 110W
  • Dimensions (W x D x H): 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
  • Mounting: 13" and 19" 1U rack mountable
  • Max. Power Consumption: 14.7W (no PD load), 131.4W (with 110W PD load)
  • Max. Heat Dissipation: 50.2 BTU/h (no PD load), 448.4 BTU/h (with 110W PD load)
  • TL-SG1016PE
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Overview

The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.Robust switching capacityWith a switching capacity of 32 Gbps, the TP-Link TL-SG1016PE ensures efficient data handling, allowing for seamless communication between devices in your network.Flexible power optionsFeaturing PoE+ on 8 of its ports, this switch can deliver both data and power through a single cable, simplifying installation for powered devices.Advanced network managementThe switch supports features like VLANs, IGMP snooping, and QoS to manage network traffic, enhance security, and optimize performance.Reliable environmental resilienceDesigned to operate in a wide temperature range from 0°C to 40°C, with storage capabilities down to -40°C, this switch performs reliably in various environments.Easy installation and setupThe TP-Link TL-SG1016PE is both desktop and rack-mountable, providing flexibility in deployment options to suit different workspace layouts.

Technical Features
  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 110W, up to 30W per port
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
