TP-LINK SG2206MP

TP-LINK SG2206MP

£74.10 GBP
Sale price: £74.10 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Durable metal casing
  • 63W total PoE
In stock, 12 units
EAN: 1210002602419
SKU: SG2206MP
Vendor: TP-LINK
Order within xx hours for delivery on
Quantity

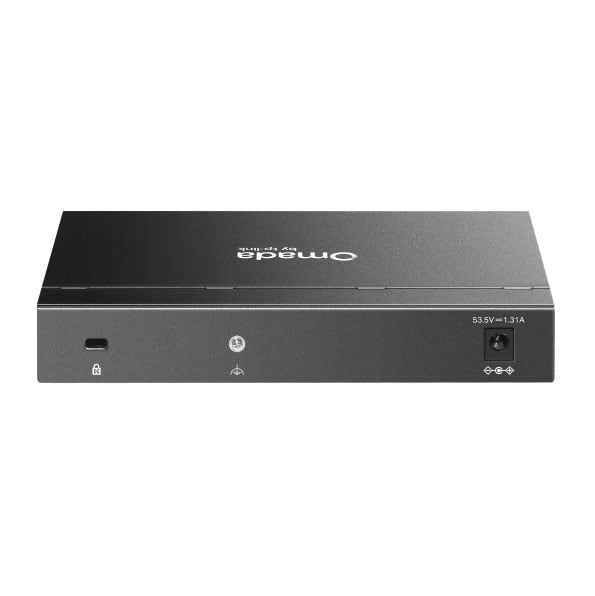

  • Power Supply: 53.5 VDC / 1.31 A
  • Standby Power Consumption: 2.8 W (110V/60Hz)
  • Max Power Consumption: 73.7 W (110V/60Hz) (with 63 W PD connected)
  • Max Heat Dissipation: 250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)
  • MTBF: 668365 h @ 25°C
  • Dimensions (W x D x H): 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
  • Fan Quantity: Fanless
  • Installation: Desktop / Wall Mounting
  • Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F)
  • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  • Operation Humidity: 10% to 90% RH, non-condensing
  • Switch
  • Installation Guide
  • Rubber Feet
  • Power Adapter

Datasheet

Overview

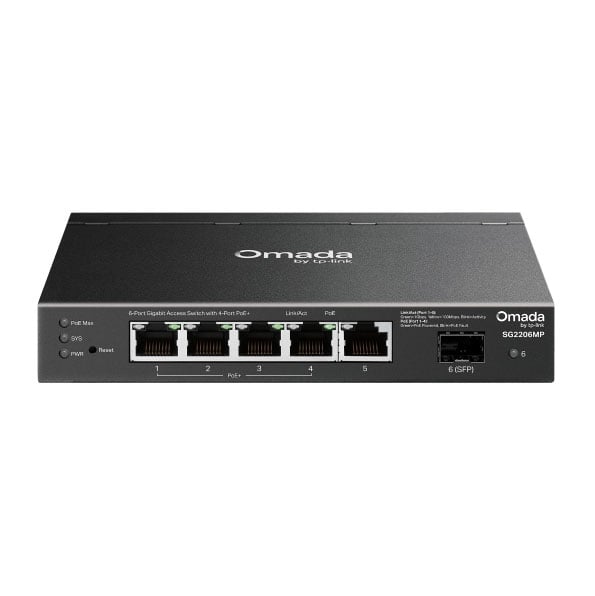

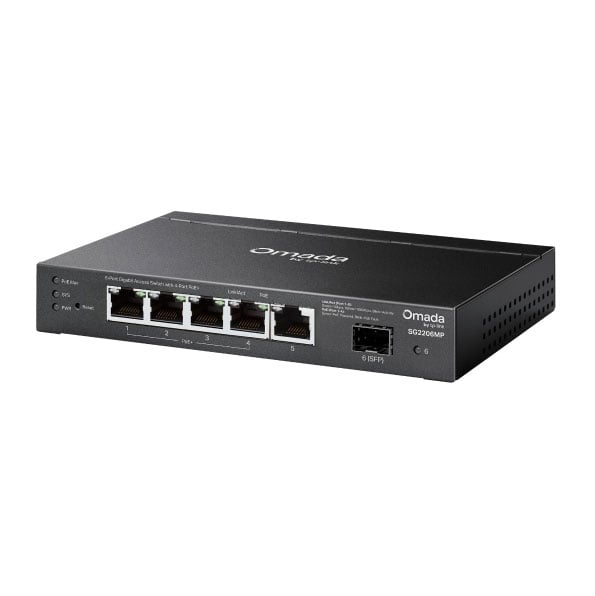

The TP-Link Omada SG2206MP is a 6-port managed Gigabit switch with 4 PoE+ ports and a 1 Gigabit SFP port, designed for small to medium-sized businesses. It features a total 63W PoE budget, supports centralized management through the Omada app or web interface, and offers standalone management options.

Technical Features
  • Ports: 5× Gigabit RJ45 (4× PoE+) and 1× Gigabit SFP slot
  • PoE Budget: 63W total, up to 30W per PoE+ port*
  • Cloud Management: Centralized control via web or Omada app†
  • Standalone Management: Web, CLI, SNMP, RMON
  • Static Routing: Improves internal traffic efficiency
  • Advanced Features: VLAN, ACL, QoS, IGMP Snooping
  • Design: Durable metal casing with desktop/wall-mount options
