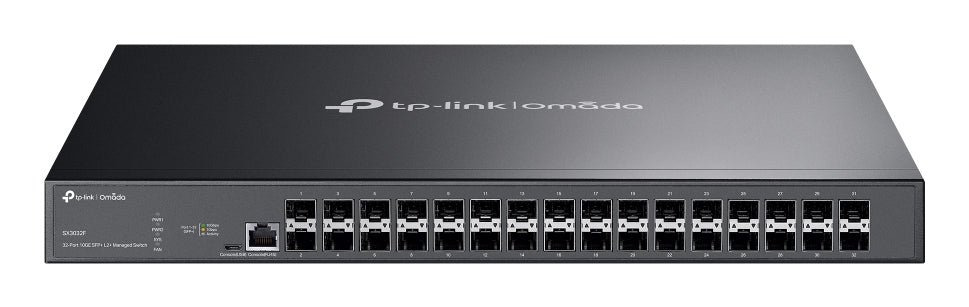

TP-LINK OMADA 32PT 10GE SFP+L2 MAN SWTCH

Name: TP-LINK OMADA 32PT 10GE SFP+L2 MAN SWTCH
Brand: TP-Link
SKU: SX3032F
Price: 663.95 GBP
Availability: InStock

£663.95 GBP

£663.95 GBP ~~Regular price:~~

(VAT Excl.)

Shipping calculated at checkout.

In stock, 7 units

EAN: 4895252504484

SKU: SX3032F

Vendor: TP-Link

Order within xx hours for delivery on

Management features

ARP inspection	Yes
Switch type	Managed
Quality of Service (QoS) support	Yes
Multicast support	Yes
MIB support	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB
Switch layer	L2+
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	1
Installed SFP+ modules quantity	0
Console port	RJ-45/Micro-USB

Network

Networking standards	IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Number of VLANs	30
Link aggregation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Virtual LAN features	Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN
IPv6 routes	48
IPv4 routes	48
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes

Data transmission

Jumbo frames	9
Number of static routes	128
Number of IP interfaces	128
Packet buffer memory	24 MB
MAC address table	32000 entries
Switching capacity	640 Gbit/s
Number of queues	8
Jumbo frames support	Yes
Static route	Yes
Forwarding rate	240 Mpps
Number of multicast groups filtered	4000
Multicast Listener Discovery (MLD) snooping	Yes

Security

Loop protection	Yes
IP-MAC-Port binding	Yes
Authentication	MAC-based authentication, Port-based authentication
Static port security	Yes
SSH/SSL support	Yes
Access Control List (ACL)	Yes
Queue scheduling algorithms	Priority queuing (PQ), SP, Weighted Round Robin (WRR)
Password protection	Yes
Authentication type	AAA, TACACS+
DHCP features	DHCP relay, DHCP server, DHCPv6 snooping

Protocols

IPv4 & IPv6 features	Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP
IP Source Guard (IPSG)	Yes

Design

Product colour	Black
Stackable	No
Rack mounting	Yes
Number of fans	2 fan(s)
Redundant fans support	Yes

Power

Power consumption (max)	49.4 W
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power source	AC

Operational conditions

Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Width	440 mm
Depth	330 mm
Height	44 mm

Packaging content

Quick start guide	Yes
Cables included	Power

Technical details

Compliance certificates	CE, Federal Communications Commission (FCC), RoHS

TP-LINK OMADA 32PT 10GE SFP+L2 MAN SWTCH

£663.95 GBP

£663.95 GBP ~~Regular price:~~

(VAT Excl.)

In stock

Overview

The TP-Link Omada SX3032F V1 is a versatile Networking switch designed to accommodate a variety of settings with its powerful performance and robust features. With a switching capacity of 640 Gbps and a packet forwarding rate of 476.16 Mpps, this switch ensures efficient data handling necessary for modern demands. Its capacity includes support for 1000 static routes, 4000 IGMP groups, and 256 MAC addresses per port, making it ideal for accommodating high-traffic environments. The switch is equipped with 32 ports supporting 10GBase-X, providing the reliability needed for seamless connections. Operational flexibility is enhanced through its extensive range of Networking features, including VLAN support, QoS for better bandwidth management, and advanced security options like RADIUS and TACACS+ authentication methods. Designed for easy customization and management, the SX3032F offers remote management options through various protocols, ensuring administrators can configure and monitor the network with ease. Its durable metal housing and included rack mounting kit make it suitable for a range of installations, from data centers to enterprise networks.
