TE820F

TE820F

£1,897.58 GBP
Sale price: £1,897.58 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Up To Eight (8) T1, E1 or J1 interfaces*
Out of stock
EAN: 797734601375
SKU: TE820F
Vendor: Digium
Order within xx hours for delivery on
Quantity
  • Up To Eight (8) T1, E1 or J1 interfaces*
  • Up to 192 (T1/J1) or 240 (E1) simultaneous calls
  • Interfaces are software selectable (T1, E1 or J1 Mode)
  • Half-length, full-height PCI-Express card
  • Optional 128ms hardware echo cancellation module
  • *4 RJ-45 connectors, each supporting two circuits. Break-out dongles are included.
  • TE820F Card
  • Break-out Dongles
  • Documentation

datasheet

Overview

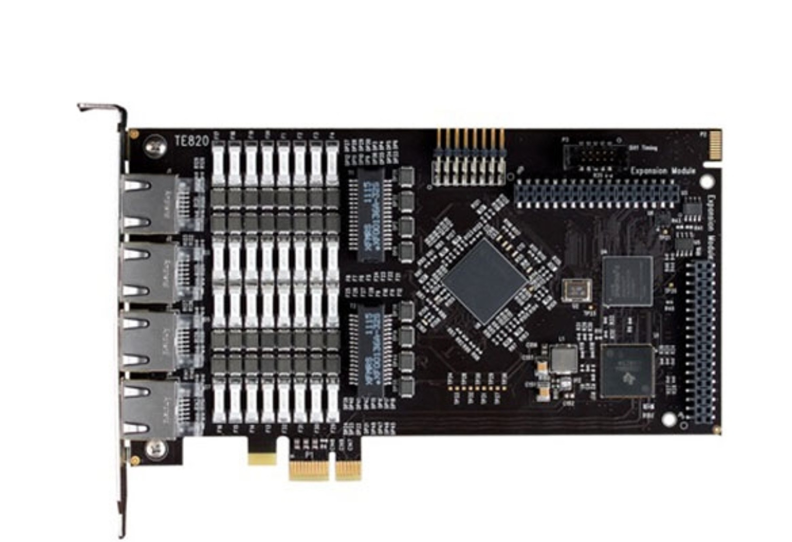

Digium Wildcard TE820 PCI Express ISDN PRI Card (1TE820F) includes eight independently software-selectable digital telephony interfaces, supporting up to 192 channels (in T1/J1 mode) or 240 channels (in E1 mode) — the highest single-card port density avail-able for use with Asterisk. The TE820 seamlessly interconnects traditional telephony systems with Voice over IP (VoIP) technologies at the lowest per-port price on the market today.

Technical Features
  • Enterprise Systems
    • Enterprise Phone Systems
    • Enterprise IVR Servers
    • High-density VoIP gateway systems
    • High-density conferencing systems
    • Carrier media server platforms
  • Framing Types
    • Superframe (D4)
    • Extended Superframe (ESF)
    • Channel Associated Signaling (CAS)
    • Common Channel Signaling (CCS)
  • Coding Types
    • Alternative Mark Inversion (AMI)
    • Bipolar with Eight (8) Zero Substitution (B8ZS)
    • High Density Bipolar Order Three (HDB3) with optional CRC4
  • PRI Switch Compatibility
    • EuroISDN (PRI or PRA) — Q.931/Q.921
    • AT&T 4ESS Network or CPE
    • DMS 100 National ISDN 2
    • Lucent 5E CAS Voice Modes
  • Warranty
    • 5-year parts and labor
    • Exceptional Satisfaction Policy
  • Production Quality
    • ISO 9001 Certified
